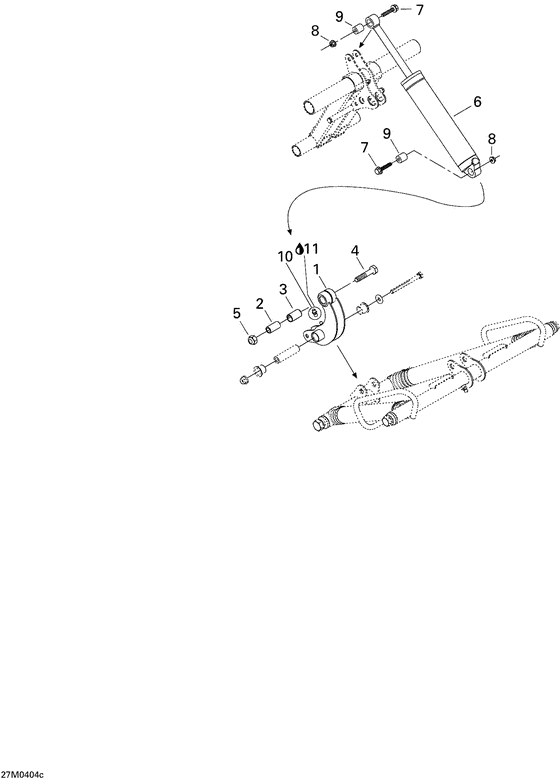

08- rear shock Diagram Bombardier Legend
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503189845
Culbuteur peint*rocker-paint
|
503189845 |
— | ||
|
2
|
2
503189388
Axe de culbut. *axle-rocker
|
503189388 |
— | ||
|
3
|
3
503189626 Coussinet *cushion |
503189626 |
US $3.18 |
||
|
4
|
4
207005044 Screw-hex.cap iso.4014 |
207005044 |
US $38.90 |
||
|
5
|
5
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
6
|
6
503190007
Amort.arr. *rear shock
|
503190007 |
— | ||
|
7
|
7
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
8
|
8
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
9
|
9
414936000 Coussinet *cushion |
414936000 |
US $14.25 |
||
|
10
|
10
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
11
|
11
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— |
