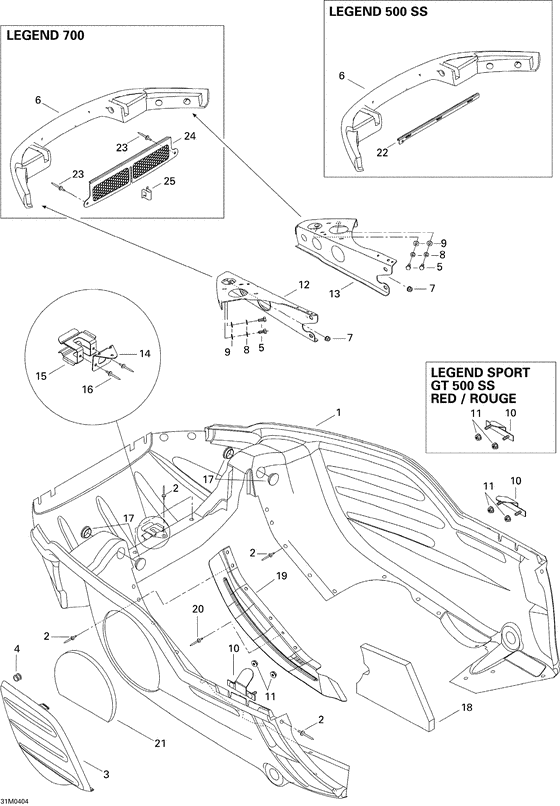

09- bottom pan Diagram Bombardier Legend
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
502006645
Attache soudee *bracket-weld
LEGEND SPORT GT 500SS RED; |
502006645 |
— | ||
|
|
502006685
Att.soudee dr. *brkt weld rh
LEGEND SPORT GT 500SS RED; |
502006685 |
— | ||
|
1
|
1
502006633
Coque *pan-bottom
BLACK; |
502006633 |
— | ||
|
2
|
2
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
3
|
3
502006506 Porte coque *door-pan bot. |
502006506 |
US $30.57 |
||
|
4
|
4
414036300 Passe-fils *grommet |
414036300 |
US $17.70 |
||
|
5
|
5
207161444 Screw-hex.cap din.933 |
207161444 |
US $7.50 |
||
|
6
|
6
502006719 Pare-choc noir *bumper-blackBLACK; |
502006719 |
US $112.37 |
||
|
7
|
7
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
8
|
8
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
9
|
9
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
10
|
10
502006645
Attache soudee *bracket-weld
|
502006645 |
— | ||
|
11
|
11
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
12
|
12
502006597 Support gauche *lh.support |
502006597 |
US $34.65 |
||
|
13
|
13
502006602 Support droit *support-rh |
502006602 |
US $34.65 |
||
|
14
|
14
502006599
Support courr. *support-belt paint
|
502006599 |
— | ||
|
15
|
15
517281905 Attache *bracket |
517281905 |
US $15.27 |
||
|
16
|
16
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
17
|
17
414916600 Capuchon nylon *plug-nylon |
414916600 |
US $58.70 |
||
|
18
|
18
502006558
Mousse coque *foam-bot. pan
|
502006558 |
— | ||
|
19
|
19
502006593
Protecteur coq.*bottom-pan
700 / WITH GRILL; |
502006593 |
— | ||
|
20
|
20
390402200 Rivet-pop 3/16 *rivet-pop 3/16700 / WITH GRILL; |
390402200 |
US $22 |
||
|
21
|
21
502006559
Mousse porte *foam-door
|
502006559 |
— | ||
|
22
|
22
502006647
Renfort coque *reinf-pan bottom
500 SS / WITHOUT GRILL; |
502006647 |
— | ||
|
23
|
23
293150103 Pop rivet 3/16700 / WITH GRILL; |
293150103 |
US $18.25 |
||
|
24
|
24
502006697
Grille cent.p. *grill-cent.paint
700 / WITH GRILL; |
502006697 |
— | ||
|
25
|
25
517302785 Pince *clip700 / WITH GRILL; |
517302785 |
US $11.70 |
