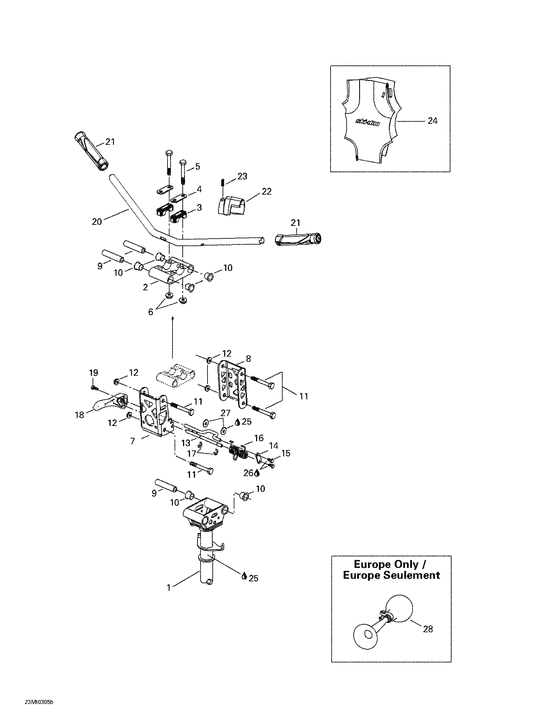

07- handle bar - adjustable Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
506151429
Arbre dir.peint*tube-main paint
|
506151429 |
— | ||
|
2
|
2
506151147
Bride usinee *clamp-mach.
|
506151147 |
— | ||
|
3
|
3
506151622
Support guidon *steering support
|
506151622 |
— | ||
|
4
|
4
506151196
Renfort *reiforcement
|
506151196 |
— | ||
|
5
|
5
207086044 Screw-hex.cap din.931 |
207086044 |
US $21.30 |
||
|
6
|
6
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
7
|
7
506151156 Bras avant *arm-front |
506151156 |
US $9.13 |
||
|
8
|
8
506151152
Bras arriere *arm-rear
|
506151152 |
— | ||
|
9
|
9
506151146
Entretoise *spacer
|
506151146 |
— | ||
|
10
|
10
506151153
Coussinet *cushion
|
506151153 |
— | ||
|
11
|
11
207688044 Screw-hex.flange din.6921 |
207688044 |
US $7 |
||
|
12
|
12
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
13
|
13
506151162
Barrure soudee *lock-weld.
|
506151162 |
— | ||
|
14
|
14
506151240
Plaque *plate
|
506151240 |
— | ||
|
15
|
15
207141044 Screw-hex.cap din.933 |
207141044 |
US $19.60 |
||
|
16
|
16
506151219 Ressort *spring |
506151219 |
US $11.73 |
||
|
17
|
17
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
18
|
18
506151188 Manette *handle |
506151188 |
US $12.19 |
||
|
19
|
19
205041284 Screw-socket hd.din.912 gm6174m |
205041284 |
US $19.60 |
||
|
20
|
20
506151685 Guidon peint *handle bar paint |
506151685 |
US $81.57 |
||
|
21
|
21
506151714
Gaine *grip
|
506151714 |
— | ||
| replacement | |||||
|
21
|
21
506152238 Gaine poignee *grip-handle |
506152238 |
US $95.76 |
||
|
22
|
22
506151566 Adaptateur *adaptator |
506151566 |
US $12.19 |
||
|
23
|
23
206581244 Screw-set socket din.916 |
206581244 |
US $2.52 |
||
|
24
|
24
506151598 Couss.secur.ass*steering pad ass y |
506151598 |
US $189.69 |
||
|
25
|
25
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
26
|
26
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
27
|
27
517302265 Rondelle *washer |
517302265 |
US $156.50 |
||
|
28
|
28
415040700
Avertisseur *horn
Grand Touring SE 800 SDI.; |
415040700 |
— | ||
| replacement | |||||
|
28
|
28
549011291 Avertisseur *hornGrand Touring SE 800 SDI.; |
549011291 |
US $31.59 |
||
