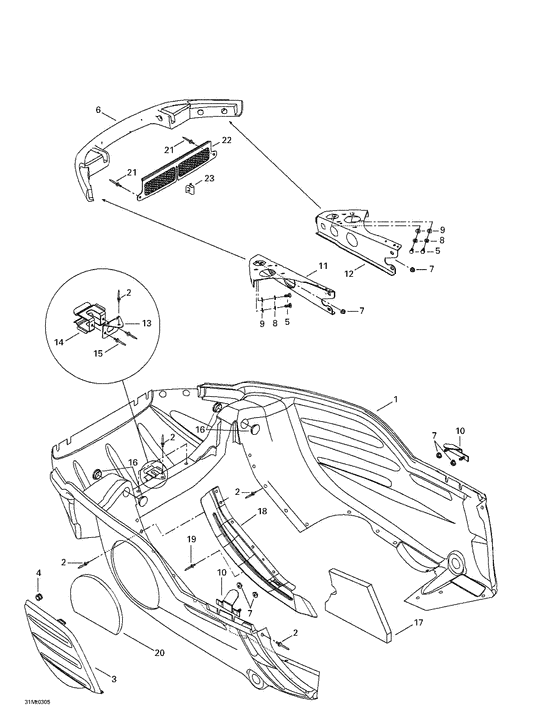

09- bottom pan Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
502006635
Coque *pan-bottom
|
502006635 |
— | ||
|
|
502006506 Porte coque *door-pan bot.Legend SE 800 SDI.; |
502006506 |
US $30.57 |
||
|
|
502006641
Porte coque *door-pan bot.
|
502006641 |
— | ||
|
|
502006536
Pare-choc noir *bumper-black
Legend SE 800 SDI.; |
502006536 |
— | ||
| replacement | |||||
|
|
502006719 Pare-choc noir *bumper-blackLegend SE 800 SDI.; |
502006719 |
US $112.37 |
||
|
|
502006642
Pare-choc *bumper
|
502006642 |
— | ||
|
|
502006633
Coque *pan-bottom
Legend SE 800 SDI.; |
502006633 |
— | ||
|
1
|
1
502006636
Coque *pan-bottom
Grand Touring SE 800 SDI.; |
502006636 |
— | ||
|
2
|
2
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
3
|
3
502006591
Porte coque *door-pan bot.
Grand Touring SE 800 SDI.; |
502006591 |
— | ||
| replacement | |||||
|
3
|
3
502006506 Porte coque *door-pan bot.Grand Touring SE 800 SDI.; |
502006506 |
US $30.57 |
||
|
4
|
4
414036300 Passe-fils *grommet |
414036300 |
US $17.70 |
||
|
5
|
5
207161444 Screw-hex.cap din.933 |
207161444 |
US $7.50 |
||
|
6
|
6
502006592
Pare-choc *bumper
Grand Touring SE 800 SDI.; |
502006592 |
— | ||
|
7
|
7
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
8
|
8
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
9
|
9
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
10
|
10
502006645
Attache soudee *bracket-weld
|
502006645 |
— | ||
|
11
|
11
502006597 Support gauche *lh.support |
502006597 |
US $34.65 |
||
|
12
|
12
502006602 Support droit *support-rh |
502006602 |
US $34.65 |
||
|
13
|
13
502006599
Support courr. *support-belt paint
|
502006599 |
— | ||
|
14
|
14
517281905 Attache *bracket |
517281905 |
US $15.27 |
||
|
15
|
15
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
16
|
16
414916600 Capuchon nylon *plug-nylon |
414916600 |
US $58.70 |
||
|
17
|
17
502006558
Mousse coque *foam-bot. pan
|
502006558 |
— | ||
|
18
|
18
502006593
Protecteur coq.*bottom-pan
|
502006593 |
— | ||
|
19
|
19
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
20
|
20
502006559
Mousse porte *foam-door
|
502006559 |
— | ||
|
21
|
21
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
22
|
22
502006697
Grille cent.p. *grill-cent.paint
|
502006697 |
— | ||
|
23
|
23
517302785 Pince *clip |
517302785 |
US $11.70 |
||
