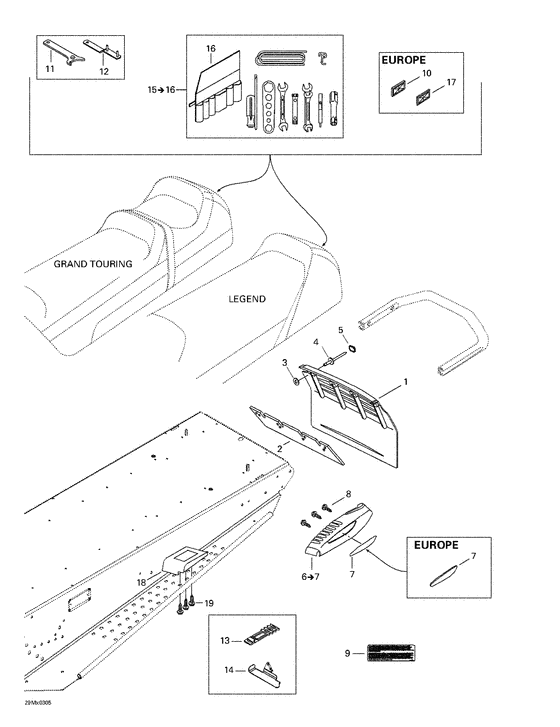

09- frame and accessories Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
520000261
Repose-pied dr.*rh.footrest
Grand Touring SE 800 SDI.; |
520000261 |
— | ||
|
|
572088800
Rep.pied arr.ga*footrest-rr.lh
Grand Touring SE 800 SDI.; |
572088800 |
— | ||
|
|
861777700 Enjoliveur dr. *mould.-rear rh blackLegend SE 800 SDI.; |
861777700 |
US $36.69 |
||
|
|
861780200
Ens.enjoliveur ga. *kit-mould.lh black
Grand Touring SE 800 SDI.; |
861780200 |
— | ||
|
|
861777800
Enjoliveur ga. *mould.-lh black
Legend SE 800 SDI.; |
861777800 |
— | ||
|
|
516000241
Reflect.arr.dr.*reflect.-rear rh
Grand Touring SE 800 SDI.; |
516000241 |
— | ||
|
|
520000347
Garde-neige *guard-snow
Grand Touring SE 800 SDI.; |
520000347 |
— | ||
|
|
516000238
Reflecteur ga. *reflector-lh
|
516000238 |
— | ||
|
|
516000242
Reflect.arr. ga*reflect.-rear lh
Grand Touring SE 800 SDI.; |
516000242 |
— | ||
|
1
|
1
520000223
Garde-neige *guard-snow
|
520000223 |
— | ||
|
2
|
2
572108200 Renfort *reinforcement |
572108200 |
US $14.67 |
||
|
3
|
3
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
4
|
4
293150087 Rivet-pop 3/16 *rivet-pop 3/16 |
293150087 |
US $31 |
||
|
5
|
5
415073300 Capuchon *cap |
415073300 |
US $29.15 |
||
|
6
|
6
861780100 Ens.enjoli. dr. *kit-mould.rear rh blackIncludes 6 - 7. Grand Touring SE 800 SDI.; |
861780100 |
US $55.03 |
||
|
7
|
7
516000237
Reflecteur dr. *reflector-rh
|
516000237 |
— | ||
|
8
|
8
243141640
Screw-plastite hex.wr.hd.
|
243141640 |
— | ||
|
9
|
9
516001681
Etiquette *label-pending
|
516001681 |
— | ||
|
10
|
10
520000271 Reflecteur amb.*reflector-amberGrand Touring SE 800 SDI.; |
520000271 |
US $16.76 |
||
|
11
|
11
529032900
Cle de reglage *wrench-adj.
|
529032900 |
— | ||
|
12
|
12
520000126 Cle de regl.sou*wrench-adjust.weld. |
520000126 |
US $11.17 |
||
|
13
|
13
570069700
Loquet *latch
|
570069700 |
— | ||
|
14
|
14
518321999
Support trousse*support-tool kit
|
518321999 |
— | ||
|
15
|
15
529035596 Trousse outils *tool kitIncludes 15 - 16.; |
529035596 |
US $50.97 |
||
|
16
|
16
520000047
Sac a outils *bag-tool
|
520000047 |
— | ||
| replacement | |||||
|
16
|
16
520000552
Sac a outils *bag-tool
|
520000552 |
— | ||
|
17
|
17
415037900 Reflecteur *reflectorGrand Touring SE 800 SDI.; |
415037900 |
US $18.85 |
||
|
18
|
18
572088700
Rep.pied arr.dr*footrest-rr.rh
Grand Touring SE 800 SDI.; |
572088700 |
— | ||
|
19
|
19
243141640
Screw-plastite hex.wr.hd.
Grand Touring SE 800 SDI.; |
243141640 |
— | ||
