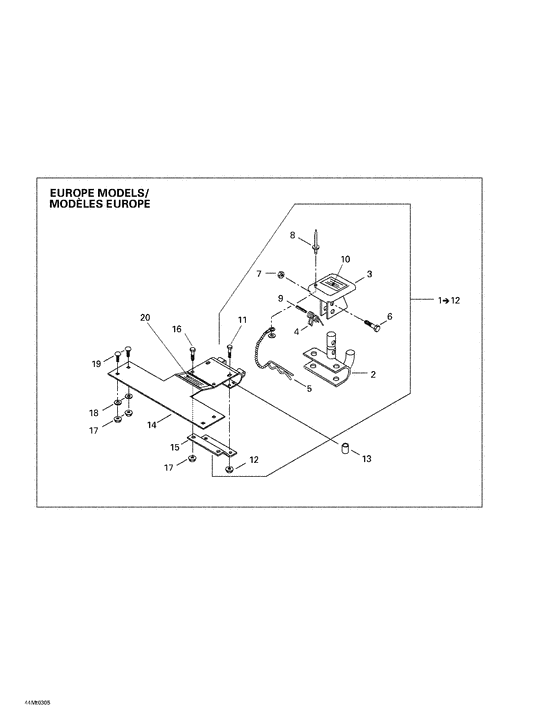

09- hitch (Europe) Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
861778700
Ens.atte.croch.*kit-hitch hook
Includes 1 - 12. Grand Touring SE 800 SDI.; |
861778700 |
— | ||
| replacement | |||||
|
1
|
1
861789600
Ens. attelage c*rear hitch kit
Includes 1 - 12. Grand Touring SE 800 SDI.; |
861789600 |
— | ||
|
2
|
2
517199300
Attelage *hitch
Grand Touring SE 800 SDI.; |
517199300 |
— | ||
|
3
|
3
517152700
Prot.accou. *prot.-hitch
Grand Touring SE 800 SDI.; |
517152700 |
— | ||
|
4
|
4
517152800 Ressort *springGrand Touring SE 800 SDI.; |
517152800 |
US $20.37 |
||
|
5
|
5
114045200 Goup.surete *pin-hairGrand Touring SE 800 SDI.; |
114045200 |
US $53.45 |
||
|
6
|
6
207063044 Screw-hex.cap din.931Grand Touring SE 800 SDI.; |
207063044 |
US $16 |
||
|
7
|
7
232561414 Nut-stop elastic din.985Grand Touring SE 800 SDI.; |
232561414 |
US $7.10 |
||
|
8
|
8
390409400 Rivet-pop 5/32 *rivet-pop 5/32Grand Touring SE 800 SDI.; |
390409400 |
US $7.10 |
||
|
9
|
9
732804000 Pin-spirolGrand Touring SE 800 SDI.; |
732804000 |
US $3.15 |
||
|
10
|
10
516001243 Etiquette secur*security-labelGrand Touring SE 800 SDI.; |
516001243 |
US $0.02 |
||
|
11
|
11
207065044 Screw-hex.cap din.931Grand Touring SE 800 SDI.; |
207065044 |
US $19.60 |
||
|
12
|
12
233261414 Nut-flange elastic din.6926Grand Touring SE 800 SDI.; |
233261414 |
US $18.40 |
||
|
13
|
13
517191700 Entretoise *spacerGrand Touring SE 800 SDI.; |
517191700 |
US $14.67 |
||
|
14
|
14
511000217
Fixation peint *fixation-paint
Grand Touring SE 800 SDI.; |
511000217 |
— | ||
|
15
|
15
517223500
Renfort *reinforcement
Grand Touring SE 800 SDI.; |
517223500 |
— | ||
|
16
|
16
207162044 Screw-hex.cap din.933Grand Touring SE 800 SDI.; |
207162044 |
US $9.90 |
||
|
17
|
17
233261414 Nut-flange elastic din.6926Grand Touring SE 800 SDI.; |
233261414 |
US $18.40 |
||
|
18
|
18
224061201 Washer-flatGrand Touring SE 800 SDI.; |
224061201 |
US $17.50 |
||
|
19
|
19
207762044 Bolt-carriage din.603Grand Touring SE 800 SDI.; |
207762044 |
US $20.10 |
||
|
20
|
20
516001709
Etiquette secur*label security
Grand Touring SE 800 SDI.; |
516001709 |
— | ||
