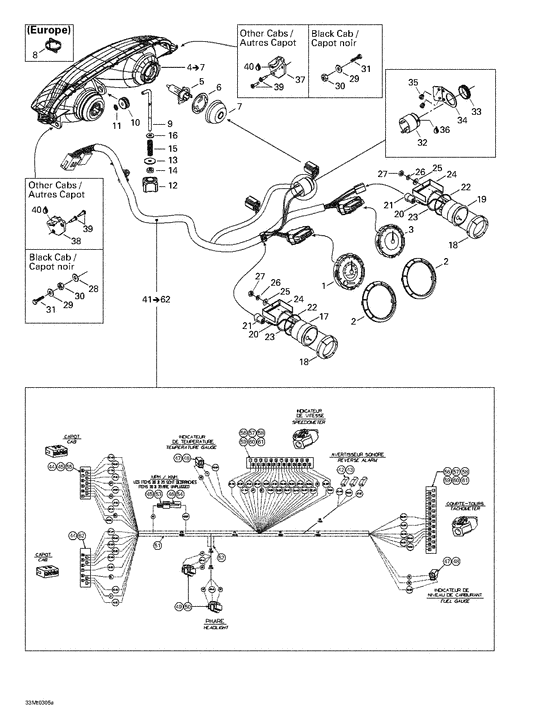

10- electrical system - hood Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515175828
Ind.vitesse *speedometer
|
515175828 |
— | ||
|
1
|
1
515175747
Ind.vitesse *speedometer
|
515175747 |
— | ||
|
2
|
2
515175651
Anneau cadran *ring-gauge
|
515175651 |
— | ||
| replacement | |||||
|
2
|
2
515176242 Ring - gauge |
515176242 |
US $14.55 |
||
|
3
|
3
515175943
Compte-tours *tachometer
|
515175943 |
— | ||
| replacement | |||||
|
3
|
3
515176275
Compte-tours *tachometer
|
515176275 |
— | ||
|
4
|
4
515175909
Phare halogene *headlamp-halo.
Includes 4 - 7.; |
515175909 |
— | ||
| replacement | |||||
|
4
|
4
515176311 Phare halogene *headlamp-halo.Includes 4 - 7.; |
515176311 |
US $264.15 |
||
|
5
|
5
410504401
Ampoule halogen*bulb-hal.h4
|
410504401 |
— | ||
|
6
|
6
515175910 Porte ampoule *bulb holder |
515175910 |
US $14.67 |
||
|
7
|
7
515175911 Couvercle *cover |
515175911 |
US $15.73 |
||
|
8
|
8
515175324 Ressort *springGrand Touring SE 800 SDI.; |
515175324 |
US $17.29 |
||
|
9
|
9
517295800 Tige ajustement*rod-adjuster |
517295800 |
US $16.29 |
||
|
10
|
10
415100800 Grommet |
415100800 |
US $5.20 |
||
|
11
|
11
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
12
|
12
515175548 Handle |
515175548 |
US $7.31 |
||
|
13
|
13
224060251 Rondelle *washer |
224060251 |
US $18.75 |
||
|
14
|
14
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
15
|
15
415100600 Ressort *spring |
415100600 |
US $4.15 |
||
|
16
|
16
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
17
|
17
515175601
Indicateur temp*gauge-temp.
|
515175601 |
— | ||
|
18
|
18
515175711 Anneau cadran *ring-gauge |
515175711 |
US $27.29 |
||
|
19
|
19
515175529 Indicateur ess.*gauge-fuel |
515175529 |
US $264.15 |
||
|
20
|
20
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
21
|
21
409204200 Logement male *housing-male |
409204200 |
US $50.70 |
||
|
22
|
22
414807200 Joint torique *packing |
414807200 |
US $20.75 |
||
|
23
|
23
517258600 Rondelle formee*washer |
517258600 |
US $7.31 |
||
|
24
|
24
415099800
Support boitier*holder-case
|
415099800 |
— | ||
|
25
|
25
391301700
Rondelle *washer
|
391301700 |
— | ||
|
26
|
26
414833700 Washer-lock gauge |
414833700 |
US $1.96 |
||
|
27
|
27
414833600 Ecrou gauge *nut-gauge |
414833600 |
US $9.80 |
||
|
28
|
28
234001410 Washer-flat din.125aLegend SE 800 SDI.; |
234001410 |
US $16 |
||
|
29
|
29
234051410 Washer-flat din.125aLegend SE 800 SDI.; |
234051410 |
US $6.80 |
||
|
30
|
30
250100018 Well-nut m5 x 0.8mmLegend SE 800 SDI.; |
250100018 |
US $7 |
||
|
31
|
31
207053544 Screw-hex.cap din.931Legend SE 800 SDI.; |
207053544 |
US $14.80 |
||
|
32
|
32
515175931
Avertisseur *horn
|
515175931 |
— | ||
|
33
|
33
414805101 Ecrou plastique*nut-plastic. |
414805101 |
US $3.83 |
||
|
34
|
34
515175688 Plaque peinte *plate-paint |
515175688 |
US $8.13 |
||
|
35
|
35
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
36
|
36
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
37
|
37
517289300
Support droit *support-rh
|
517289300 |
— | ||
|
38
|
38
517289400
Support gauche *support-lh
|
517289400 |
— | ||
|
39
|
39
732601315
Vis phare *screw-headlamp
|
732601315 |
— | ||
|
40
|
40
413707500
Graisse tube *grease-tube
|
413707500 |
— | ||
|
41
|
41
515175614
Cablage capot *harness-hood
Includes 41 - 62.; |
515175614 |
— | ||
|
42
|
42
409010100 Cosse femelle *terminal-femal. |
409010100 |
US $36.20 |
||
|
43
|
43
409010400 Logement femel.*housing-female |
409010400 |
US $48.80 |
||
|
44
|
44
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
45
|
45
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
46
|
46
515175282 Cosse femelle *treminal-femal. |
515175282 |
US $96.10 |
||
|
47
|
47
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
48
|
48
409204300
Logement femel.*housing-female
|
409204300 |
— | ||
|
49
|
49
515175321 Cosse femelle *terminal-femal. |
515175321 |
US $62.60 |
||
|
50
|
50
409202700 Logement femel.*housing-female |
409202700 |
US $58.30 |
||
|
51
|
51
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
52
|
52
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
53
|
53
515175509 Logement male *housing-male |
515175509 |
US $6.26 |
||
|
54
|
54
515175510 Logement femel.*housing-female |
515175510 |
US $6.26 |
||
|
55
|
55
515175720 Logement male *housing-male |
515175720 |
US $16.76 |
||
|
56
|
56
515175812 Bouchon *plug |
515175812 |
US $14.30 |
||
|
57
|
57
515175801 Logement femel.*housing-female |
515175801 |
US $21.72 |
||
|
58
|
58
515175802 Boitier *retainer block |
515175802 |
US $12.29 |
||
|
59
|
59
515175803 Joint de fil *seal-wire |
515175803 |
US $40.60 |
||
|
60
|
60
515175804 Logement femel.*housing-female |
515175804 |
US $73.10 |
||
|
61
|
61
515175806 Cosse femelle *terminal-femal. |
515175806 |
US $33.50 |
||
|
62
|
62
415128526
Logement *housing
|
415128526 |
— | ||
