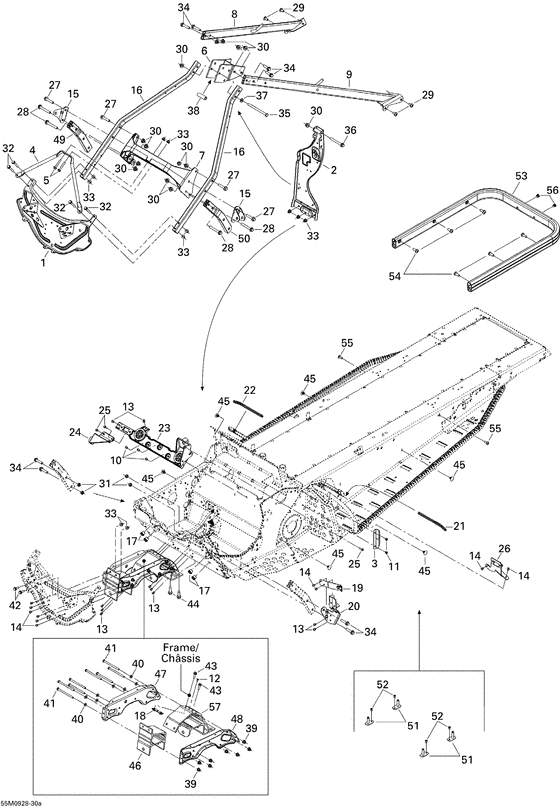

09- frame and components Diagram Bombardier Legend
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518324216
Plaque frontale*front plate
|
518324216 |
— | ||
|
2
|
2
518325212 Supp.direction *upp.col.suppor |
518325212 |
US $38.83 |
||
|
3
|
3
518317504 Protect.cable *protect.-cable |
518317504 |
US $6.26 |
||
|
4
|
4
518325036 Croisillon *brace |
518325036 |
US $36.69 |
||
|
5
|
5
207664044 Screw-hex.flange din.6921 |
207664044 |
US $10.65 |
||
|
6
|
6
518324196 Bloc attache *block-bracket |
518324196 |
US $70.35 |
||
|
7
|
7
518324808 Traverse sup. *upper cross m |
518324808 |
US $224.37 |
||
|
8
|
8
518324480 Membrure dr.sou*member-rh weld. |
518324480 |
US $103.99 |
||
|
9
|
9
518325193
Membrure ga.sou*member-lh weld.
|
518325193 |
— | ||
|
10
|
10
293150119 Rivet *rivet |
293150119 |
US $20.25 |
||
|
11
|
11
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $18 |
||
|
12
|
12
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $38.50 |
||
|
13
|
13
390909100 Rivet avex *rivet avex |
390909100 |
US $0.31 |
||
|
14
|
14
390909200 Rivet avex *rivet avex |
390909200 |
US $18.50 |
||
|
15
|
15
518324202 Attache amort. *brkt-shock |
518324202 |
US $11.49 |
||
|
16
|
16
518325074 Tube droit *tube rh |
518325074 |
US $228.72 |
||
|
17
|
17
293450166 Ajout *insert |
293450166 |
US $4.05 |
||
|
18
|
18
518324204 Attache soude *weld plate hol |
518324204 |
US $36.69 |
||
|
19
|
19
518325235 Attache gard.co*brkt-guard belt |
518325235 |
US $16.76 |
||
|
20
|
20
518325075 Support gard.co*sup-guard belt |
518325075 |
US $23.41 |
||
|
21
|
21
271000110 Moul.protect. *trim-protect. |
271000110 |
US $22.93 |
||
|
22
|
22
271000110 Moul.protect. *trim-protect. |
271000110 |
US $22.93 |
||
|
23
|
23
518324902 Support moteur *engine support |
518324902 |
US $217.23 |
||
|
24
|
24
518324903 Support moteur *engine support |
518324903 |
US $88.69 |
||
|
25
|
25
207551644 Screw-hex.flange din.6921 s.grip |
207551644 |
US $1.64 |
||
|
26
|
26
518325077 Attache *attache |
518325077 |
US $19.92 |
||
|
27
|
27
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.60 |
||
|
28
|
28
207686044 Screw-hex.flange din.6921 |
207686044 |
US $29.20 |
||
|
29
|
29
250000154 Screw-pan hd.torx m8 x 13 |
250000154 |
US $19.60 |
||
|
30
|
30
233281414 Nut-flange elastic din.6926 |
233281414 |
US $1.87 |
||
|
31
|
31
232581414 Nut-stop elastic din.985 |
232581414 |
US $5.80 |
||
|
32
|
32
207664544 Screw-hex.flange din.6921 |
207664544 |
US $49 |
||
|
33
|
33
233261414 Nut-flange elastic din.6926 |
233261414 |
US $15.30 |
||
|
34
|
34
207683544 Screw-hex.flange din.6921 |
207683544 |
US $19.60 |
||
|
35
|
35
230081044 Screw-hex.cap din.931 |
230081044 |
US $16 |
||
|
36
|
36
207687044 Screw-hex.flange din.6921 |
207687044 |
US $8.89 |
||
|
37
|
37
503189157 Rondelle *washer |
503189157 |
US $38.90 |
||
|
38
|
38
506150500 Douille logem. *bushing-housing |
506150500 |
US $7.23 |
||
|
39
|
39
233261414 Nut-flange elastic din.6926 |
233261414 |
US $15.30 |
||
|
40
|
40
250200039 Rondelle plate *flat washer |
250200039 |
US $7.10 |
||
|
41
|
41
207069044 Screw-hex.cap din.931 |
207069044 |
US $22.60 |
||
|
42
|
42
207662044 Screw-hex.flange din.6921 |
207662044 |
US $50.25 |
||
|
43
|
43
207562044
Screw-hex.flange din.6921 s.grip
|
207562044 |
— | ||
|
44
|
44
250000257 Boulon pointu *cone screw m8 |
250000257 |
US $1.79 |
||
|
45
|
45
518321954 Attache panneau*panel-fastener |
518321954 |
US $31.30 |
||
|
46
|
46
518324019
Attache avant *front attach
|
518324019 |
— | ||
|
47
|
47
518324014
Renfort lat. *lat.reinforc.
|
518324014 |
— | ||
|
48
|
48
518324017
Renfort lat.ga.*lh.lat.reinfor
|
518324017 |
— | ||
|
49
|
49
518324786
Tube droit *tube rh
|
518324786 |
— | ||
|
50
|
50
518324787
Tube gauche *tube-lh
|
518324787 |
— | ||
|
51
|
51
518322791 Att.reserv.so. *brkt-tank weld |
518322791 |
US $11.49 |
||
|
52
|
52
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $18 |
||
|
53
|
53
518325215 Pare-choc *rear bumper |
518325215 |
US $128.49 |
||
|
54
|
54
236282084 Screw-pan hd.torx black gm6174m |
236282084 |
US $19.60 |
||
|
55
|
55
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
56
|
56
518321954 Attache panneau*panel-fastenerNorth America; |
518321954 |
US $31.30 |
||
|
57
|
57
518324020
Attache arr. *rear attach
|
518324020 |
— |
