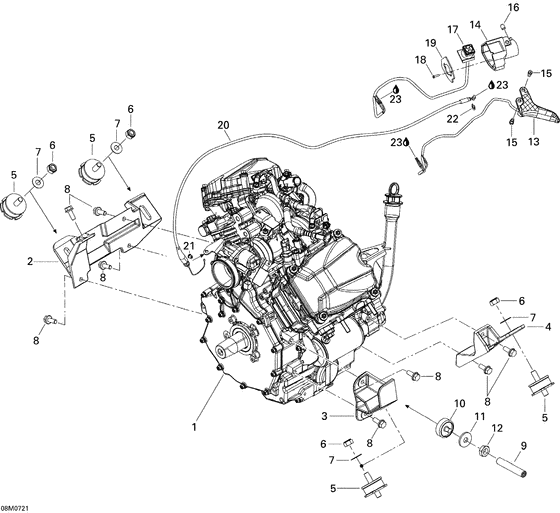

01- engine and engine support Diagram Bombardier Legend
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400800314
Moteur v810 *engine-v810
|
400800314 |
— | ||
| replacements | |||||
|
1
|
1
420665910 Boite electro. *electronic box |
420665910 |
US $1,251.51 |
||
|
1
|
1
400800319
Moteur v810 *engine-v810
|
400800319 |
— | ||
|
2
|
2
512060076 Sup moteur av *engine sup |
512060076 |
US $153.97 |
||
|
3
|
3
512060077 Sup moteur pto *engine sup |
512060077 |
US $98.89 |
||
|
4
|
4
512060078 Sup moteur mag *engine sup |
512060078 |
US $92.77 |
||
|
5
|
5
512059960 Tampon ancrage *rubber mount |
512059960 |
US $35.65 |
||
|
6
|
6
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
7
|
7
250200032 Rondelle *washer |
250200032 |
US $65.80 |
||
|
8
|
8
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
9
|
9
250500007 Vis d arret *screw-stopper |
250500007 |
US $27.49 |
||
|
10
|
10
512059610
Butee *stopper
|
512059610 |
— | ||
|
11
|
11
512059057 Rondelle *washer |
512059057 |
US $19.60 |
||
|
12
|
12
232170411 Nut-jam hexagonal din.439b |
232170411 |
US $9.60 |
||
|
13
|
13
512060302
Manette ass. *handle-assy
|
512060302 |
— | ||
|
14
|
14
512060200 Logement acc. *housing-throttle |
512060200 |
US $30.57 |
||
|
15
|
15
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
16
|
16
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
17
|
17
515176091
Interrupteur *kill switch
|
515176091 |
— | ||
| replacement | |||||
|
17
|
17
548872536
Inter.urgence *switch-kill
|
548872536 |
— | ||
|
18
|
18
250000265 Screw-tapp.pan.hd.torx din.7981c |
250000265 |
US $2.20 |
||
|
19
|
19
512059507 Plaque *plate |
512059507 |
US $8.13 |
||
|
20
|
20
512060125 Cable accelerat*cable-throttle |
512060125 |
US $73.41 |
||
|
21
|
21
707000434 Guide de c-ble *cable guide |
707000434 |
US $11.90 |
||
|
22
|
22
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
23
|
23
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
