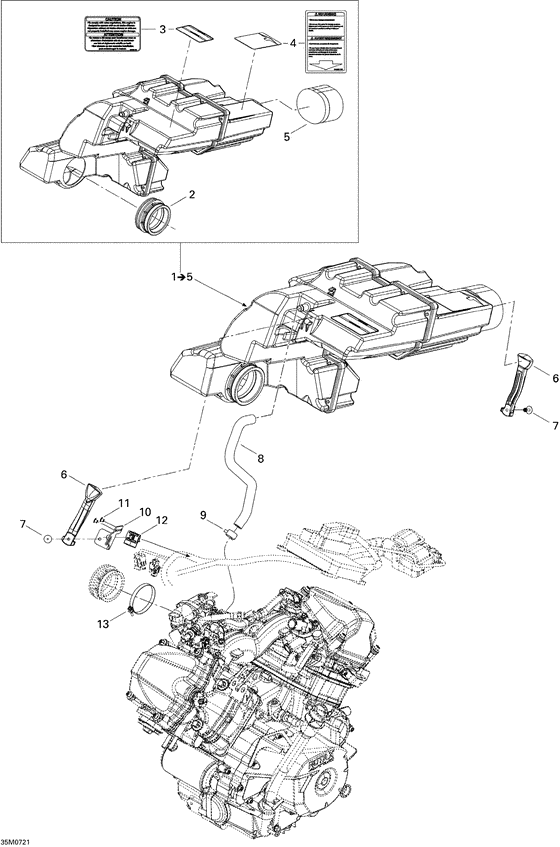

02- air intake system Diagram Bombardier Legend
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
508000488
Silenc.adm.ass.*chamber-ass
Includes 1 to 5; |
508000488 |
— | ||
|
2
|
2
508000491 Adap.admission *adap-air intake |
508000491 |
US $19.33 |
||
|
3
|
3
516002715 Etiquette *label |
516002715 |
US $0.02 |
||
|
4
|
4
516003292 Etiquette *label |
516003292 |
US $0.02 |
||
|
5
|
5
508000508 Filtre a air *air filter |
508000508 |
US $18.33 |
||
|
6
|
6
517302448 Loquet panneau *latch-panel |
517302448 |
US $15.86 |
||
|
7
|
7
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
8
|
8
508000510
Boyau ventilat.*hose-vent
|
508000510 |
— | ||
|
9
|
9
293650110 Bride serrage *clamp-norma |
293650110 |
US $23.40 |
||
|
10
|
10
508000518
Support *support
|
508000518 |
— | ||
|
11
|
11
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
12
|
12
275500528 Attache boyau*hose-retainer |
275500528 |
US $3.83 |
||
|
13
|
13
508000346 Clamp |
508000346 |
US $10.52 |
