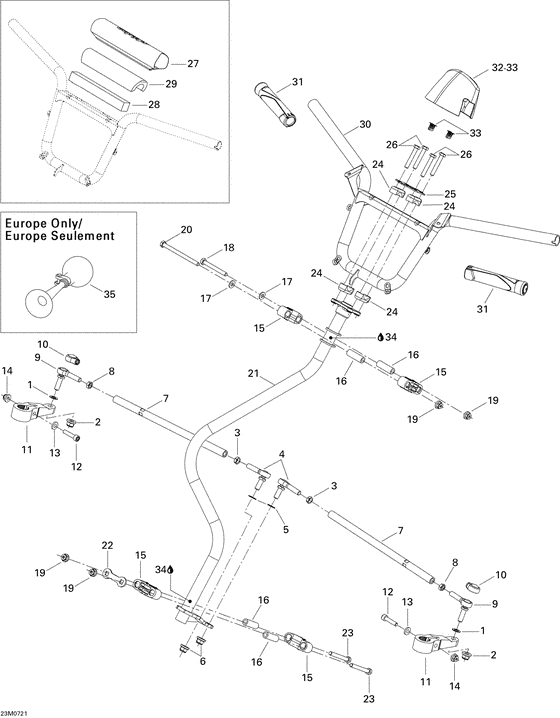

07- steering system Diagram Bombardier Legend
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
2
|
2
250100088 Ecrou m10 *nut m10 |
250100088 |
US $4.10 |
||
|
3
|
3
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
4
|
4
506151845 Joint rotule ga*ball joint lh |
506151845 |
US $46.10 |
||
|
5
|
5
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
6
|
6
250100088 Ecrou m10 *nut m10 |
250100088 |
US $4.10 |
||
|
7
|
7
506151884 Barre accoup. *rod-tie |
506151884 |
US $28.51 |
||
|
8
|
8
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
9
|
9
506152017
Joint rotule *ball joint
|
506152017 |
— | ||
| replacement | |||||
|
9
|
9
506152212 Joint rotule *ball joint |
506152212 |
US $49.11 |
||
|
10
|
10
506151650 Capuchon prot. *cap-protection |
506151650 |
US $7.33 |
||
|
11
|
11
506152030
Bras direct *arm-steer.
|
506152030 |
— | ||
|
12
|
12
207084544 Screw-hex.cap din.931 |
207084544 |
US $19.20 |
||
|
13
|
13
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
14
|
14
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
15
|
15
506150400 Demi logement *half-housing |
506150400 |
US $9.74 |
||
|
16
|
16
506150500 Douille logem. *bushing-housing |
506150500 |
US $9.78 |
||
|
17
|
17
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
18
|
18
207087044 Screw-hex.cap din.931 |
207087044 |
US $14.35 |
||
|
19
|
19
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
20
|
20
230081044 Screw-hex.cap din.931 |
230081044 |
US $16 |
||
|
21
|
21
506152013 Arbre dir.peint*tube-main paint |
506152013 |
US $155.01 |
||
|
22
|
22
506150600 Plaque d arret *plate-stopper |
506150600 |
US $5.47 |
||
|
23
|
23
207087044 Screw-hex.cap din.931 |
207087044 |
US $14.35 |
||
|
24
|
24
506151622
Support guidon *steering support
|
506151622 |
— | ||
|
25
|
25
506151547 Renfort *reiforcement |
506151547 |
US $5.41 |
||
|
26
|
26
250000082 Screw-hex.cap din.931 nylon-patch |
250000082 |
US $19.60 |
||
|
27
|
27
506152140 Toile guidon *steering cover |
506152140 |
US $48.93 |
||
|
28
|
28
506152141 Ajout mousse *insert-foam |
506152141 |
US $8.55 |
||
|
29
|
29
506152143 Mousse guidon *foam-steering |
506152143 |
US $13.45 |
||
|
30
|
30
506152071 Guidon peint *handle bar paint |
506152071 |
US $110.13 |
||
|
31
|
31
506152119
Gaine *grip
|
506152119 |
— | ||
|
32
|
32
506151660 Capuchon *capIncludes 32 to 33; |
506151660 |
US $18.09 |
||
|
33
|
33
517302785 Pince *clip |
517302785 |
US $11.70 |
||
|
34
|
34
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
35
|
35
415040700
Avertisseur *horn
Europe; |
415040700 |
— | ||
| replacement | |||||
|
35
|
35
549011291 Avertisseur *hornEurope; |
549011291 |
US $31.59 |
||
