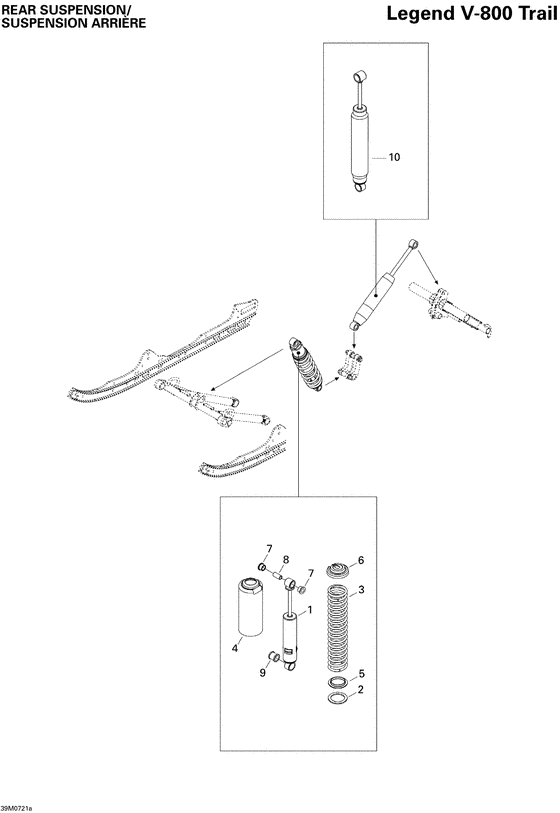

08- rear suspension shocks trail Diagram Bombardier Legend
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503191521 Amort. central *shock-center |
503191521 |
US $116.25 |
||
|
2
|
2
503184400 Rondelle *washer |
503184400 |
US $33 |
||
|
3
|
3
503189325 Ressort comp.p *spring-comp.paint |
503189325 |
US $61.15 |
||
|
4
|
4
503191126
Protecteur *protector
|
503191126 |
— | ||
| replacement | |||||
|
4
|
4
503193663 PROTECTOR |
503193663 |
US $30.57 |
||
|
5
|
5
505071954 Guide ressort *guide-spring |
505071954 |
US $4.40 |
||
|
6
|
6
503140600
Butee ressort *stopper-spring
|
503140600 |
— | ||
| replacement | |||||
|
6
|
6
503191611
Butee ressort *stopper-spring
|
503191611 |
— | ||
|
7
|
7
503189117 Coussinet ureth*cushion-ureth. |
503189117 |
US $9.69 |
||
|
8
|
8
503189282 Douille *bushing |
503189282 |
US $5.61 |
||
|
9
|
9
503189271 Coussinet ureth*cushion-ureth. |
503189271 |
US $13.24 |
||
|
10
|
10
503191522 Amort. arr. *shock-rear |
503191522 |
US $257.01 |
||
