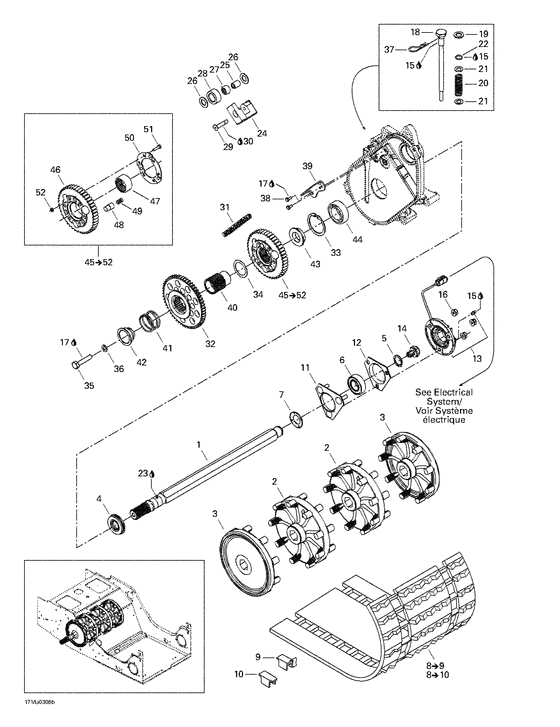

05- drive system Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
501027400 Arbre entr.pein*axle-drive paint |
501027400 |
US $308.01 |
||
|
2
|
2
504151781 Barbotin 9d *sprocket 9th |
504151781 |
US $67.29 |
||
|
3
|
3
504151782 Demi barbotin *half sprocket |
504151782 |
US $48.93 |
||
|
4
|
4
504151918 Anneau etanche *oil seal ass y |
504151918 |
US $24.45 |
||
|
5
|
5
371910200 Circlip *circlip |
371910200 |
US $10.65 |
||
|
6
|
6
504152009
Roulement bille*ball bearing
|
504152009 |
— | ||
| replacement | |||||
|
6
|
6
293350060 Roulement bille*ball bearing |
293350060 |
US $37.71 |
||
|
7
|
7
501017400 Prot.roulement *bearing protector |
501017400 |
US $9.13 |
||
|
8
|
8
504152061
Chenille *track 15"x136"x1.00
Includes 8 - 9. (Europe) Grand Touring V-1000.; |
504152061 |
— | ||
| replacement | |||||
|
8
|
8
504152489
Chenille 15"x136"x0.88" *track-assy
Includes 8 - 9. (Europe) Grand Touring V-1000.; |
504152489 |
— | ||
|
8
|
8
504151802
Chenille *track-assy 15"x121"x0.88
Includes 8 - 10. Legend V-1000.; |
504151802 |
— | ||
| replacement | |||||
|
8
|
8
504152446
Chenille 15"x121"x1.00" *track
Includes 8 - 10. Legend V-1000.; |
504152446 |
— | ||
|
8
|
8
504151804
Chenille *track-assy 15"x136"x0.88
Includes 8 - 10. Grand Touring V-1000.; |
504151804 |
— | ||
| replacement | |||||
|
8
|
8
504152455 Chenille 15"x136"x0.88" *track-assyIncludes 8 - 10. Grand Touring V-1000.; |
504152455 |
US $856.77 |
||
|
9
|
9
500003400
Agrafe de guide*cleat-guide
Grand Touring V-1000.; |
500003400 |
— | ||
| replacement | |||||
|
9
|
9
504152410
Guide *clip
Grand Touring V-1000.; |
504152410 |
— | ||
|
9
|
9
500003400
Agrafe de guide*cleat-guide
Grand Touring V-1000.; |
500003400 |
— | ||
| replacement | |||||
|
9
|
9
504152410
Guide *clip
Grand Touring V-1000.; |
504152410 |
— | ||
|
9
|
9
500003400
Agrafe de guide*cleat-guide
Legend V-1000.; |
500003400 |
— | ||
| replacement | |||||
|
9
|
9
504152410
Guide *clip
Legend V-1000.; |
504152410 |
— | ||
|
10
|
10
504151828
Agrafe *cleat
Grand Touring V-1000.; |
504151828 |
— | ||
|
10
|
10
504151828
Agrafe *cleat
Legend V-1000.; |
504151828 |
— | ||
|
11
|
11
504151860 Logement roul. *housing-bear.weld. |
504151860 |
US $12.19 |
||
|
12
|
12
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
13
|
13
504152173 Flasque ind.vit*flange-speed. |
504152173 |
US $84.03 |
||
|
14
|
14
504152040 Adaptateur magn*adaptor-magnetic |
504152040 |
US $53.72 |
||
|
15
|
15
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
16
|
16
233281414 Nut-flange elastic din.6926 |
233281414 |
US $1.87 |
||
|
17
|
17
293800005 Loctite 271 *loctite-271 |
293800005 |
US $26.49 |
||
|
18
|
18
504151946 Vis de reglage *screw adjusting |
504151946 |
US $116.25 |
||
|
19
|
19
503189148 Rondelle *washer |
503189148 |
US $13.35 |
||
|
20
|
20
504151945 Ressort *spring |
504151945 |
US $7 |
||
|
21
|
21
503125900 Rondelle trempe*washer-hard |
503125900 |
US $38.90 |
||
|
22
|
22
504151954 Joint torique *o-ring |
504151954 |
US $12.85 |
||
|
23
|
23
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
24
|
24
504151940 Tendeur chaine *chain-tens.mach. |
504151940 |
US $45.85 |
||
|
25
|
25
504080200 Entretoise *spacer |
504080200 |
US $11.17 |
||
|
26
|
26
504080300 Rondelle *washer |
504080300 |
US $60.70 |
||
|
27
|
27
405403000 Roul.aiguille *needle bearing |
405403000 |
US $25.45 |
||
|
28
|
28
414531300 Rouleau *roller |
414531300 |
US $54.03 |
||
|
29
|
29
732601144 Screw |
732601144 |
US $1.79 |
||
|
30
|
30
293800005 Loctite 271 *loctite-271 |
293800005 |
US $26.49 |
||
|
31
|
31
504151857 Chaine large *chain-driv.l. |
504151857 |
US $127.45 |
||
|
32
|
32
504096800 Engr.coulis.56d*gear-sliding56 |
504096800 |
US $360.01 |
||
|
33
|
33
415064300 Circlip int. *circlip-int. |
415064300 |
US $4.98 |
||
|
34
|
34
504094300 Rondelle *washer |
504094300 |
US $10.14 |
||
|
35
|
35
207005044 Screw-hex.cap iso.4014 |
207005044 |
US $38.90 |
||
|
36
|
36
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
37
|
37
414575600 Goup.surete *pin-hair |
414575600 |
US $9.80 |
||
|
38
|
38
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
39
|
39
504152036 Glissiere chain*chain-slider |
504152036 |
US $30.57 |
||
|
40
|
40
504097700
Arbre de couple*coupling
|
504097700 |
— | ||
|
41
|
41
504096600
Ressort rappel *spring-release
|
504096600 |
— | ||
| replacement | |||||
|
41
|
41
504153178 SPRING RELEASE |
504153178 |
US $9.69 |
||
|
42
|
42
504151964 Capuchon *cap |
504151964 |
US $58.09 |
||
|
43
|
43
504076300 Bague d appui *ring-retaining |
504076300 |
US $36.69 |
||
|
44
|
44
504152005 Roulement bille*ball bearing |
504152005 |
US $41.77 |
||
|
45
|
45
581096800 Pignon 44d ass.*sprock-44th assyIncludes 45 - 52.; |
581096800 |
US $411.50 |
||
|
46
|
46
504084400
Roue dentee 44d*sprocket 44th
|
504084400 |
— | ||
| replacement | |||||
|
46
|
46
581096800 Pignon 44d ass.*sprock-44th assy |
581096800 |
US $411.50 |
||
|
47
|
47
414772600 Roulement aig. *needle bearing |
414772600 |
US $21.39 |
||
|
48
|
48
504076800 Tige d engagem.*pin-drive |
504076800 |
US $86.97 |
||
|
49
|
49
414772700
Ressort *spring
|
414772700 |
— | ||
|
50
|
50
504076100
Anneau retenue *ring-retainer
|
504076100 |
— | ||
|
51
|
51
207152044 Screw-hex.cap din.933 |
207152044 |
US $8.70 |
||
|
52
|
52
233551416 Nut-lock spring din.980v |
233551416 |
US $25.80 |
||
