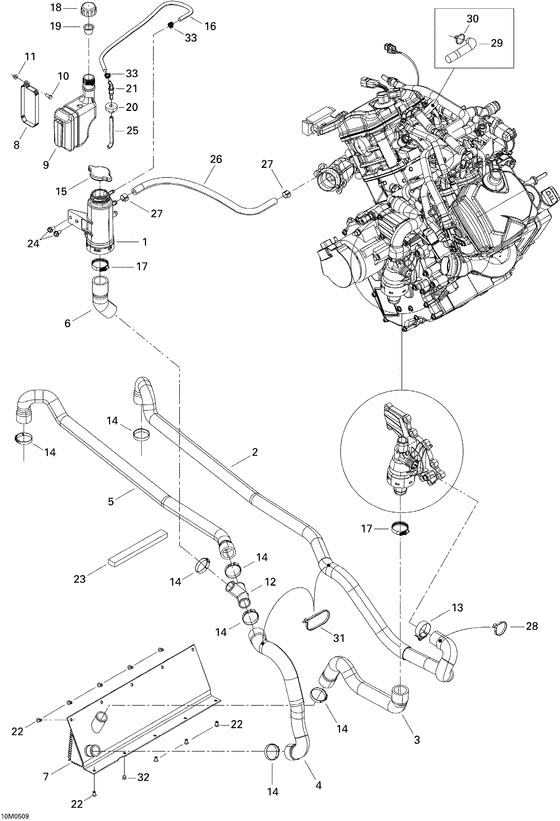

01- cooling system Diagram Bombardier Legend
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000176 Goulot remplis.*filler neck assy |
509000176 |
US $73.41 |
||
|
2
|
2
509000103 Boyau *hose |
509000103 |
US $198.85 |
||
|
3
|
3
509000104 Boyau *hose |
509000104 |
US $58.09 |
||
|
4
|
4
509000193
Boyau rad. av *radiator hose front
|
509000193 |
— | ||
|
5
|
5
509000105 Boyau *hose |
509000105 |
US $88.69 |
||
|
6
|
6
509000195
Boyau *hose
|
509000195 |
— | ||
|
7
|
7
509000146
Radiateur av.s.*rad.-front weld.
|
509000146 |
— | ||
|
8
|
8
509000191 Support reserv.*reserv. support |
509000191 |
US $21.39 |
||
|
9
|
9
709200099 Res.antigel *coolant tank |
709200099 |
US $63.21 |
||
|
10
|
10
207151244 Screw-hex.cap din.933 |
207151244 |
US $11.70 |
||
|
11
|
11
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
12
|
12
509000219 Raccord en t *fitting-t |
509000219 |
US $15.27 |
||
|
13
|
13
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
14
|
14
509000045 Bride serrage *clamp-gear |
509000045 |
US $104.70 |
||
|
15
|
15
509000180 Bouchon radiat.*pressure cap |
509000180 |
US $22.39 |
||
|
16
|
16
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
17
|
17
293650045 Bride serrage *clamp-tridon |
293650045 |
US $37.65 |
||
|
18
|
18
709200009 Bouchon reserv.*cap-tank |
709200009 |
US $12.19 |
||
|
19
|
19
709200034
Bouchon anti *cap-protec.
|
709200034 |
— | ||
| replacement | |||||
|
19
|
19
709200205 Bouchon anti *cap-protec. |
709200205 |
US $4.05 |
||
|
20
|
20
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
20
|
20
709200285
GROMMET
|
709200285 |
— | ||
|
21
|
21
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
|
22
|
22
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
23
|
23
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
24
|
24
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
25
|
25
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
26
|
26
509000304 Boyau *hose |
509000304 |
US $26.49 |
||
|
27
|
27
293650125 Bride serrage *clamp-oetiker |
293650125 |
US $21.70 |
||
|
28
|
28
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
29
|
29
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
30
|
30
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
31
|
31
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
32
|
32
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
33
|
33
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
