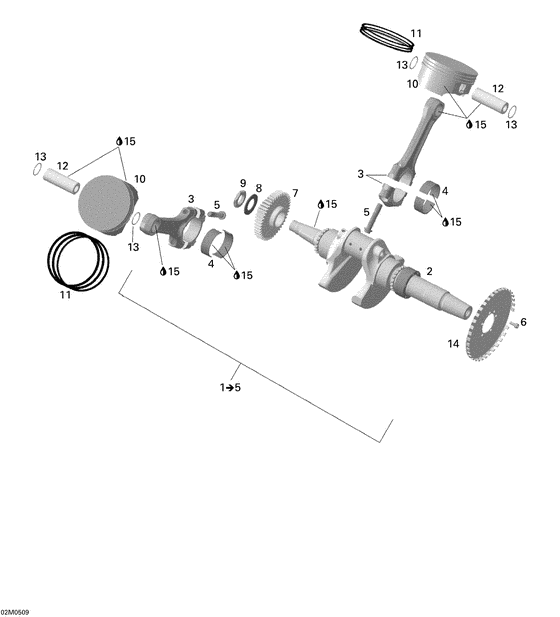

01- crankshaft and pistons Diagram Bombardier Legend
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420889441 Vilebrequin as*crankshaft assyIncludes 1 to 5; |
420889441 |
US $2,100.16 |
||
|
2
|
2
420889440
Vilebrequin
|
420889440 |
— | ||
|
3
|
3
420917546 Bielle ass. *connecting rod |
420917546 |
US $202.93 |
||
|
4
|
4
420933520 Coussinet rou. *plain bushing |
420933520 |
US $19.47 |
||
| replacement | |||||
|
4
|
4
420933523 coussinet rou. *plain bushing |
420933523 |
US $19.07 |
||
|
5
|
5
420640990
Vis de bielle *connecting rod screw
|
420640990 |
— | ||
| replacement | |||||
|
5
|
5
420640991 CONNECTING ROD SCREW |
420640991 |
US $12.55 |
||
|
6
|
6
420640541 Screw-socket hd.din.912a2 |
420640541 |
US $1.79 |
||
|
7
|
7
420834446 Eng.rouage *drive gear 45 t |
420834446 |
US $306.97 |
||
|
8
|
8
420245860 Rondelle resso.*spring washer |
420245860 |
US $9.45 |
||
|
9
|
9
420242871
Nut
|
420242871 |
— | ||
|
10
|
10
420296565 Piston ass. 99.96mm *piston assy |
420296565 |
US $215.53 |
||
|
11
|
11
420888864
Segment piston *piston set ring
|
420888864 |
— | ||
| replacement | |||||
|
11
|
11
420890380 Piston Set Ring, Standard |
420890380 |
US $78 |
||
|
12
|
12
420216250 Goupille piston*piston pin |
420216250 |
US $28.25 |
||
|
13
|
13
420845580 Circlip piston *monohook circlip |
420845580 |
US $6.76 |
||
|
14
|
14
420966850 Roue de delen. *trigger wheel 36-2t |
420966850 |
US $14.25 |
||
|
15
|
15
293600054
Huile 4t 12x1 * oil 4t 12x1 synth 0w40
|
293600054 |
— | ||
