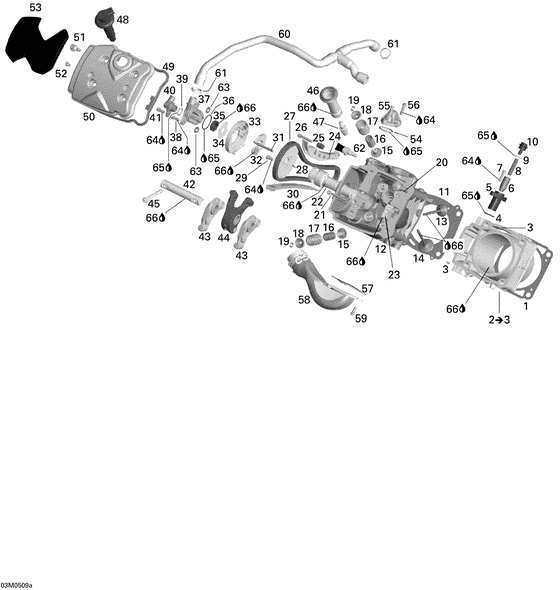

01- cylinder and cylinder head - front side Diagram Bombardier Legend
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420630080
Joint etanche *gasket
|
420630080 |
— | ||
|
2
|
2
420923947
Cylindre ass. *cylinder
Includes 2 to 3; |
420923947 |
— | ||
|
3
|
3
420929650 Goupille ass. *guide pin |
420929650 |
US $21.40 |
||
|
4
|
4
420430370
Joint torique *o ring
|
420430370 |
— | ||
| replacement | |||||
|
4
|
4
420430373 O-RING |
420430373 |
US $4.10 |
||
|
5
|
5
420236510 Carter tendeur *chain tensioner housing |
420236510 |
US $12.55 |
||
|
6
|
6
420236520
Plongeur tende.*chain tensioner plunger
|
420236520 |
— | ||
| replacement | |||||
|
6
|
6
420236521 CHAIN TENSIONER PLUNGER |
420236521 |
US $16.37 |
||
|
7
|
7
420440232
Vis *screw
|
420440232 |
— | ||
|
8
|
8
420238120 Ressort *spring |
420238120 |
US $9.45 |
||
|
9
|
9
420250890 Joint torique *o-ring |
420250890 |
US $3.94 |
||
|
10
|
10
420641150 Bouchon obtura.*plug screw |
420641150 |
US $9.45 |
||
|
11
|
11
420950660
Cylinder Head Gasket
|
420950660 |
— | ||
|
12
|
12
420613475 Tete-cylindre *head-cylinder |
420613475 |
US $1,001.61 |
||
|
13
|
13
420254027 Soupape echap. *exhaust valve |
420254027 |
US $98.48 |
||
|
14
|
14
420254290
Soupape admis. *intake valve
|
420254290 |
— | ||
| replacement | |||||
|
14
|
14
420254293
Soupape admis. *intake valve
|
420254293 |
— | ||
|
15
|
15
420630200
Anneau etanche *valve stem seal
|
420630200 |
— | ||
| replacement | |||||
|
15
|
15
420630202 VALVE STEM SEAL |
420630202 |
US $9.32 |
||
|
16
|
16
420838280 Ressort soupape*valve spring inside |
420838280 |
US $14.14 |
||
|
17
|
17
420238180 Ressort soupape*valve spring |
420238180 |
US $17.58 |
||
|
18
|
18
420254280
Barrure ressort*valve spring retainer
|
420254280 |
— | ||
| replacement | |||||
|
18
|
18
420254281
Barrure ressort*valve spring retainer
|
420254281 |
— | ||
|
19
|
19
420253645 Clavette soupa.*valve cotter |
420253645 |
US $9.45 |
||
|
20
|
20
420641020 Screw |
420641020 |
US $13.12 |
||
|
21
|
21
420440612 Screw |
420440612 |
US $9.45 |
||
|
22
|
22
420837575 Arbre came av. *camshaft front |
420837575 |
US $609.93 |
||
|
23
|
23
420851692
Guide arbre cam*camshaft guide
|
420851692 |
— | ||
| replacement | |||||
|
23
|
23
420851693
Guide arbre cam*camshaft guide
|
420851693 |
— | ||
|
24
|
24
420236540 Guide tendeur *chain tension guide |
420236540 |
US $17.58 |
||
| replacement | |||||
|
24
|
24
420236541 Guide tendeur *chain tension guide |
420236541 |
from US $17.58 |
||
|
25
|
25
420247100 Manchon espace.*distance sleeve |
420247100 |
US $13.21 |
||
|
26
|
26
420440272 Screw |
420440272 |
US $1.79 |
||
|
27
|
27
420297957 Chaine arbre ca*camshaft chain |
420297957 |
US $111.15 |
||
|
28
|
28
420254307 Engre.distri.38*timing gear 38 t |
420254307 |
US $62.17 |
||
|
29
|
29
420841339
Screw
|
420841339 |
— | ||
|
30
|
30
420236500 Guide de chaine*chain guide |
420236500 |
US $15.35 |
||
| replacement | |||||
|
30
|
30
420236501 Guide de chaine*chain guide |
420236501 |
from US $15.35 |
||
|
31
|
31
420220790
Arbre deco *deko shaft
|
420220790 |
— | ||
|
32
|
32
420231064
Masse centrifu.*centrifugal weight
|
420231064 |
— | ||
|
33
|
33
420660034
Couvercle *cover
|
420660034 |
— | ||
| replacement | |||||
|
33
|
33
420660037 Couvercle *cover |
420660037 |
US $25.31 |
||
|
34
|
34
420627494 Rondelle butee *thrust washer |
420627494 |
US $9.45 |
||
|
35
|
35
420630125 Anneau etan.v *v-ring |
420630125 |
US $12.55 |
||
|
36
|
36
420950870 Joint torique *o-ring |
420950870 |
US $6.95 |
||
|
37
|
37
420610272 Couvercle arbre*camshaft cover |
420610272 |
US $16.07 |
||
|
38
|
38
420440162 Vis hexalob.epa*screw-torx flange |
420440162 |
US $4.10 |
||
|
39
|
39
420430220 Joint torique *o ring |
420430220 |
US $50.40 |
||
|
40
|
40
420660275 Couvercle conn.*connecting cover |
420660275 |
US $34.65 |
||
|
41
|
41
420440162 Vis hexalob.epa*screw-torx flange |
420440162 |
US $4.10 |
||
|
42
|
42
420854599 Arbre culbuteur*rockerarmshaft assy |
420854599 |
US $60.13 |
||
|
43
|
43
420254326
Culbuteur echap*rockerarm assy exhaust
|
420254326 |
— | ||
| replacement | |||||
|
43
|
43
420254329 Culbuteur echap*rocker arm exhaust |
420254329 |
US $151.15 |
||
|
44
|
44
420254315
Culbuteur admi.*rockerarm assy inlet
|
420254315 |
— | ||
| replacement | |||||
|
44
|
44
420254316 Culbuteur admi.*rockerarm assy inlet |
420254316 |
US $198.93 |
||
|
45
|
45
420641080 Screw |
420641080 |
US $6.85 |
||
|
46
|
46
420851750
Tube bougie al.*spark plug pipe
|
420851750 |
— | ||
| replacement | |||||
|
46
|
46
420851754 SPARK PLUG PIPE |
420851754 |
from US $30.19 |
||
|
47
|
47
707000246
Bougie dcp-r8e *plug-spark dcp-r8e
|
707000246 |
— | ||
| replacement | |||||
|
47
|
47
715900637 Spark Plug |
715900637 |
US $32.84 |
||
|
48
|
48
420664020
Bobine allumage*ignition coil
|
420664020 |
— | ||
| replacement | |||||
|
48
|
48
296000307 IGNITION COIL KIT |
296000307 |
US $115.06 |
||
|
49
|
49
420630071 Anneau etanchep*ring sealing |
420630071 |
US $20.45 |
||
|
50
|
50
420610185
Couvercle sou. *valve cover
|
420610185 |
— | ||
|
51
|
51
420440307
Screw
|
420440307 |
— | ||
|
52
|
52
420641488 Screw |
420641488 |
US $7 |
||
|
53
|
53
420660201
Couvercle sou. *valve cover
|
420660201 |
— | ||
|
54
|
54
420950890 Joint torique *o ring |
420950890 |
US $5.71 |
||
|
55
|
55
420811700
Couvercle con. *connecting cover
|
420811700 |
— | ||
|
56
|
56
420440232
Vis *screw
|
420440232 |
— | ||
|
57
|
57
420950680
Anneau etanche *gasket
|
420950680 |
— | ||
|
58
|
58
420973781
Connecteur ech.*exhaust manifold assy.
|
420973781 |
— | ||
|
59
|
59
420440162 Vis hexalob.epa*screw-torx flange |
420440162 |
US $4.10 |
||
|
60
|
60
420660713 Hose ass. *air vent line assy |
420660713 |
US $121.33 |
||
|
61
|
61
420853153 Bride cerrage *clamp |
420853153 |
US $8.13 |
||
|
62
|
62
420222425
Capteur temp. *temperature sensor
|
420222425 |
— | ||
|
63
|
63
420230415 Rondelle etanc.*washer-seal |
420230415 |
US $2.33 |
||
|
64
|
64
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
65
|
65
293550030 Graisse *grease |
293550030 |
US $36.06 |
||
|
66
|
66
293600054
Huile 4t 12x1 * oil 4t 12x1 synth 0w40
|
293600054 |
— | ||
