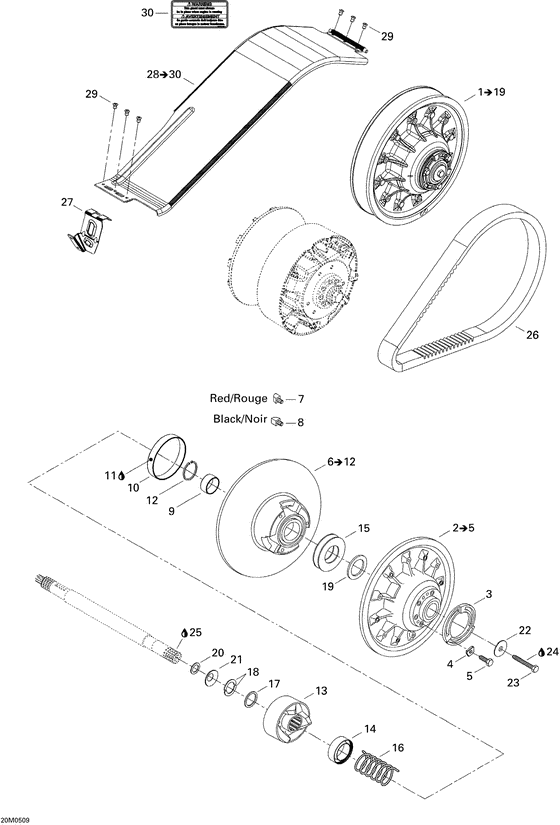

05- driven pulley Diagram Bombardier Legend
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
417126603
Flasque fixe as*flange-fix.assy
Includes 2 to 5; |
417126603 |
— | ||
| replacement | |||||
|
2
|
2
417126807 Flasque fixe as*flange-fix.assyIncludes 2 to 5; |
417126807 |
US $320.25 |
||
|
3
|
3
415005800
Bague ajustem. *ring-adjust.
|
415005800 |
— | ||
|
4
|
4
415005900 Cale de reglage*shim-adjust. |
415005900 |
US $4.05 |
||
|
5
|
5
207162544 Screw-hex.cap din.933 |
207162544 |
US $14.60 |
||
|
5
|
5
207162244 Screw-hex.cap din.933 |
207162244 |
US $3.83 |
||
|
6
|
6
417126605
Flasque coul.as*flange-slid.as
Includes 6 to 12; |
417126605 |
— | ||
| replacement | |||||
|
6
|
6
417126909 Flasque coul.as*flange-slid.asIncludes 6 to 12; |
417126909 |
US $350.85 |
||
|
7
|
7
417126373
Gliss.came arr.*shoe-cam slide rear
|
417126373 |
— | ||
|
8
|
8
417126374 Gliss. came av.*shoe-cam slide front |
417126374 |
US $4.08 |
||
|
10
|
10
414978100
Coussinet *bushing
|
414978100 |
— | ||
| replacement | |||||
|
10
|
10
417126902 Coussinet *coussinet |
417126902 |
US $45.56 |
||
|
11
|
11
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
12
|
12
371911200 Anneau retenue *circlip |
371911200 |
US $21.25 |
||
|
13
|
13
417126721 Came ass. *cam-ass. |
417126721 |
US $218.25 |
||
|
14
|
14
415006000 Protecteur *guard |
415006000 |
US $8.13 |
||
|
15
|
15
504099600 Rondelle butee *washer-stopper |
504099600 |
US $6.07 |
||
|
16
|
16
417126735 Ressort rappel *release spring |
417126735 |
US $37.71 |
||
|
17
|
17
417126733 Entretoise *spacer |
417126733 |
US $13.21 |
||
|
18
|
18
417126734 Demi-cle *half-key |
417126734 |
US $8.13 |
||
|
19
|
19
504112300 Cale epaisseur *shim |
504112300 |
US $70.90 |
||
|
20
|
20
417300231
Entretoise *spacer
|
417300231 |
— | ||
| replacement | |||||
|
20
|
20
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
21
|
21
417300238 Protecteur *protector |
417300238 |
US $8.13 |
||
|
22
|
22
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
23
|
23
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
24
|
24
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
25
|
25
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
26
|
26
417300197 Courroie *belt-drive |
417300197 |
US $150.13 |
||
|
27
|
27
417300172
Attache *bracket
|
417300172 |
— | ||
|
28
|
28
417300169
Garde-courr.ass*guard-belt assy
Includes 28 to 30; |
417300169 |
— | ||
|
29
|
29
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
30
|
30
516001190
Etiquette secur*security-label
|
516001190 |
— | ||
| replacement | |||||
|
30
|
30
516002670 Etiquette secur*security-label |
516002670 |
US $0.02 |
||
