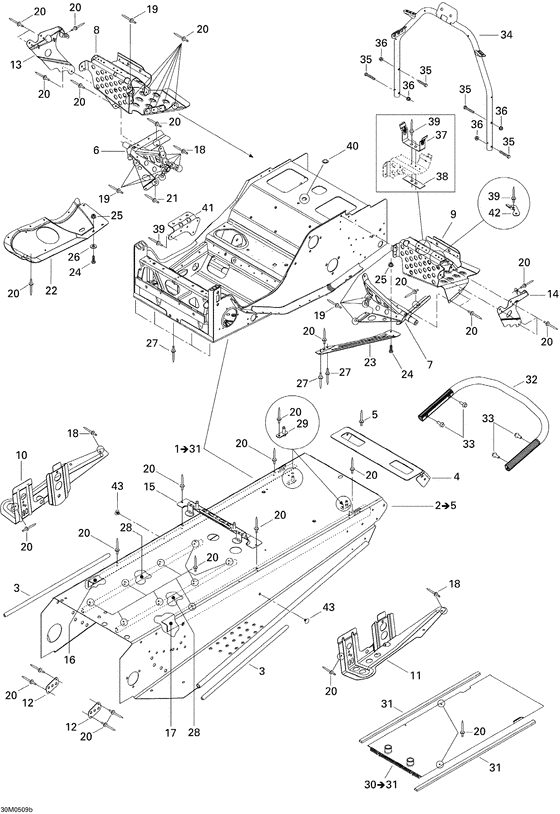

09- frame, 1 passenger seat Diagram Bombardier Legend
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415128760
Chassis *frame service
Includes 1 to 31; |
415128760 |
— | ||
|
2
|
2
415128763
Tunnel forme *frame-forming
Includes 2 to 5; |
415128763 |
— | ||
|
3
|
3
518304746 Renf.marche-pie*reinf.-foot. |
518304746 |
US $31.59 |
||
|
4
|
4
518321303 Capuchon arr. *cap-rear |
518321303 |
US $54.03 |
||
|
5
|
5
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
6
|
6
518320506
Support droit *rh.support
|
518320506 |
— | ||
|
7
|
7
518320507 Support gauche *lh.support |
518320507 |
US $138.69 |
||
|
8
|
8
518323563
Repose-pied dr.*rh.footrest
|
518323563 |
— | ||
|
9
|
9
518323564 Repose-pied ga.*lh.footrest |
518323564 |
US $76.45 |
||
|
10
|
10
518323315 Attache susp.dr*rh slide bracket weld |
518323315 |
US $62.17 |
||
|
11
|
11
518323318 Attache susp.ga*lh slide bracket |
518323318 |
US $58.09 |
||
|
12
|
12
518201321 Plaque renfort *plate-reinf. |
518201321 |
US $8.38 |
||
|
13
|
13
518321305 Renf.rep.-pi.dr*reinf.-footrest rh |
518321305 |
US $16.76 |
||
|
14
|
14
518321307 Renf.rep.-pi.ga*reinf.-footrest lh |
518321307 |
US $16.76 |
||
|
15
|
15
518321510 Att.reserv.p. *brkt-tank paint |
518321510 |
US $23.41 |
||
|
16
|
16
518323193
Renfort *reinforcement
|
518323193 |
— | ||
|
17
|
17
518323195
Renfort *reinforcement
|
518323195 |
— | ||
|
18
|
18
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
19
|
19
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
20
|
20
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
21
|
21
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
22
|
22
518322636 Plaque coque dr*plate-pan bott.rh |
518322636 |
US $33.61 |
||
|
23
|
23
518322119 Plaque renf.ga.*plate-reinf.lh |
518322119 |
US $14.67 |
||
|
24
|
24
207152044 Screw-hex.cap din.933 |
207152044 |
US $11.70 |
||
|
25
|
25
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
26
|
26
391301700
Rondelle *washer
|
391301700 |
— | ||
|
27
|
27
390910300 Rivet henrob *rivet-henrob |
390910300 |
US $17.75 |
||
|
28
|
28
518321543
Protect. tunnel*protect.-frame
|
518321543 |
— | ||
|
29
|
29
518323321 Attache siege s*seat bracke weld |
518323321 |
US $11.49 |
||
|
30
|
30
518323130 Radiateur arr.s*rad.-rear weld.Includes 30 to 31; |
518323130 |
US $680.29 |
||
|
31
|
31
415012300 Protecteur *protector |
415012300 |
US $18.33 |
||
|
32
|
32
518322708 Pare-chocs arr.*bumper-rear |
518322708 |
US $97.89 |
||
|
33
|
33
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
34
|
34
518322755
Supp.guidon sou*supp-handle weld.
|
518322755 |
— | ||
|
35
|
35
207663544 Screw-hex.flange din.6921 |
207663544 |
US $29.25 |
||
|
36
|
36
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
37
|
37
518202100 Attache gard.co*brkt-guard belt |
518202100 |
US $15.73 |
||
|
38
|
38
518207500 Renfort *reinforcement |
518207500 |
US $8.38 |
||
|
39
|
39
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
40
|
40
414859400 Bouchon *cap |
414859400 |
US $30.10 |
||
|
41
|
41
518322635
Support silenc.*support-muffler
|
518322635 |
— | ||
|
42
|
42
518322031 Attache trousse*bracket-tool kit |
518322031 |
US $5.07 |
||
|
43
|
43
518321954 Attache panneau*panel-fastener |
518321954 |
US $48.05 |
