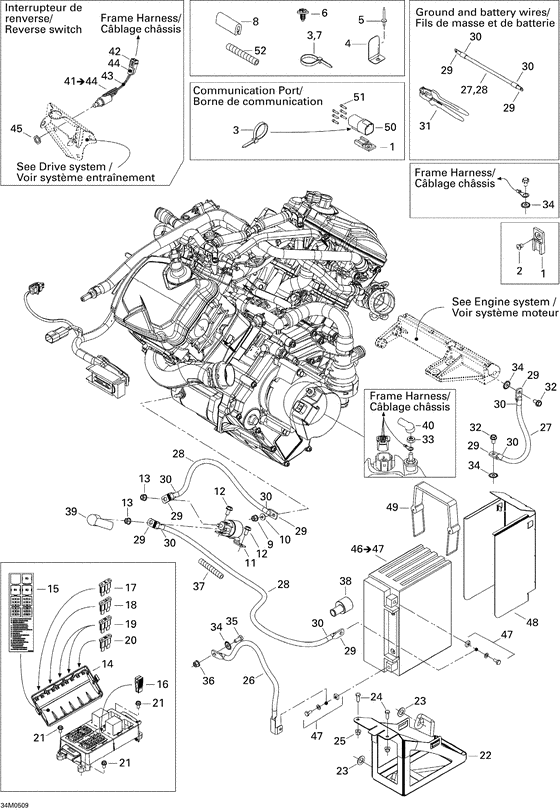

10- battery and starter Diagram Bombardier Legend
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515175917 Clip *clip |
515175917 |
US $11.17 |
||
|
2
|
2
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
3
|
3
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
4
|
4
518322530
Patte de verrouillage
|
518322530 |
— | ||
|
5
|
5
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
6
|
6
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
7
|
7
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
7
|
7
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
7
|
7
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
8
|
8
271000110 Moul.protect. *trim-protect. |
271000110 |
US $22.93 |
||
|
9
|
9
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
10
|
10
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
11
|
11
515176011 Solenoide dem. *relay-starter |
515176011 |
US $69.21 |
||
|
12
|
12
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
13
|
13
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
14
|
14
515176066
Couvercle *cover
|
515176066 |
— | ||
|
15
|
15
516001613
Decal.fusible *decal-fuse
|
516001613 |
— | ||
|
16
|
16
515175811 Pince fusible *tool-fuse |
515175811 |
US $8.13 |
||
|
17
|
17
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $21.15 |
||
|
18
|
18
278000704 Fusible 7.5amp.*fuse-7.5 amp. |
278000704 |
US $19.45 |
||
|
19
|
19
409003900 Fusible 20a *fuse 20a |
409003900 |
US $21.15 |
||
|
20
|
20
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
21
|
21
210251680 Screw-forming hex.hd.fl.gm6174m |
210251680 |
US $19.60 |
||
|
22
|
22
515175954
Support batter.*battery support
|
515175954 |
— | ||
|
23
|
23
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
24
|
24
207151444 Screw-hex.cap din.933 |
207151444 |
US $11.20 |
||
|
25
|
25
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
26
|
26
515175962
Fil de masse *wire-ground
|
515175962 |
— | ||
|
27
|
27
278001680
Cable batt.noir*cable-batt.ground
|
278001680 |
— | ||
|
28
|
28
278001690
Cable batt.roug*cable-batt.red
|
278001690 |
— | ||
|
29
|
29
278001686
Cosse 45 g/t *terminal-45 deg.
|
278001686 |
— | ||
|
29
|
29
278001687
Cosse 90 g/t *terminal-90 deg.
|
278001687 |
— | ||
|
29
|
29
278001688 Cosse plate *terminal-flat |
278001688 |
US $3.89 |
||
|
29
|
29
278001776
Cosse plate p/t*terminal-flat
|
278001776 |
— | ||
|
29
|
29
278001682
Cosse plate p/t*terminal-flat
|
278001682 |
— | ||
|
29
|
29
278001683
Cosse 45 p/t *terminal-45 deg.
|
278001683 |
— | ||
|
29
|
29
278001684
Cosse 90 p/t *terminal-90 deg.
|
278001684 |
— | ||
|
29
|
29
278001685
Cosse plate g/t*terminal-flat
|
278001685 |
— | ||
|
30
|
30
278001692
Gaine protect. *tubing-prot.
|
278001692 |
— | ||
| replacement | |||||
|
30
|
30
710000483 Gaine thermo. *shrink tubing |
710000483 |
US $75.45 |
||
|
31
|
31
529035730
Pince sertissag*plier-crimp
|
529035730 |
— | ||
|
32
|
32
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
33
|
33
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
34
|
34
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
35
|
35
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
36
|
36
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
37
|
37
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
38
|
38
515175919 Capuchon prot. *protector cap |
515175919 |
US $19.47 |
||
|
39
|
39
278001771 Capuchon batt. *cap-wire batt. |
278001771 |
US $29.15 |
||
|
40
|
40
710000526 Capuchon *cap |
710000526 |
US $12.22 |
||
|
41
|
41
515175967
Interrupteur as*switch-assy
Includes 41 to 44; |
515175967 |
— | ||
|
42
|
42
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
43
|
43
293740005
Ruban de vinyl 3/4
|
293740005 |
— | ||
|
44
|
44
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
45
|
45
250100012 Ecrou laiton *nut-brass |
250100012 |
US $7.25 |
||
|
46
|
46
410922962 Batterie ytx24hl*battery 21ampsIncludes 46 to 47; |
410922962 |
US $240.86 |
||
|
47
|
47
295500849
Ens. boulon ba*fastener battery kit
|
295500849 |
— | ||
|
48
|
48
515175616 Deflecteur *deflector |
515175616 |
US $51.97 |
||
|
49
|
49
515175955
Sangle * strap
|
515175955 |
— | ||
| replacement | |||||
|
49
|
49
605356180 BATTERY STRAP |
605356180 |
US $22.39 |
||
|
50
|
50
515175668 Bloc 6 circ.fem*housing-tab |
515175668 |
US $16.92 |
||
|
51
|
51
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
52
|
52
515175442
Gaine *housing
Sport Models; |
515175442 |
— | ||
