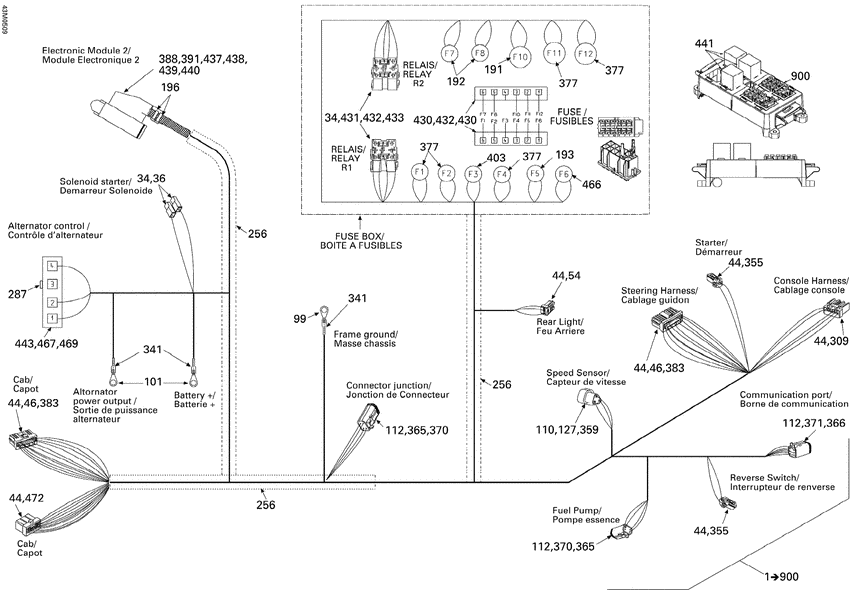

10- electrical harness Diagram Bombardier Legend
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176007
Cablage chassis*harness-frame
Includes 1 to 900; |
515176007 |
— | ||
|
34
|
34
409010100 Cosse femelle *terminal-femal. |
409010100 |
US $36.20 |
||
|
36
|
36
409010400 Logement femel.*housing-female |
409010400 |
US $48.80 |
||
|
44
|
44
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
46
|
46
515175282 Cosse femelle *treminal-femal. |
515175282 |
US $96.10 |
||
|
54
|
54
515175495 Logement femel.*housing-female |
515175495 |
US $18.12 |
||
|
99
|
99
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
101
|
101
278001392 Cosse a anneau *barrel-open |
278001392 |
US $62.10 |
||
|
110
|
110
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
112
|
112
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
122
|
122
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
127
|
127
409207600 Verrou male *lock-male |
409207600 |
US $42.30 |
||
|
191
|
191
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
192
|
192
409003900 Fusible 20a *fuse 20a |
409003900 |
US $21.15 |
||
|
193
|
193
409012800 Fusible 1a *fuse-1a |
409012800 |
US $16.76 |
||
|
196
|
196
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
206
|
206
409004200 Cosse femele *terminal-femal. |
409004200 |
US $29.35 |
||
|
256
|
256
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
287
|
287
710000080 Bouchon *cap |
710000080 |
US $9.62 |
||
|
298
|
298
293740005
Ruban de vinyl 3/4
|
293740005 |
— | ||
|
309
|
309
515175543 Log.term.femel.*housing-term.female |
515175543 |
US $8.38 |
||
|
355
|
355
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
359
|
359
515175666 Logement male *housing-male |
515175666 |
US $15.74 |
||
|
365
|
365
515175672 Bloc 4 circ.mal*housing-tab |
515175672 |
US $13.60 |
||
|
366
|
366
515175673 Bloc 6 circ.mal*housing-tab |
515175673 |
US $15.74 |
||
|
370
|
370
515175677 Cale 4 circ.mal*wedge-4 ways m |
515175677 |
US $6.26 |
||
|
371
|
371
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
377
|
377
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $21.15 |
||
|
383
|
383
515175719 Logement femel.*housing-female |
515175719 |
US $17.82 |
||
|
387
|
387
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
388
|
388
278001750 Cosse femelle *terminal-femal |
278001750 |
US $15.55 |
||
|
391
|
391
278001751 Bloc 41circ.mal*housing-tab |
278001751 |
US $24.11 |
||
|
403
|
403
278000704 Fusible 7.5amp.*fuse-7.5 amp. |
278000704 |
US $19.45 |
||
|
430
|
430
515175857 Sopport fusible*fuse holder |
515175857 |
US $10.47 |
||
|
431
|
431
515175856 Support relais *relay holder |
515175856 |
US $10.47 |
||
|
432
|
432
515175855 Terminal femel.*female terminal |
515175855 |
US $73.10 |
||
|
433
|
433
515175854 Terminal femel.*female terminal |
515175854 |
US $47 |
||
|
437
|
437
515175886 Joint *seal |
515175886 |
US $6.26 |
||
|
438
|
438
515175883 Loquet *latch |
515175883 |
US $7.31 |
||
|
439
|
439
515175884 Verrou *lock |
515175884 |
US $6.26 |
||
|
440
|
440
515175885 Couvercle *cover |
515175885 |
US $6.26 |
||
|
441
|
441
410113604
Relais *relay
|
410113604 |
— | ||
|
443
|
443
710000335 Cosse femelle *female terminal |
710000335 |
US $29.20 |
||
|
466
|
466
415128525
Fusible o.5 ampere
|
415128525 |
— | ||
|
467
|
467
515175978
Logement pt fem*housing pt fem
|
515175978 |
— | ||
|
469
|
469
515175979 Joint *seal |
515175979 |
US $9.40 |
||
|
472
|
472
415128527
Logement *housing
|
415128527 |
— | ||
|
900
|
900
515176065 Boite + fusible* |
515176065 |
US $27.49 |
