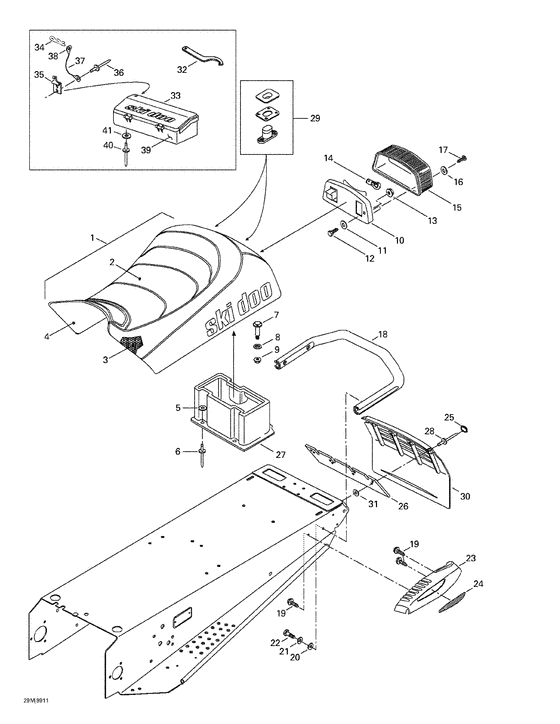

09- seat and accessories Diagram Bombardier Mach
- Year
- 1999
- Sales region
- General
- Model
- Mach 1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
572092300
Enjoliveur ga. *lh.moulding
|
572092300 |
— | ||
| replacement | |||||
|
|
861777800
Enjoliveur ga. *mould.-lh black
|
861777800 |
— | ||
|
|
529035592
Trousse outils *tool kit
Mach 1-R.; |
529035592 |
— | ||
|
|
572103805
Garde-neige *guard-snow
Mach 1-R.; |
572103805 |
— | ||
|
|
516000238
Reflecteur ga. *reflector-lh
|
516000238 |
— | ||
|
|
516000241
Reflect.arr.dr.*reflect.-rear rh
|
516000241 |
— | ||
|
|
516000242
Reflect.arr. ga*reflect.-rear lh
|
516000242 |
— | ||
|
2
|
2
510003594
Housse de siege*cover-seat
|
510003594 |
— | ||
|
3
|
3
415046302
Mousse de siege*foam-seat
|
415046302 |
— | ||
|
4
|
4
572088200
Sous-siege *sub-seat
|
572088200 |
— | ||
|
5
|
5
517297900 Rondelle *washer-flat |
517297900 |
US $14.60 |
||
|
6
|
6
390409600
Rivet-pop 3/16 *rivet-pop 3/16
|
390409600 |
— | ||
|
7
|
7
732601221
Bolt-tee
|
732601221 |
— | ||
|
8
|
8
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
9
|
9
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
9
|
9
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
10
|
10
414513600
Boitier lumiere*housing-20/18
|
414513600 |
— | ||
| replacement | |||||
|
10
|
10
510004061 Boitier lumiere*housing-20/18 |
510004061 |
US $45.85 |
||
|
11
|
11
517297900 Rondelle *washer-flat |
517297900 |
US $14.60 |
||
|
12
|
12
222053065
Screw-hex.cap din.931
|
222053065 |
— | ||
| replacement | |||||
|
12
|
12
207053044 Screw-hex.cap din.931 |
207053044 |
US $15.10 |
||
|
13
|
13
228751045
Nut-flange elastic din.6926
|
228751045 |
— | ||
| replacement | |||||
|
13
|
13
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
14
|
14
410504000
Bulb -tail lamp 12v/21/5w
|
410504000 |
— | ||
| replacement | |||||
|
14
|
14
520000758 Ampoule *bulb |
520000758 |
US $160.50 |
||
|
15
|
15
414513700 Lens 21/68 |
414513700 |
US $31.06 |
||
|
16
|
16
414516400 Washer |
414516400 |
US $0.82 |
||
|
17
|
17
732601253
Screw-tapp.pan.hd.ph.din.7981c
|
732601253 |
— | ||
| replacement | |||||
|
17
|
17
209632540 Screw-tapp.pan.hd.ph.din.7981c |
209632540 |
US $1.31 |
||
|
18
|
18
518314000
Pare-chocs *bumper
|
518314000 |
— | ||
| replacement | |||||
|
18
|
18
518322708 Pare-chocs arr.*bumper-rear |
518322708 |
US $97.89 |
||
|
19
|
19
365901100 Screw-hex.taping 12 |
365901100 |
US $15.60 |
||
|
20
|
20
224081171
Washer-flat din.125a
|
224081171 |
— | ||
| replacement | |||||
|
20
|
20
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
21
|
21
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
21
|
21
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
22
|
22
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
23
|
23
572092200
Enjoliveur dr. *rh.moulding
|
572092200 |
— | ||
| replacement | |||||
|
23
|
23
861777700 Enjoliveur dr. *mould.-rear rh black |
861777700 |
US $36.69 |
||
|
24
|
24
516000237
Reflecteur dr. *reflector-rh
|
516000237 |
— | ||
|
25
|
25
415073300 Capuchon *cap |
415073300 |
US $29.15 |
||
|
26
|
26
572108200 Renfort *reinforcement |
572108200 |
US $14.67 |
||
|
27
|
27
572106300
Coffre arriere *trunk-rear
|
572106300 |
— | ||
|
28
|
28
390908000
Rivet-pop 3/16 *rivet-pop 3/16
|
390908000 |
— | ||
| replacement | |||||
|
28
|
28
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
|
29
|
29
414728000 Boucle de siege*buckle-seat |
414728000 |
US $14.25 |
||
|
30
|
30
572103800
Garde-neige *guard-snow
Mach 1.; |
572103800 |
— | ||
|
31
|
31
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
32
|
32
529034100 Cle de reglage *wrench-adj. |
529034100 |
US $9.13 |
||
|
33
|
33
520000107
Coffre ass. *box-assy.
Includes 33 - 38.; |
520000107 |
— | ||
|
34
|
34
414112400
Goup.surete *pin-hair
|
414112400 |
— | ||
|
35
|
35
517168500
Loquet *latch
|
517168500 |
— | ||
|
37
|
37
414407400
Wire
|
414407400 |
— | ||
|
38
|
38
561502800
Cosse a anneau *barrel-open
|
561502800 |
— | ||
|
39
|
39
529032000
Trousse outils *tool kit
Mach 1.; |
529032000 |
— | ||
|
40
|
40
390409600
Rivet-pop 3/16 *rivet-pop 3/16
|
390409600 |
— | ||
|
41
|
41
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
