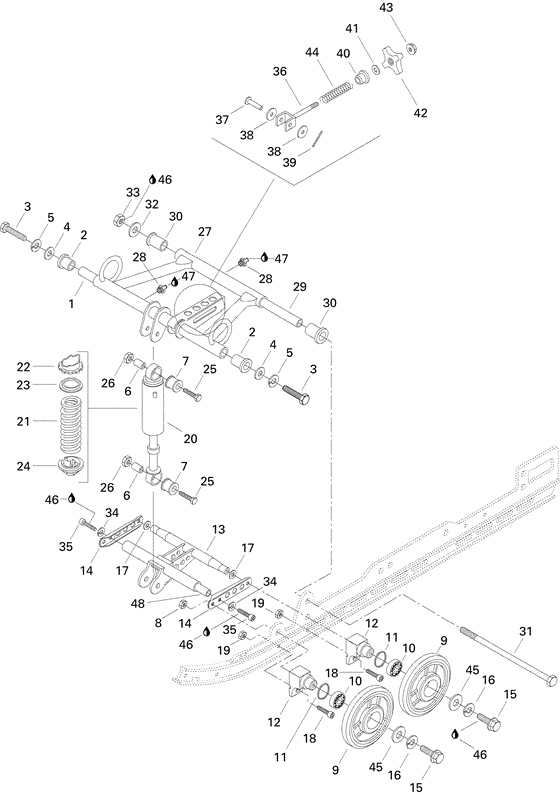

08- front arm mach 1, z Diagram Bombardier Mach
- Year
- 1996
- Sales region
- General
- Model
- Mach Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503142100
Axe superieur *axle-upper
|
503142100 |
— | ||
|
2
|
2
414530000 Coussinet *cushion |
414530000 |
US $8.13 |
||
|
3
|
3
222005565
Screw-hex.cap iso.4014
|
222005565 |
— | ||
| replacement | |||||
|
3
|
3
207005544 Screw-hex.cap iso.4014 |
207005544 |
US $14.35 |
||
|
4
|
4
224001211
Washer-flat din.125a
|
224001211 |
— | ||
| replacement | |||||
|
4
|
4
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
5
|
5
224701188
Washer-lock spring din.128a-a2
|
224701188 |
— | ||
| replacement | |||||
|
5
|
5
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
6
|
6
503163700
Entretoise
|
503163700 |
— | ||
|
7
|
7
414942300 Coussinet |
414942300 |
US $3.89 |
||
|
8
|
8
228501045
Nut-locking elastic din.982
|
228501045 |
— | ||
| replacement | |||||
|
8
|
8
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
9
|
9
570045223
Roue de support 135 (rouge)
|
570045223 |
— | ||
|
10
|
10
405404500
Roulement bille*ball bearing
|
405404500 |
— | ||
| replacement | |||||
|
10
|
10
293350055
Ball bearing
|
293350055 |
— | ||
|
11
|
11
371901700 Circlip int. *circlip-int. |
371901700 |
US $58.30 |
||
|
12
|
12
503140200
Support usine *support-mach.
|
503140200 |
— | ||
|
13
|
13
503163900
Attache av.sou.*bracket-fr weld
|
503163900 |
— | ||
|
14
|
14
503149300
Plaque de retenue
|
503149300 |
— | ||
|
15
|
15
222009065
Screw-hex.cap iso.4014
|
222009065 |
— | ||
| replacement | |||||
|
15
|
15
207009044 Screw-hex.cap iso.4014 |
207009044 |
US $7.77 |
||
|
16
|
16
224701188
Washer-lock spring din.128a-a2
|
224701188 |
— | ||
| replacement | |||||
|
16
|
16
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
17
|
17
224001211
Washer-flat din.125a
|
224001211 |
— | ||
| replacement | |||||
|
17
|
17
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
18
|
18
222982565
Screw-socket hd.din.912
|
222982565 |
— | ||
| replacement | |||||
|
18
|
18
205082544 Screw-socket hd.din.912 |
205082544 |
US $14.80 |
||
|
19
|
19
228781045
Nut-flange elastic din.6926
|
228781045 |
— | ||
| replacement | |||||
|
19
|
19
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
20
|
20
414925000
Amortisseur *shock
|
414925000 |
— | ||
|
21
|
21
414877800
Ressort (noir)
|
414877800 |
— | ||
|
22
|
22
414762600
Bague reglage *ring-adjuster
|
414762600 |
— | ||
| replacement | |||||
|
22
|
22
505070150
Came 45 degres *cam 45 degres
|
505070150 |
— | ||
|
23
|
23
517184300
Guide ressort *guide-spring
|
517184300 |
— | ||
|
24
|
24
503149700
Butee ressort *stopper-spring
|
503149700 |
— | ||
|
25
|
25
222004565
Screw-hex.cap iso.4014
|
222004565 |
— | ||
| replacement | |||||
|
25
|
25
207004544 Screw-hex.cap iso.4014 |
207004544 |
US $21.80 |
||
|
26
|
26
228501045
Nut-locking elastic din.982
|
228501045 |
— | ||
| replacement | |||||
|
26
|
26
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
27
|
27
503157300
Bras avant
|
503157300 |
— | ||
|
28
|
28
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
29
|
29
503139400
Axe inferieur *axle-lower
|
503139400 |
— | ||
|
30
|
30
414794700
Coussinet *cushion
|
414794700 |
— | ||
|
31
|
31
503140800
Boulon m12
|
503140800 |
— | ||
|
32
|
32
224021251
Washer-flat din.125a
|
224021251 |
— | ||
| replacement | |||||
|
32
|
32
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
33
|
33
228521045
Nut-stop elastic din.985
|
228521045 |
— | ||
| replacement | |||||
|
33
|
33
232521414 Nut-stop elastic din.985 |
232521414 |
US $13.95 |
||
|
34
|
34
224701188
Washer-lock spring din.128a-a2
|
224701188 |
— | ||
| replacement | |||||
|
34
|
34
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
35
|
35
222903565
Screw-socket hd.din.912
|
222903565 |
— | ||
| replacement | |||||
|
35
|
35
205003544 Screw-socket hd.din.912 |
205003544 |
US $21.80 |
||
|
36
|
36
503141000
Attache en u so*bracket-u weld
|
503141000 |
— | ||
|
37
|
37
414803900
New Genuine Part
|
414803900 |
— | ||
|
38
|
38
224001211
Washer-flat din.125a
|
224001211 |
— | ||
| replacement | |||||
|
38
|
38
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
39
|
39
371801000 Goupille fendue*pin-cotter |
371801000 |
US $5.30 |
||
|
40
|
40
572043700
Glissiere adj. *runner-adj.
|
572043700 |
— | ||
|
41
|
41
224002251 Washer-flat |
224002251 |
US $9.80 |
||
|
42
|
42
572034000 Poignee ajust. *knob-adjuster |
572034000 |
US $9.78 |
||
|
43
|
43
732610042
Nut-stop elastic din.985
|
732610042 |
— | ||
| replacement | |||||
|
43
|
43
232501416 Nut-stop elastic din.985 |
232501416 |
US $9.60 |
||
|
44
|
44
414863500
Ressort
|
414863500 |
— | ||
|
45
|
45
503032900 Rondelle *washer |
503032900 |
US $42.30 |
||
|
46
|
46
413707400
Loctite 271 *loctite-271
|
413707400 |
— | ||
| replacement | |||||
|
46
|
46
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
47
|
47
413706100
Graisse lith. *grease lith.
|
413706100 |
— | ||
|
48
|
48
503149400
Axe
|
503149400 |
— | ||
