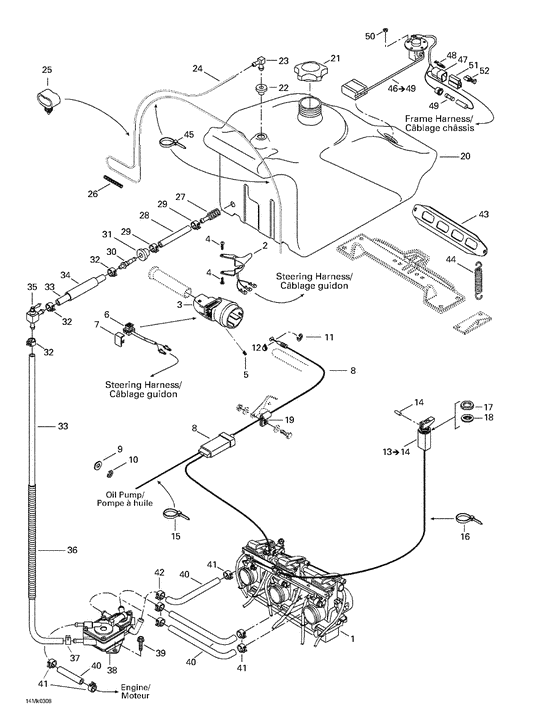

02- fuel system Diagram Bombardier Mach
- Year
- 2003
- Sales region
- General
- Model
- Mach Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
403138633
Ensemble carb. *kit-carb.-tm-38
|
403138633 |
— | ||
|
2
|
2
512059159
Manette ass. *handle-assy
|
512059159 |
— | ||
|
3
|
3
572098800
Logement acc. *housing-throttle
|
572098800 |
— | ||
|
4
|
4
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
5
|
5
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
6
|
6
512059482
Inter.urgence *switch-kill
|
512059482 |
— | ||
|
7
|
7
572100901 Couv.interrupt.*cover-switch |
572100901 |
US $14.35 |
||
|
8
|
8
512059389 Cable accelerat*cable-throttle |
512059389 |
US $97.89 |
||
|
9
|
9
414753300
Rondelle *washer
|
414753300 |
— | ||
|
10
|
10
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
11
|
11
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
12
|
12
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
13
|
13
561205500
Cable etrang. *cable-choke
Includes 13 - 14.; |
561205500 |
— | ||
|
14
|
14
372118400
Pin-spring
|
372118400 |
— | ||
|
15
|
15
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
16
|
16
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
17
|
17
512059364 Ecrou plastique*nut-plastic |
512059364 |
US $42 |
||
|
18
|
18
394103300
Washer-lock int.teeth
|
394103300 |
— | ||
|
19
|
19
414176000 Attache collier*open clamp |
414176000 |
US $27 |
||
|
20
|
20
513032926
Reservoir essen*tank-fuel
|
513032926 |
— | ||
|
21
|
21
513033024
Bouchon essence*cap-fuel
|
513033024 |
— | ||
|
22
|
22
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
23
|
23
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
24
|
24
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
25
|
25
513032923 Bride de tube *clamp-tube |
513032923 |
US $8.55 |
||
|
26
|
26
513032961
Ressort *spring
|
513032961 |
— | ||
|
27
|
27
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
28
|
28
415097800 Boyau polyure *hose-polyurethane |
415097800 |
US $4.30 |
||
|
29
|
29
513033010 Bride serrage *clamp |
513033010 |
US $42.75 |
||
|
30
|
30
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
31
|
31
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
32
|
32
414655700 Bride a ressort*clamp-spring |
414655700 |
US $9.50 |
||
|
33
|
33
709000022 Boyau 9.5mm. *hose-9.5mm. |
709000022 |
US $64.17 |
||
|
34
|
34
513033032
Boyau *hose
|
513033032 |
— | ||
|
35
|
35
415112200
Valve essence *valve-shutoff
|
415112200 |
— | ||
|
36
|
36
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
37
|
37
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
38
|
38
513032929 Pompe a essence*pump-fuel |
513032929 |
US $119.31 |
||
|
39
|
39
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
40
|
40
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
41
|
41
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
42
|
42
513033014
Bride a ressort*clamp-spring
|
513033014 |
— | ||
|
43
|
43
517249200
Support res.ess*support-tank fuel
|
517249200 |
— | ||
|
44
|
44
415107100 Ressort *spring |
415107100 |
US $82.10 |
||
|
45
|
45
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
46
|
46
415080800
Capt.niv.ess.as*sensor-fuel assy.
Includes 46 - 49.; |
415080800 |
— | ||
|
47
|
47
409204500
Logement male *housing-male
|
409204500 |
— | ||
|
49
|
49
410112400
Fusible 0.25amp*fuse-0.25amp.
|
410112400 |
— | ||
|
50
|
50
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
51
|
51
409204600 Logement femel.*housing-female |
409204600 |
US $40.50 |
||
|
52
|
52
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
