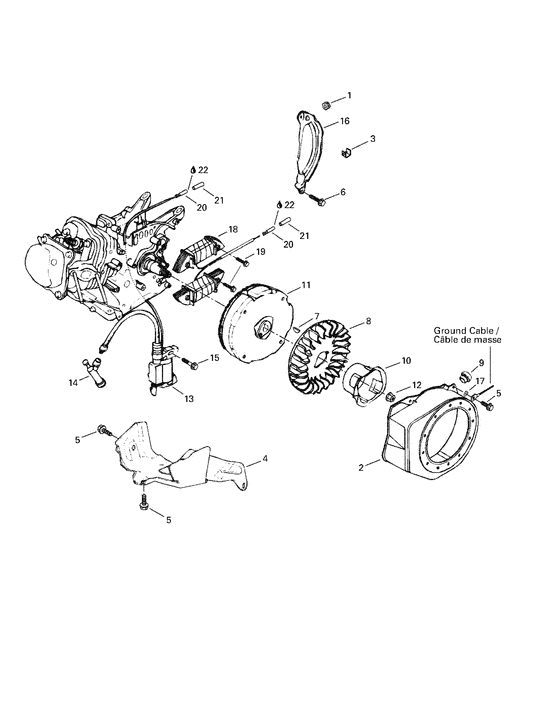

01- ignition coil, cooling system Diagram Bombardier Mini Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
H11347371300
Passe-fil *grommet
|
H11347371300 |
— | ||
|
2
|
2
512058981
Couvercle
|
512058981 |
— | ||
|
3
|
3
H90601ZH7013
Bride *clip
|
H90601ZH7013 |
— | ||
|
4
|
4
H19630ZH7000
Buse *shroud
|
H19630ZH7000 |
— | ||
|
5
|
5
H90013883000
Vis *screw
|
H90013883000 |
— | ||
|
6
|
6
H90022888010
Vis *screw fl.6x20
|
H90022888010 |
— | ||
|
7
|
7
H13331357000
Clavette *key
|
H13331357000 |
— | ||
|
8
|
8
H19511ZE0000
Ventilateur *fan
|
H19511ZE0000 |
— | ||
|
9
|
9
H81329567020
Bouchon *plug
|
H81329567020 |
— | ||
|
10
|
10
H28451ZH8003
Poulie *pulley starter
|
H28451ZH8003 |
— | ||
|
11
|
11
H31100ZE0811
Flywheel
|
H31100ZE0811 |
— | ||
|
12
|
12
H90201878003
Ecrou *nut 14mm
|
H90201878003 |
— | ||
|
13
|
13
H30500ZE1033
Bobine *coil assy.
|
H30500ZE1033 |
— | ||
| replacement | |||||
|
13
|
13
H30500ZE1063
Bobine *coil assy.
|
H30500ZE1063 |
— | ||
|
14
|
14
H30700ZE1013
Capuchon *cap assy.
|
H30700ZE1013 |
— | ||
|
15
|
15
H90121952000
Flanged bolt 6 x 25
|
H90121952000 |
— | ||
|
16
|
16
H19612ZH7810
New Genuine Part
|
H19612ZH7810 |
— | ||
|
17
|
17
217161600
Washer-lock serrated din.6798a-a2
|
217161600 |
— | ||
| replacement | |||||
|
17
|
17
234461608 Washer-lock serrated din.6798a-a2 |
234461608 |
US $7.40 |
||
|
18
|
18
H31510ZK7U50
Bobine *coil-assy
|
H31510ZK7U50 |
— | ||
|
19
|
19
H90015883000
Boulon 6x28 *screw 6x28
|
H90015883000 |
— | ||
|
20
|
20
290964068
Cosse femelle *terminal-femal
|
290964068 |
— | ||
| replacement | |||||
|
20
|
20
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
21
|
21
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
22
|
22
413701700
New Genuine Part
|
413701700 |
— | ||
