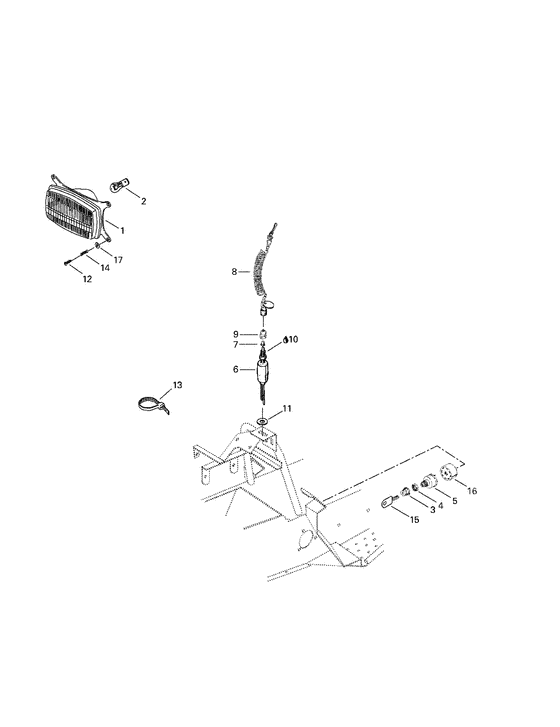

10- electrical system Diagram Bombardier Mini Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
410609200
Phare *headlamp
Includes 1 - 2.; |
410609200 |
— | ||
|
2
|
2
410609400
Ampoule *bulb
|
410609400 |
— | ||
|
3
|
3
570013700 Boot - switch |
570013700 |
US $52.35 |
||
|
4
|
4
410112100 Nut-face |
410112100 |
US $15.73 |
||
|
5
|
5
410111200
Inter.allumage *switch-ignit.
|
410111200 |
— | ||
| replacement | |||||
|
5
|
5
515176548
Starter switch, 3 pos.
|
515176548 |
— | ||
|
6
|
6
410106700
Inter.frein *switch-brake
|
410106700 |
— | ||
| replacement | |||||
|
6
|
6
515175571
Inter.frein *switch-brake
|
515175571 |
— | ||
|
7
|
7
570151100 Cap.plongeur *cap-plunger |
570151100 |
US $54.25 |
||
|
8
|
8
515175105
Capuchon ass. *cap-assy.
|
515175105 |
— | ||
|
9
|
9
515145900 Ecrou inter. *nut-switch |
515145900 |
US $52.35 |
||
|
10
|
10
413701700
New Genuine Part
|
413701700 |
— | ||
|
11
|
11
517302008
Entretoise *spacer
|
517302008 |
— | ||
|
12
|
12
732603002
Screw-plastite pan hd.ph.
|
732603002 |
— | ||
| replacement | |||||
|
12
|
12
243244040 Screw-plastite pan hd.ph. |
243244040 |
US $15.80 |
||
|
13
|
13
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
14
|
14
517168600 Ressort *spring |
517168600 |
US $36.04 |
||
|
15
|
15
414991700
Clef vierge *key-blank
|
414991700 |
— | ||
| replacement | |||||
|
15
|
15
415129350 Clef vierge *key-blank |
415129350 |
US $26.35 |
||
|
16
|
16
572150700 Bloc inter.all.*block-ign.swi. |
572150700 |
US $15.30 |
||
|
17
|
17
391301700
Rondelle *washer
|
391301700 |
— | ||
