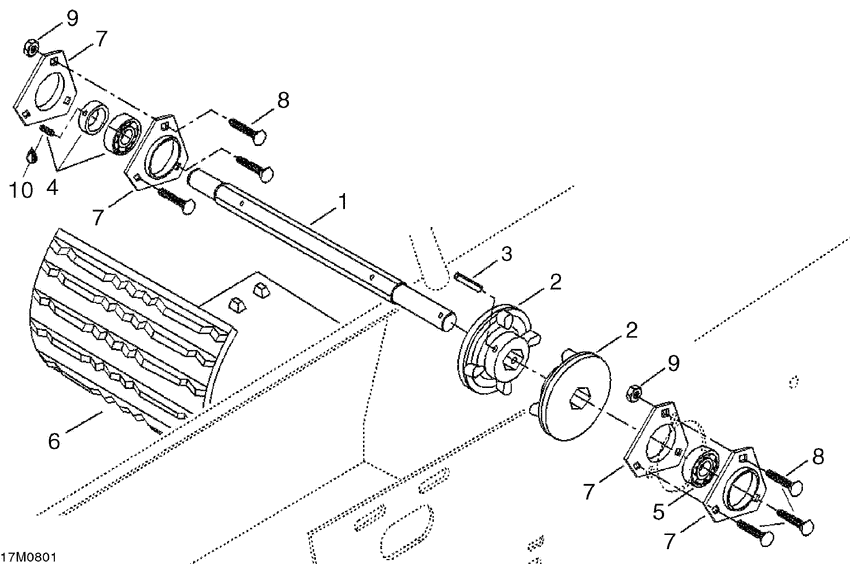

05- drive system Diagram Bombardier Mini Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
504152025
Arbre entrain. *axle-drive
|
504152025 |
— | ||
|
2
|
2
504151794
Barbotin 4d *sprocket 4th
|
504151794 |
— | ||
|
3
|
3
211400016 Pin-rolled m6x40 |
211400016 |
US $19.60 |
||
|
4
|
4
504152072
Roulement bille*ball bearing
|
504152072 |
— | ||
|
5
|
5
504152072
Roulement bille*ball bearing
|
504152072 |
— | ||
|
6
|
6
504152172 Chenille *track-assy. |
504152172 |
US $307.96 |
||
|
7
|
7
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
8
|
8
207781644 Bolt-carriage din.603 |
207781644 |
US $14.50 |
||
|
9
|
9
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
10
|
10
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
