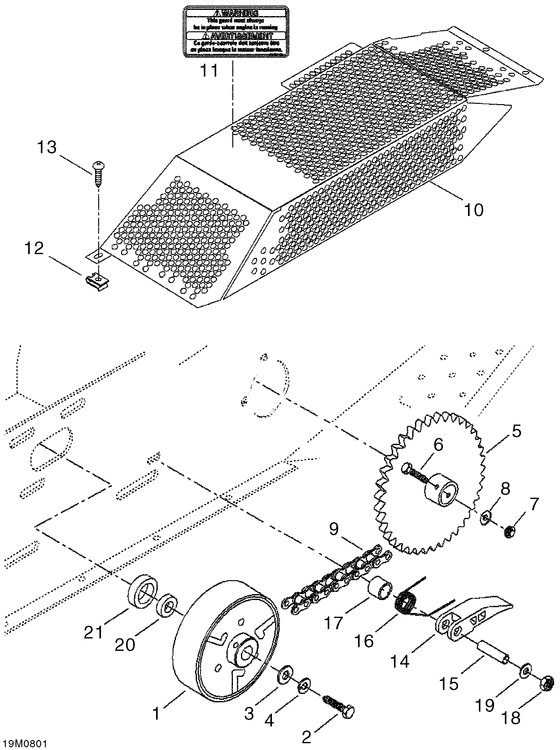

05- pulley system Diagram Bombardier Mini Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
417217200
Poulie motrice *pulley-drive
|
417217200 |
— | ||
|
2
|
2
309808900 Screw-hex.5/16-24 |
309808900 |
US $38.90 |
||
|
3
|
3
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
4
|
4
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
5
|
5
504149500
Pignon 48d.sou.*sprock.-48th w
|
504149500 |
— | ||
|
6
|
6
417126304 Vis *screw |
417126304 |
US $3.01 |
||
|
7
|
7
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
8
|
8
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
9
|
9
412107500
Chaine *chain-driving
|
412107500 |
— | ||
|
10
|
10
417300224
Garde chaine *chain guard
|
417300224 |
— | ||
|
11
|
11
516000131
Etiq.garde-poul*label-pull.guard
|
516000131 |
— | ||
|
12
|
12
417300005 Nut-spring 4.8 |
417300005 |
US $8.10 |
||
|
13
|
13
417300006 Screw-tapping 4,8 x 16 |
417300006 |
US $7.10 |
||
|
14
|
14
572041600
Tendeur chaine *tensioner
|
572041600 |
— | ||
|
15
|
15
504051600
Entretoise *spacer
|
504051600 |
— | ||
|
16
|
16
415123000
Ressort *spring
|
415123000 |
— | ||
|
17
|
17
504018200
Entretoise *spacer
|
504018200 |
— | ||
|
18
|
18
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
19
|
19
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
20
|
20
504150500 Rallonge *extension |
504150500 |
US $10.69 |
||
|
21
|
21
504150600
Entretoise *spacer
|
504150600 |
— |
