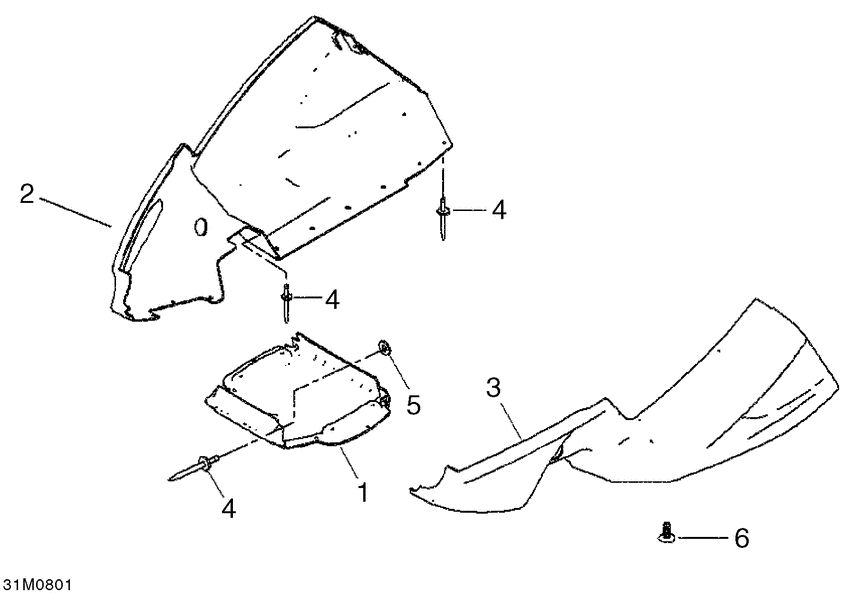

09- bottom pan Diagram Bombardier Mini Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
502006660
Nez *nose
|
502006660 |
— | ||
|
2
|
2
502006661 Coque dr. *pan-bottom rh |
502006661 |
US $249.85 |
||
|
3
|
3
502006662
Coque ga. *pan-bottom lh
|
502006662 |
— | ||
|
4
|
4
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
5
|
5
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
6
|
6
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.80 |
