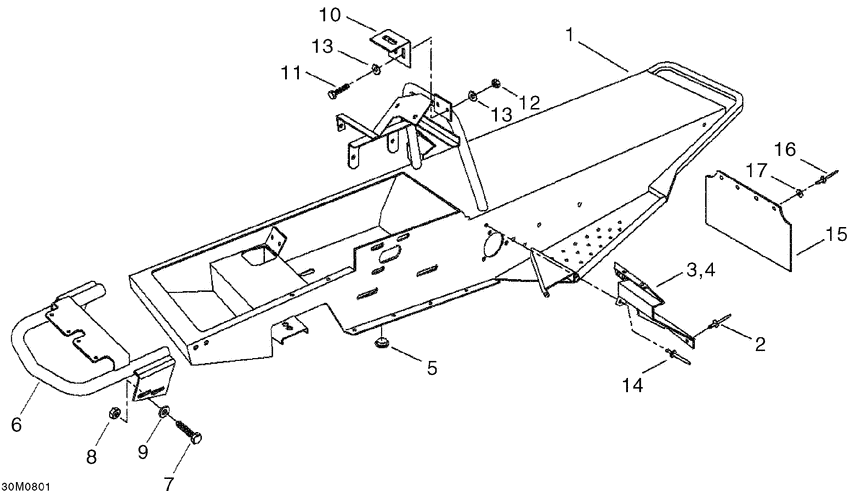

09- frame Diagram Bombardier Mini Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518323447
Chassis peint *frame-paint
|
518323447 |
— | ||
|
2
|
2
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
3
|
3
518321950
Repose-pied dr.*rh.footrest
|
518321950 |
— | ||
|
4
|
4
518321952
Repose-pied ga.*lh.footrest
|
518321952 |
— | ||
|
5
|
5
414404800 Bouchon *cap-plug |
414404800 |
US $73.10 |
||
|
6
|
6
518323466
Pare-chocs p. *bumper-paint
|
518323466 |
— | ||
|
7
|
7
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
8
|
8
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
9
|
9
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
10
|
10
518321300
Plaque ajust. *plate-adjustable
|
518321300 |
— | ||
|
11
|
11
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
12
|
12
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
13
|
13
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
14
|
14
293150104
Pop rivet 3/16
|
293150104 |
— | ||
| replacement | |||||
|
14
|
14
293150292 Rivet_Ornit 4.8 X 14 Black |
293150292 |
US $37.75 |
||
|
15
|
15
572099800 Garde-neige *guard-snow |
572099800 |
US $50.97 |
||
|
16
|
16
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
17
|
17
517225900 Washer - flat |
517225900 |
US $2.40 |
||
