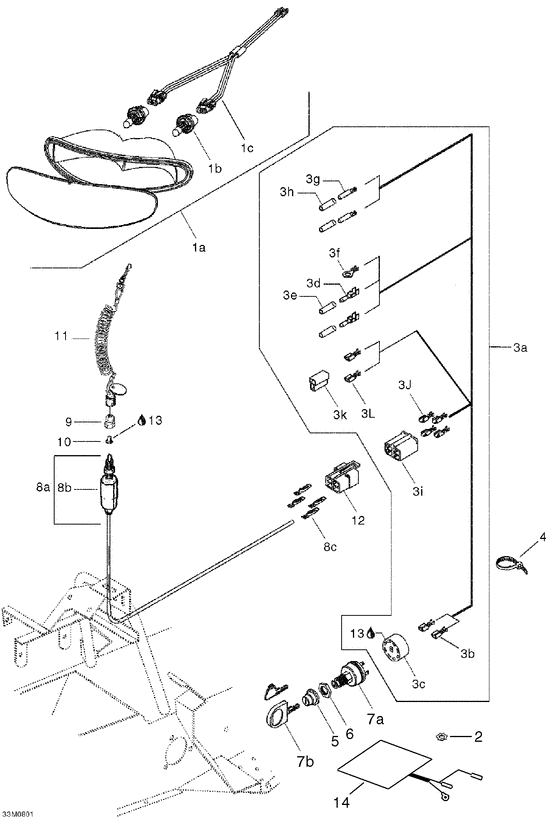

10- electrical system Diagram Bombardier Mini Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1a
|
1a
515175746 Phare *headlampIncludes 1 to 3; |
515175746 |
US $192.73 |
||
|
1b
|
1b
415128619 Ampoule *bulb |
415128619 |
US $14.96 |
||
|
1c
|
1c
415128618 Cablage *harness |
415128618 |
US $89.73 |
||
|
2
|
2
234461608 Washer-lock serrated din.6798a-a2 |
234461608 |
US $7.40 |
||
|
3h
|
3h
290964072
Etui thermique *sheath-insulat
|
290964072 |
— | ||
| replacement | |||||
|
3h
|
3h
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
3i
|
3i
409204900 Logement femel.*housing-female |
409204900 |
US $35.45 |
||
|
3j
|
3j
515175724
Terminal *terminal
|
515175724 |
— | ||
|
3k
|
3k
515175658 Logement femel.*housing-female |
515175658 |
US $18.12 |
||
|
3a
|
3a
515176611 Cablage ass. *harness-assy.Includes 3a to 3L; |
515176611 |
US $32.54 |
||
|
3L
|
3L
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
3b
|
3b
409205300
Cosse femelle *terminal-femal.
|
409205300 |
— | ||
| replacement | |||||
|
3b
|
3b
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
3c
|
3c
572150700 Bloc inter.all.*block-ign.swi. |
572150700 |
US $15.30 |
||
|
3d
|
3d
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
3e
|
3e
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
3f
|
3f
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
3g
|
3g
290964068
Cosse femelle *terminal-femal
|
290964068 |
— | ||
| replacement | |||||
|
3g
|
3g
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
4
|
4
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
5
|
5
570013700 Boot - switch |
570013700 |
US $52.35 |
||
|
6
|
6
410112100 Nut-face |
410112100 |
US $15.73 |
||
|
7a
|
7a
410113601
Inter.allumage *switch-ignit.
|
410113601 |
— | ||
| replacement | |||||
|
7a
|
7a
515176548
Starter switch, 3 pos.
|
515176548 |
— | ||
|
8a
|
8a
515176525 Interruteur *brake switchIncludes 8a to 8c; |
515176525 |
US $20.96 |
||
|
8b
|
8b
515175571
Inter.frein *switch-brake
|
515175571 |
— | ||
| replacement | |||||
|
8b
|
8b
515176525 Interruteur *brake switch |
515176525 |
US $20.96 |
||
|
8c
|
8c
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
9
|
9
515145900 Ecrou inter. *nut-switch |
515145900 |
US $52.35 |
||
|
10
|
10
570151100 Cap.plongeur *cap-plunger |
570151100 |
US $54.25 |
||
|
11
|
11
515176464 Capuchon ass. *cap-assy. |
515176464 |
US $36.69 |
||
|
12
|
12
409209300 Logement male *housing-male |
409209300 |
US $36.55 |
||
|
13
|
13
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
14
|
14
515176489
Element chauff.*heated film
|
515176489 |
— | ||
