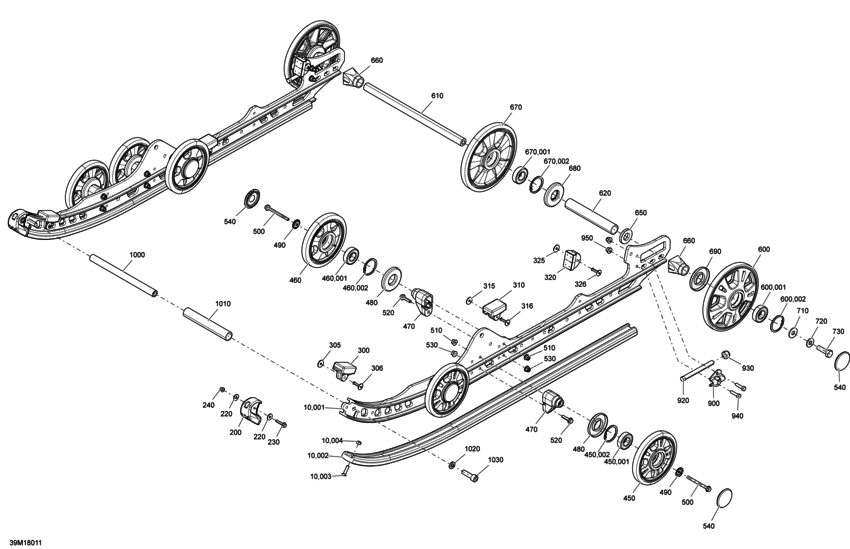

08- Suspension Rear Mxz Engine 600 Ace - Inferior Diagram Bombardier MX Z
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10.001
|
10.001
503192152 RUNNER 120 |
503192152 |
US $386.53 |
||
|
10.002
|
10.002
503191301 Glissiere *slider shoe |
503191301 |
US $24.45 |
||
|
10.003
|
10.003
208562531 Screw-ctsk.ov.hd.ph.din.966a |
208562531 |
US $10.88 |
||
|
10.004
|
10.004
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
200
|
200
503191137 Protecteur rail*prot-runner |
503191137 |
US $9.78 |
||
|
220
|
220
250200140 RONDELLE *WASHER |
250200140 |
US $5.24 |
||
|
230
|
230
207652544 Screw-hex.flange din.6921 |
207652544 |
US $0.65 |
||
|
240
|
240
233251434 Nut-flange elastic din.6926 |
233251434 |
US $10.40 |
||
|
300
|
300
503190576 Butee caout. *stopper-rubber |
503190576 |
US $11.59 |
||
|
305
|
305
503191273 Rondelle * washer |
503191273 |
US $9.78 |
||
|
306
|
306
293150224 POP RIVET 3/16" |
293150224 |
US $1.31 |
||
|
310
|
310
503190576 Butee caout. *stopper-rubber |
503190576 |
US $11.59 |
||
|
315
|
315
503191273 Rondelle * washer |
503191273 |
US $9.78 |
||
|
316
|
316
293150224 POP RIVET 3/16" |
293150224 |
US $1.31 |
||
|
320
|
320
503191291 Butee caout. *stopper-rubber |
503191291 |
US $18.34 |
||
|
325
|
325
503191273 Rondelle * washer |
503191273 |
US $9.78 |
||
|
326
|
326
293150224 POP RIVET 3/16" |
293150224 |
US $1.31 |
||
|
450
|
450
503192794 DEEP BLACK WHEEL ASS Y, 141 MM |
503192794 |
US $49.28 |
||
|
450.001
|
450.001
503190396 Roulement bille*ball bearing |
503190396 |
US $15.78 |
||
|
450.002
|
450.002
415129371 Anneau retenue *circlip |
415129371 |
US $15.79 |
||
|
460
|
460
503192794 DEEP BLACK WHEEL ASS Y, 141 MM |
503192794 |
US $49.28 |
||
|
460.001
|
460.001
503190396 Roulement bille*ball bearing |
503190396 |
US $15.78 |
||
|
460.002
|
460.002
415129371 Anneau retenue *circlip |
415129371 |
US $15.79 |
||
|
470
|
470
503193894 CASTED SUPPORT |
503193894 |
US $13.77 |
||
|
480
|
480
503190434 Joint labyrint.*seal-labyrinth |
503190434 |
US $5.42 |
||
|
490
|
490
503191820 Cup washer |
503191820 |
US $6.15 |
||
|
500
|
500
250000944 HEX. FLANGE SCREW M6 X 70 |
250000944 |
US $5.71 |
||
|
510
|
510
233261466 HEX. FLANGED ELASTIC NUT M6 |
233261466 |
US $20.80 |
||
|
520
|
520
250000945 HEX. FLANGE SCREW M6 X 25 |
250000945 |
US $5.71 |
||
|
530
|
530
233261466 HEX. FLANGED ELASTIC NUT M6 |
233261466 |
US $20.80 |
||
|
540
|
540
503192771 BLACK WHEEL CAP |
503192771 |
US $3.01 |
||
|
600
|
600
503191742 Roue 180 *wheel 180 |
503191742 |
US $48.93 |
||
|
600.001
|
600.001
503190396 Roulement bille*ball bearing |
503190396 |
US $15.78 |
||
|
600.002
|
600.002
415129371 Anneau retenue *circlip |
415129371 |
US $15.79 |
||
|
610
|
610
503190429 Essieu arriere *axle-rear |
503190429 |
US $67.29 |
||
|
620
|
620
503190430 Entretoise *spacer |
503190430 |
US $7.33 |
||
|
650
|
650
503190432 Rondelle *washer |
503190432 |
US $12.19 |
||
|
660
|
660
503190428 Entretoise *spacer |
503190428 |
US $8.14 |
||
|
670
|
670
503194050 DEEP BLACK WHEEL ASS Y, 180 MM |
503194050 |
US $60.13 |
||
|
670.001
|
670.001
503190396 Roulement bille*ball bearing |
503190396 |
US $15.78 |
||
|
670.002
|
670.002
415129371 Anneau retenue *circlip |
415129371 |
US $15.79 |
||
|
680
|
680
503190682 Joint labyrint.*seal-labyrinth |
503190682 |
US $6.77 |
||
|
690
|
690
503190434 Joint labyrint.*seal-labyrinth |
503190434 |
US $5.42 |
||
|
710
|
710
503191910 Rondelle *washer |
503191910 |
US $6.54 |
||
|
720
|
720
234201474 Washer-spring conical din.6796 |
234201474 |
US $21.80 |
||
|
730
|
730
250000817 SCREW-HEX.CAP WITH NYLON PATCH |
250000817 |
US $5.71 |
||
|
900
|
900
503192583 TENSIONER |
503192583 |
US $7.29 |
||
|
920
|
920
230100054 HEX SCREW M10 X 100 |
230100054 |
US $8.33 |
||
|
930
|
930
233601466 ELASTIC LOCKING NUT M10 |
233601466 |
US $2.72 |
||
|
940
|
940
250000619 HEX SCREW M6 X 25 |
250000619 |
US $1.31 |
||
|
950
|
950
233261466 HEX. FLANGED ELASTIC NUT M6 |
233261466 |
US $20.80 |
||
|
1000
|
1000
503191260 Axe *axle |
503191260 |
US $28.80 |
||
|
1010
|
1010
503192678 SPACER |
503192678 |
US $8.06 |
||
|
1020
|
1020
503192496 RONDELLE *WASHER |
503192496 |
US $5 |
||
|
1030
|
1030
205503554 SOCKET HEAD SCREW M10 X 35 |
205503554 |
US $9.55 |
