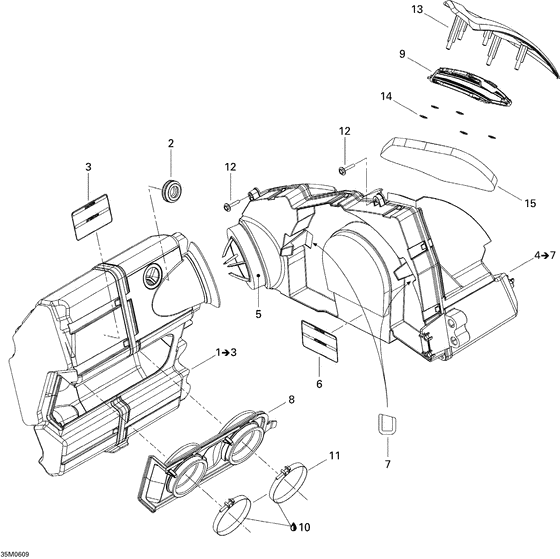

02- air intake system Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
508000354 Chambre prim.as*chamber-assyIncludes 1 to 3; |
508000354 |
US $78.49 |
||
|
2
|
2
570065500 Anneau *grommet |
570065500 |
US $14.25 |
||
|
3
|
3
516002715 Etiquette *label |
516002715 |
US $0.02 |
||
|
4
|
4
508000519 Chambre sec.ass*chamber-assyIncludes 4 to 7; |
508000519 |
US $106.05 |
||
|
5
|
5
508000520 Mousse joint *foam jonc |
508000520 |
US $9.13 |
||
|
6
|
6
516002715 Etiquette *label |
516002715 |
US $0.02 |
||
|
7
|
7
516001910 Decalque dr. *rh decal. |
516001910 |
US $9.13 |
||
|
7
|
7
516001911 Decalque ga. *lh decal. |
516001911 |
US $9.13 |
||
|
8
|
8
508000451 Adapt.as *adapt-assy |
508000451 |
US $36.69 |
||
|
9
|
9
508000506 Filtre admiss. *filter-intake |
508000506 |
US $30.57 |
||
|
10
|
10
293600071
Huile 2t 12x1 semi * oil 2t 12x1 blend
|
293600071 |
— | ||
|
10
|
10
293600072
Huile 2t 3x1g semi * oil 2t 3x1g blend
|
293600072 |
— | ||
|
10
|
10
293600073
Huile 2t baril * oil 2t drum blend
|
293600073 |
— | ||
| replacement | |||||
|
10
|
10
293600102 Huile 2t baril *oil 2t drum blend |
293600102 |
US $2,488.80 |
||
|
11
|
11
508000346 Clamp |
508000346 |
US $10.52 |
||
|
12
|
12
250000101 Screw plastite type k-40 m4 x 25 |
250000101 |
US $22.55 |
||
|
13
|
13
508000461
Deflecteur *deflector
|
508000461 |
— | ||
|
14
|
14
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
15
|
15
508000367 Filtre a air *filter-air |
508000367 |
US $14.25 |
||
