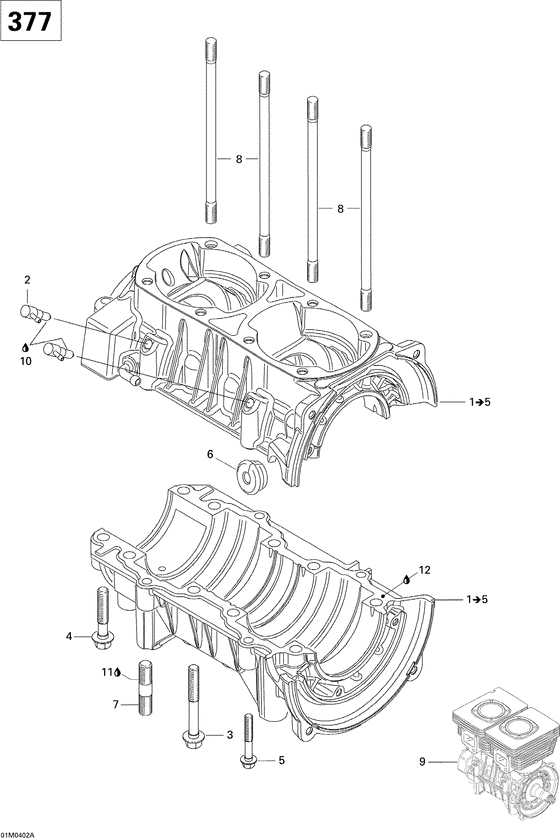

01- crankcase (380F) Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420888486 Carter assembl+*crankcase assy.1 to 5; |
420888486 |
US $1,005.70 |
||
|
2
|
2
420956510 Soupape retenue*valve-check |
420956510 |
from US $32.61 |
||
|
3
|
3
420640951 Screw-hex. m8 x 68.5 |
420640951 |
US $30.35 |
||
|
4
|
4
420841431
New Genuine Part
|
420841431 |
— | ||
|
5
|
5
420941451 Screw-hex collar m6 x 40 |
420941451 |
US $25.35 |
||
|
6
|
6
420860962 Passe-cable *grommet-cable |
420860962 |
US $13.01 |
||
|
7
|
7
420940190 Stud-m10 x 29/20 |
420940190 |
US $8.13 |
||
|
8
|
8
420841149 Stud m8 x 167 |
420841149 |
US $15.27 |
||
|
9
|
9
420037705
Ens.carter-cyl.*short block 380
|
420037705 |
— | ||
|
10
|
10
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
11
|
11
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
12
|
12
420297906 Compose etanche*compound sealing |
420297906 |
US $39.73 |
