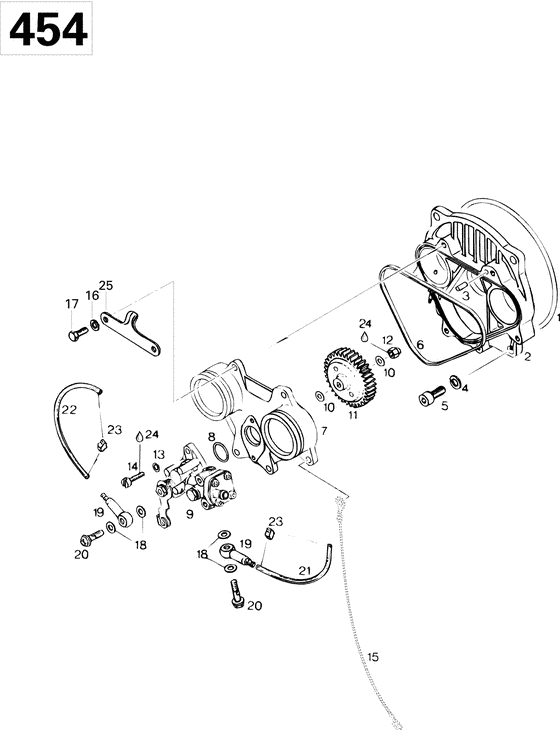

02- oil injection system 440 Diagram Bombardier MX Z
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420831360
Joint torique *o ring
|
420831360 |
— | ||
| replacement | |||||
|
1
|
1
293300023 Joint torique *o-ring |
293300023 |
US $16.29 |
||
|
2
|
2
420810481
Couvercle ass. *cover-assy.
|
420810481 |
— | ||
| replacement | |||||
|
2
|
2
420810486
Couvercle ass. *cover-assy.
|
420810486 |
— | ||
|
3
|
3
420929650 Goupille ass. *guide pin |
420929650 |
US $21.40 |
||
|
4
|
4
420945752 Washer-lock din.128 |
420945752 |
US $19.60 |
||
|
5
|
5
222982065
Screw-socket hd.din.912
|
222982065 |
— | ||
| replacement | |||||
|
5
|
5
205082044 Screw-socket hd.din.912 |
205082044 |
US $14.80 |
||
|
6
|
6
420831707 Bague caout. *ring-rubber |
420831707 |
US $24.39 |
||
|
7
|
7
420810490
Epaul.pompe *flange-pump
|
420810490 |
— | ||
|
8
|
8
420230370
Joint torique *o-ring
|
420230370 |
— | ||
| replacement | |||||
|
8
|
8
293300018 Joint torique *o-ring |
293300018 |
US $71.25 |
||
|
9
|
9
420886098
Pompe a huile *pump-oil assy.
|
420886098 |
— | ||
| replacement | |||||
|
9
|
9
420887930
Pompe a huile *pump-oil assy.
|
420887930 |
— | ||
|
10
|
10
420927945 Washer-flat 6,2x12x1 |
420927945 |
US $19.60 |
||
|
11
|
11
420935945
Engrenage pompe*gear-oil pump 41th
|
420935945 |
— | ||
|
12
|
12
228561045
Nut-stop elastic din.985
|
228561045 |
— | ||
| replacement | |||||
|
12
|
12
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
13
|
13
420945750 Rondelle-frein *washer-lock#5 |
420945750 |
US $19.60 |
||
|
14
|
14
420240761
Screw-cyl.m5 x 16
|
420240761 |
— | ||
|
16
|
16
420945751 Washer-lock din.128 |
420945751 |
US $7.10 |
||
|
17
|
17
222062065
Screw-hex.cap din.933
|
222062065 |
— | ||
| replacement | |||||
|
17
|
17
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
18
|
18
404146600 Rondelle etanch*washer-sealing |
404146600 |
US $20 |
||
|
19
|
19
420956010 Soupape ass. *valve-assy. |
420956010 |
US $19.40 |
||
|
20
|
20
404146800 Bolt-banjo m6 x 16 |
404146800 |
US $137.50 |
||
|
21
|
21
414413800 Boyau d huile *hose-oil |
414413800 |
US $15.05 |
||
|
22
|
22
414413800 Boyau d huile *hose-oil |
414413800 |
US $15.05 |
||
|
23
|
23
420853840 Bride *clamp |
420853840 |
US $20.25 |
||
|
24
|
24
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
24
|
24
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
25
|
25
420851340
Plaque *plate-int.sil.
|
420851340 |
— | ||
