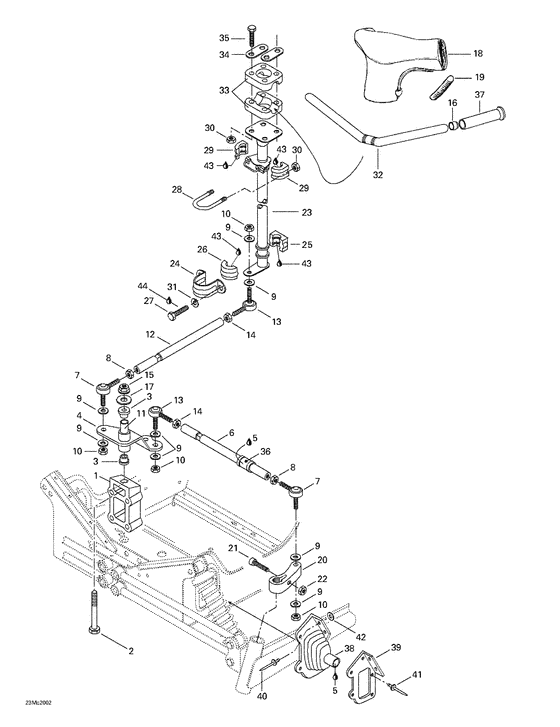

07- steering system Diagram Bombardier MX Z
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
570024900
Cap.timon.ga. *cap-rod tie lh
|
570024900 |
— | ||
|
|
517241300 Plaque cap.ga. *plate-cap.lh |
517241300 |
US $11.17 |
||
|
|
506144900 Bras direct.ga.*arm-steer.lh |
506144900 |
US $145.83 |
||
|
1
|
1
506121400
Bloc attache us*block-mach.
|
506121400 |
— | ||
|
2
|
2
207028544
Screw-hex.cap iso.4014
|
207028544 |
— | ||
|
3
|
3
415041100
Coussinet *cushion
|
415041100 |
— | ||
|
4
|
4
506133800
Bras pivot soud*arm-pivot weld
|
506133800 |
— | ||
|
5
|
5
293550014
Graisse *grease
|
293550014 |
— | ||
| replacement | |||||
|
5
|
5
293550030 Graisse *grease |
293550030 |
US $36.06 |
||
|
6
|
6
506130200
Barre accoupl. *rod-tie
|
506130200 |
— | ||
|
7
|
7
414768000
Joint rotule dr*joint-ball rh
|
414768000 |
— | ||
| replacement | |||||
|
7
|
7
506151492 Joint rotule dr*joint-ball rh |
506151492 |
US $53.13 |
||
|
8
|
8
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
9
|
9
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
10
|
10
232501416 Nut-stop elastic din.985 |
232501416 |
US $9.60 |
||
|
11
|
11
415038000
Pivot *pivot
|
415038000 |
— | ||
|
12
|
12
506110800
Barre accoupl. *rod-tie
|
506110800 |
— | ||
|
13
|
13
414768100
Joint rotule ga*joint-ball lh
|
414768100 |
— | ||
| replacement | |||||
|
13
|
13
506151845 Joint rotule ga*ball joint lh |
506151845 |
US $46.10 |
||
|
14
|
14
732610011
Nut-jam hexagonal lh.
|
732610011 |
— | ||
| replacement | |||||
|
14
|
14
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
15
|
15
232521414 Nut-stop elastic din.985 |
232521414 |
US $13.95 |
||
|
16
|
16
572081900 Bout de guidon *end-bar handle |
572081900 |
US $35.45 |
||
|
17
|
17
506136400 Rondelle *washer |
506136400 |
US $30.10 |
||
|
18
|
18
572084100
Couss.securite *pad-steering black
|
572084100 |
— | ||
|
19
|
19
572072400
Mortaise *keyway
|
572072400 |
— | ||
|
20
|
20
506144800
Bras direct.dr.*arm-steer.rh
|
506144800 |
— | ||
|
21
|
21
205083544 Screw-socket hd.din.912 |
205083544 |
US $8.65 |
||
|
22
|
22
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
23
|
23
506151114
Arbre direction*tube-main black
|
506151114 |
— | ||
|
24
|
24
517126200
Support retenue*support-retainer
|
517126200 |
— | ||
|
25
|
25
572064400 Douille *bushing |
572064400 |
US $6.07 |
||
|
26
|
26
572064500 Douille *bushing |
572064500 |
US $6.07 |
||
|
27
|
27
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
28
|
28
506060600 Bride en u *clamp-u |
506060600 |
US $17.88 |
||
|
29
|
29
572067100 Demi-douille *half-bushing |
572067100 |
US $24.44 |
||
|
30
|
30
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
31
|
31
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
32
|
32
506125900
Guidon *bar-handle
|
506125900 |
— | ||
|
33
|
33
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
34
|
34
506151196
Renfort *reiforcement
|
506151196 |
— | ||
|
35
|
35
207085544 Screw-hex.cap din.931 |
207085544 |
US $21.60 |
||
|
36
|
36
572036500 Douille *bushing |
572036500 |
US $8.55 |
||
|
37
|
37
572100500
Gaine poignee *grip-handle
|
572100500 |
— | ||
| replacement | |||||
|
37
|
37
506151530 Gaine dr. *grip-rh 6-1/2 |
506151530 |
US $29.34 |
||
|
38
|
38
570024800
Cap.timon.dr. *cap-rod tie rh
|
570024800 |
— | ||
|
39
|
39
517241200
Plaque cap.dr. *plate-cap.rh
|
517241200 |
— | ||
|
40
|
40
390910200
Rivet-pop 3/16 *rivet-pop 3/16
|
390910200 |
— | ||
|
41
|
41
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
42
|
42
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
43
|
43
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
44
|
44
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
