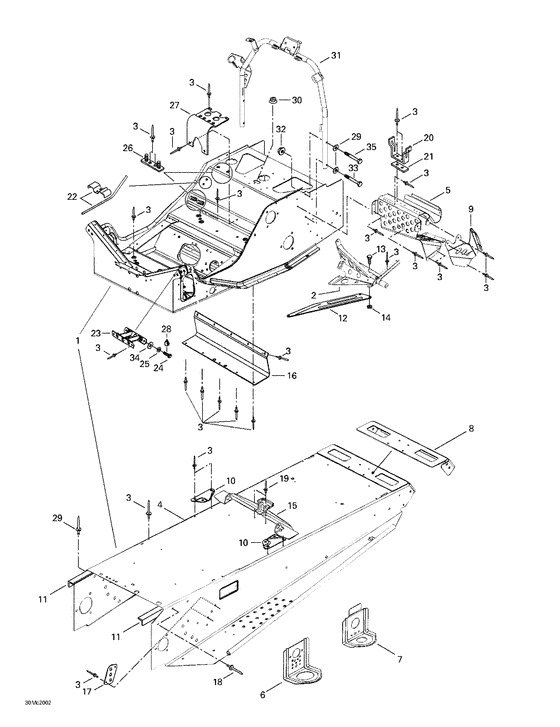

09- frame and accessories Diagram Bombardier MX Z
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
518321959
Plaque renf.ga.*plate-reinf.lh
|
518321959 |
— | ||
|
|
518308715
Plaque sup. dr.*plate-upper rh
|
518308715 |
— | ||
|
|
518320506
Support droit *rh.support
|
518320506 |
— | ||
|
|
518321917
Attache gauche *bracket-lh
|
518321917 |
— | ||
|
|
518316714
Renf.tunnel dr.*reinf-frame rh
|
518316714 |
— | ||
|
|
518318934
Repose-pied ga.*footrest-lh
|
518318934 |
— | ||
|
1
|
1
518322085
Chassis *frame
Includes 1 - 19.; |
518322085 |
— | ||
| replacement | |||||
|
1
|
1
415128550
Chassis *frame service
Includes 1 - 19.; |
415128550 |
— | ||
|
2
|
2
518320507 Support gauche *lh.support |
518320507 |
US $138.69 |
||
|
3
|
3
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
4
|
4
518322113
Tunnel forme *frame-forming
|
518322113 |
— | ||
|
5
|
5
518318933
Repose-pied dr.*footrest-rh
|
518318933 |
— | ||
|
6
|
6
518321495
Attache avant *bracket-front
|
518321495 |
— | ||
|
7
|
7
518308704
Attache arriere*bracket-rear
|
518308704 |
— | ||
|
8
|
8
518321301
Capuchon arr. *cap-rear
|
518321301 |
— | ||
|
9
|
9
518308714
Plaque sup. ga.*plate-upper lh
|
518308714 |
— | ||
|
10
|
10
518321916
Attache droite *bracket-rh
|
518321916 |
— | ||
|
11
|
11
518316713
Renf.tunnel ga.*reinf-frame lh
|
518316713 |
— | ||
|
12
|
12
518321958
Plaque renf.dr.*plate-reinf.rh
|
518321958 |
— | ||
|
13
|
13
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
14
|
14
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
15
|
15
518317506
Attache siege *bracket-seat
|
518317506 |
— | ||
|
16
|
16
518321867
Deflecteur *deflector
|
518321867 |
— | ||
|
17
|
17
518201321 Plaque renfort *plate-reinf. |
518201321 |
US $8.38 |
||
|
18
|
18
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
19
|
19
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
20
|
20
518202100 Attache gard.co*brkt-guard belt |
518202100 |
US $15.73 |
||
|
21
|
21
518207500 Renfort *reinforcement |
518207500 |
US $8.38 |
||
|
22
|
22
517276100
Guide corde sou*guide-rope weld.
|
517276100 |
— | ||
|
23
|
23
518304741
Plaque renf.sou*plate-reinf.weld
|
518304741 |
— | ||
|
24
|
24
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
25
|
25
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
26
|
26
518315300
Plaque supp.sou*plate-supp.weld
|
518315300 |
— | ||
|
27
|
27
518310400 Supp.silenc.adm*supp-air intake |
518310400 |
US $13.21 |
||
|
28
|
28
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
29
|
29
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
30
|
30
414859400 Bouchon *cap |
414859400 |
US $30.10 |
||
|
31
|
31
518321428
Supp.guidon *supp-handle
|
518321428 |
— | ||
|
32
|
32
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
33
|
33
207064044 Screw-hex.cap din.931 |
207064044 |
US $19.20 |
||
|
34
|
34
224081201 Washer-flat |
224081201 |
US $19.60 |
||
|
35
|
35
207063544 Screw-hex.cap din.931 |
207063544 |
US $17.70 |
||
