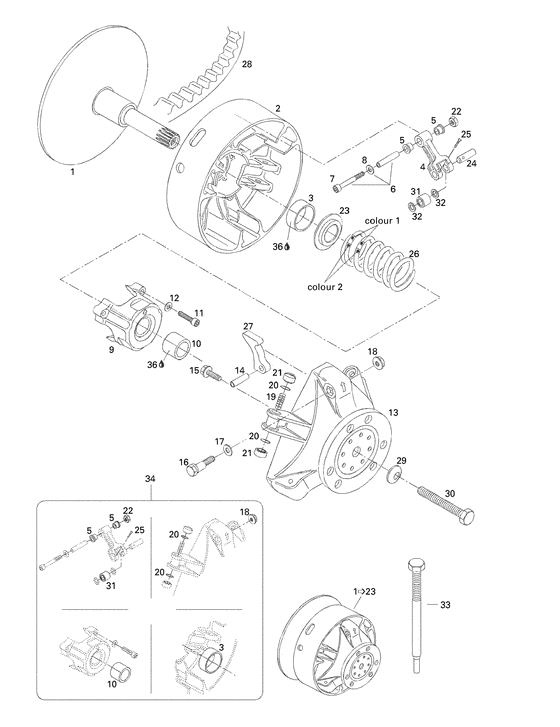

05- drive pulley Diagram Bombardier MX Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
417221900
Poulie motrice ass
Includes 1 - 23.; |
417221900 |
— | ||
|
1
|
1
417003502
Flasque fixe us*flange-fix.mach
|
417003502 |
— | ||
| replacement | |||||
|
1
|
1
417222412
Flasque fixe us*flange-fix.mac
|
417222412 |
— | ||
|
2
|
2
417010000
Flasque coul.as*flange-slid.as
Includes 2 - 3.; |
417010000 |
— | ||
| replacement | |||||
|
2
|
2
417222241
Flasque coul.as*flange-slid.as
Includes 2 - 3.; |
417222241 |
— | ||
|
3
|
3
417004201 Douille *bushing |
417004201 |
US $29.29 |
||
|
4
|
4
417003801
Levier ass. *lever-assy
Includes 4 - 5.; |
417003801 |
— | ||
| replacement | |||||
|
4
|
4
417222383 Levier ass. *lever-assyIncludes 4 - 5.; |
417222383 |
US $99.47 |
||
|
5
|
5
417004305 Douille *bushing |
417004305 |
US $10.71 |
||
|
6
|
6
417004800 Vis assemble *screw-ass yIncludes 6 - 8.; |
417004800 |
US $32.62 |
||
|
7
|
7
222965065
Screw-socket hd.din.912
|
222965065 |
— | ||
| replacement | |||||
|
7
|
7
205065044 Screw-socket hd.din.912 |
205065044 |
US $18.40 |
||
|
8
|
8
224061151
Washer-flat din.125a
|
224061151 |
— | ||
| replacement | |||||
|
8
|
8
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
9
|
9
417004000
Couv.ressort as*cover-spring assy.
Includes 9 - 10.; |
417004000 |
— | ||
| replacement | |||||
|
9
|
9
417222304
Couv.ressort as*cover-spring assy
Includes 9 - 10.; |
417222304 |
— | ||
|
10
|
10
417004501 Douille *bushing |
417004501 |
US $22.39 |
||
|
11
|
11
222964066
Screw-socket hd.din.912 gm6174m
|
222964066 |
— | ||
| replacement | |||||
|
11
|
11
205064086 Screw-socket hd.din.912 gm6174m |
205064086 |
US $14.20 |
||
|
12
|
12
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
13
|
13
417004700
Cuvette regul.a*govern.cup assy.
|
417004700 |
— | ||
| replacement | |||||
|
13
|
13
417222081 Cuvette regul.a*govern.cup assy. |
417222081 |
US $463.05 |
||
|
14
|
14
732804009
Pin-rolled din.1481 m8 x 24
|
732804009 |
— | ||
|
15
|
15
732601249
Screw-forming hex.hd.black oxide
|
732601249 |
— | ||
| replacement | |||||
|
15
|
15
210361890 Screw-forming hex.hd.black oxide |
210361890 |
US $41.30 |
||
|
16
|
16
417005500
Vis calibration*screw-calib.
|
417005500 |
— | ||
|
17
|
17
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
18
|
18
228467045
Nut-flange hexagonal din.6927
|
228467045 |
— | ||
| replacement | |||||
|
18
|
18
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
19
|
19
417005700 Ressort *spring |
417005700 |
US $5.25 |
||
|
20
|
20
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
|
21
|
21
417005800
Glissiere *shoe-slider
|
417005800 |
— | ||
| replacement | |||||
|
21
|
21
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
22
|
22
228561045
Nut-stop elastic din.985
|
228561045 |
— | ||
| replacement | |||||
|
22
|
22
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
23
|
23
417005000
Siege ressort *seat-spring
|
417005000 |
— | ||
| replacement | |||||
|
23
|
23
417222044
Siege ressort *seat-spring
|
417222044 |
— | ||
|
24
|
24
417004309 Goupille *pin |
417004309 |
US $67.17 |
||
|
25
|
25
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
26
|
26
414689500 Ressort embra. *spring-clutch |
414689500 |
US $51.66 |
||
|
27
|
27
417005291
Rampe 291
|
417005291 |
— | ||
|
28
|
28
415060600 Courroie *belt-drive |
415060600 |
US $121.18 |
||
|
29
|
29
732900026
Washer-spring conical din.6796
|
732900026 |
— | ||
| replacement | |||||
|
29
|
29
250200005 Washer-spring conical |
250200005 |
US $21 |
||
|
30
|
30
417113800 Boulon *bolt-pulley drive |
417113800 |
US $13.21 |
||
|
31
|
31
417003900
Rouleau ass. *roller-ass.
|
417003900 |
— | ||
| replacement | |||||
|
31
|
31
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
32
|
32
417004302 Rondelle butee *washer-stopper |
417004302 |
US $18.72 |
||
|
33
|
33
529007900 Extrac.poulie *puller-drive |
529007900 |
US $101.54 |
||
|
34
|
34
417006100 Ens.rep.emb. *kit-clutch rep |
417006100 |
US $152.95 |
||
|
35
|
35
861762500
Ens. haute altitude (non ill.)
|
861762500 |
— | ||
|
36
|
36
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
