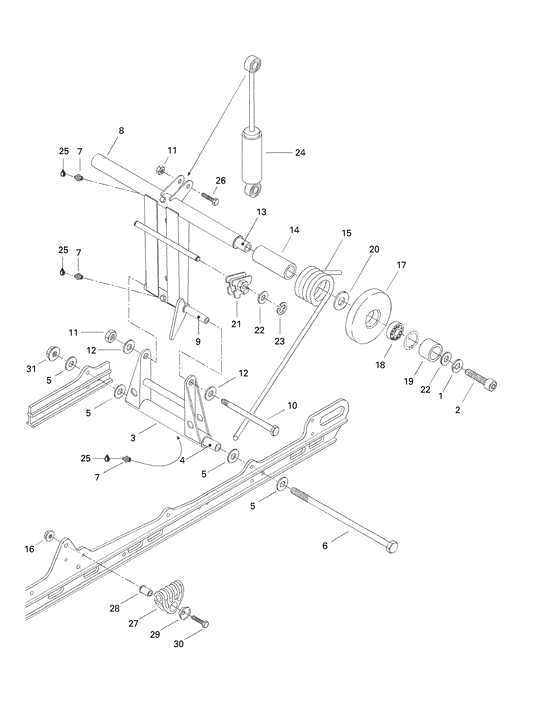

08- rear arm, rear suspension Diagram Bombardier MX Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
414943600 Ressort ga.pein*spring-lh.p. |
414943600 |
US $79.53 |
||
|
|
572030900 Came reglage dr*cam-adjust.rh. |
572030900 |
US $21.39 |
||
|
1
|
1
224701188
Washer-lock spring din.128a-a2
|
224701188 |
— | ||
| replacement | |||||
|
1
|
1
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
2
|
2
222903565
Screw-socket hd.din.912
|
222903565 |
— | ||
| replacement | |||||
|
2
|
2
205003544 Screw-socket hd.din.912 |
205003544 |
US $21.80 |
||
|
3
|
3
503169200
Jumelle *arm-pivot weld.
|
503169200 |
— | ||
| replacement | |||||
|
3
|
3
503191372 Jumelle peinte *arm-pivot p. |
503191372 |
US $110.13 |
||
|
4
|
4
503154703
Axe inf. jumel.*axle-piv.lower
|
503154703 |
— | ||
|
5
|
5
224081201 Washer-flat |
224081201 |
US $19.60 |
||
|
6
|
6
732601198
Boulon 248mm *bolt 248mm
|
732601198 |
— | ||
|
7
|
7
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
8
|
8
503151200
Bras arriere *arm-rear
|
503151200 |
— | ||
|
9
|
9
503144300 Axe sup. jumel.*axle-piv.upper |
503144300 |
US $11 |
||
|
10
|
10
732601197 Boulon court *bolt-short |
732601197 |
US $14.77 |
||
|
11
|
11
228581045
Nut-stop elastic din.985
|
228581045 |
— | ||
| replacement | |||||
|
11
|
11
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
12
|
12
224081171
Washer-flat din.125a
|
224081171 |
— | ||
| replacement | |||||
|
12
|
12
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
13
|
13
503151400
Axe transv.arr.*shaft-cross rr
|
503151400 |
— | ||
|
14
|
14
572047800 Douille *bushing |
572047800 |
US $5.83 |
||
|
15
|
15
414943500 Ressort dr.pein*spring-rh.p. |
414943500 |
US $79.53 |
||
|
16
|
16
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
16
|
16
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
17
|
17
572094300 Roue support *wheel-idlerIncludes 17 - 18.; |
572094300 |
US $45.90 |
||
|
18
|
18
405404600 Roulement bille*ball bearing |
405404600 |
US $23.41 |
||
|
19
|
19
503154200
Entretoise *spacer
|
503154200 |
— | ||
|
20
|
20
503144900 Rondelle *washer |
503144900 |
US $18.35 |
||
|
21
|
21
572030800 Came reglage ga*cam-adjust.lh. |
572030800 |
US $21.39 |
||
|
22
|
22
224001211
Washer-flat din.125a
|
224001211 |
— | ||
| replacement | |||||
|
22
|
22
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
23
|
23
371907100
Circlip "e" *circlip-"e
|
371907100 |
— | ||
|
24
|
24
414975800
Amortisseur *shock
|
414975800 |
— | ||
| replacements | |||||
|
24
|
24
414802600 Coussinet *cushion |
414802600 |
US $26.50 |
||
|
24
|
24
503188973 Amortisseur *shock |
503188973 |
US $90.73 |
||
|
25
|
25
413706100
Graisse lith. *grease lith.
|
413706100 |
— | ||
|
26
|
26
222084065
Screw-hex.cap din.931
|
222084065 |
— | ||
| replacement | |||||
|
26
|
26
207084044 Screw-hex.cap din.931 |
207084044 |
US $14.80 |
||
|
27
|
27
572056600
Support ressort*support-spring
|
572056600 |
— | ||
| replacement | |||||
|
27
|
27
503189657 Support ressort*support-spring |
503189657 |
US $11.49 |
||
|
28
|
28
503152700
Axe guide ress.*axle-guide spring
|
503152700 |
— | ||
|
29
|
29
517041700
Rondelle de retenue
|
517041700 |
— | ||
|
30
|
30
222065065
Screw-hex.cap din.931
|
222065065 |
— | ||
| replacement | |||||
|
30
|
30
207065044 Screw-hex.cap din.931 |
207065044 |
US $19.60 |
||
|
31
|
31
228781045
Nut-flange elastic din.6926
|
228781045 |
— | ||
| replacement | |||||
|
31
|
31
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
