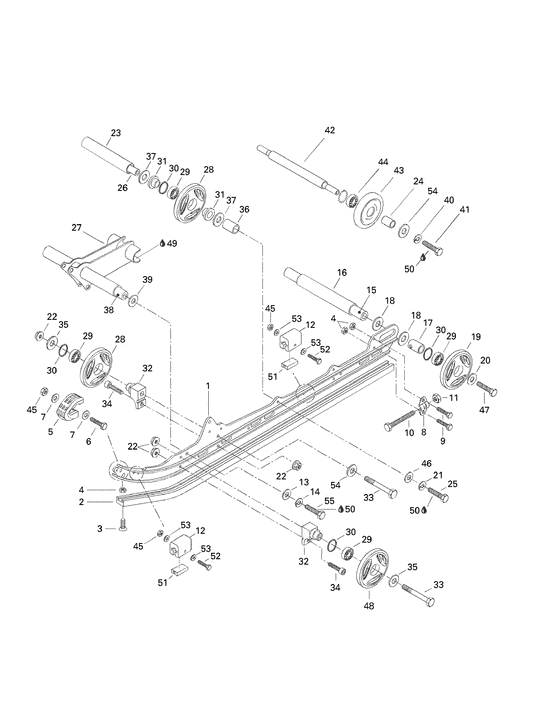

08- rear suspension Diagram Bombardier MX Z
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503175500
New Genuine Part
|
503175500 |
— | ||
|
2
|
2
560103200
Glissiere noir 121" *shoe-runner black
|
560103200 |
— | ||
| replacement | |||||
|
2
|
2
560103300 Glissiere ret.noir 121*shoe-run.re black |
560103300 |
US $26.49 |
||
|
3
|
3
216362560
Screw-ctsk.ov.hd.ph.din.966a-a2
|
216362560 |
— | ||
| replacement | |||||
|
3
|
3
208562560 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208562560 |
US $15.05 |
||
|
4
|
4
228561045
Nut-stop elastic din.985
|
228561045 |
— | ||
| replacement | |||||
|
4
|
4
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
5
|
5
572075400 Protecteur rail*prot-runner |
572075400 |
US $12.19 |
||
|
6
|
6
222052565
Screw-hex.cap din.933
|
222052565 |
— | ||
| replacement | |||||
|
6
|
6
207152544 Screw-hex.cap din.933 |
207152544 |
US $8.70 |
||
|
7
|
7
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
8
|
8
503155300 Tendeur *tensioner |
503155300 |
US $27.65 |
||
|
9
|
9
222062065
Screw-hex.cap din.933
|
222062065 |
— | ||
| replacement | |||||
|
9
|
9
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
10
|
10
732601017
Screw-hex.cap iso.4017
|
732601017 |
— | ||
| replacement | |||||
|
10
|
10
230101044 Screw-hex.cap iso.4017 |
230101044 |
US $1.96 |
||
|
11
|
11
228501045
Nut-locking elastic din.982
|
228501045 |
— | ||
| replacement | |||||
|
11
|
11
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
12
|
12
570063000
Butee caout. *stopper-rubber
|
570063000 |
— | ||
| replacement | |||||
|
12
|
12
503190905 Butee caout as *stopper-rub as |
503190905 |
US $55 |
||
|
13
|
13
224021251
Washer-flat din.125a
|
224021251 |
— | ||
| replacement | |||||
|
13
|
13
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
14
|
14
224721218
Washer-lock spring din.128a-a2
|
224721218 |
— | ||
| replacement | |||||
|
14
|
14
234120602 Washer-lock spring din.128a-a2 |
234120602 |
US $19.60 |
||
|
15
|
15
503162400 Essieu arriere *axle-rear |
503162400 |
US $110.13 |
||
|
16
|
16
503155500
Entretoise *spacer
|
503155500 |
— | ||
|
17
|
17
503154800
Entretoise ext.*spacer-outer
|
503154800 |
— | ||
| replacement | |||||
|
17
|
17
503189809 Entretoise *spacer |
503189809 |
US $14.67 |
||
|
18
|
18
504108200 Cale epaisseur *shim |
504108200 |
US $50.70 |
||
|
19
|
19
570066732
Roue 165 (jaune)
|
570066732 |
— | ||
|
20
|
20
503183300 Rondelle *washer |
503183300 |
US $75.10 |
||
|
21
|
21
224701188
Washer-lock spring din.128a-a2
|
224701188 |
— | ||
| replacement | |||||
|
21
|
21
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
22
|
22
228781045
Nut-flange elastic din.6926
|
228781045 |
— | ||
| replacement | |||||
|
22
|
22
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
23
|
23
503153100
Entreroise *spacer
|
503153100 |
— | ||
|
24
|
24
572048300
Entretoise *spacer
|
572048300 |
— | ||
|
25
|
25
222003565
Screw-hex.cap iso.4017
|
222003565 |
— | ||
| replacement | |||||
|
25
|
25
207103544 Screw-hex.cap iso.4017 |
207103544 |
US $20.10 |
||
|
26
|
26
503152800 Essieu de roues*wheel-axle |
503152800 |
US $67.29 |
||
|
27
|
27
503167500
Support amort. *support-shock
|
503167500 |
— | ||
|
28
|
28
570066622
Roue 135 aluminium*wheel 135 aluminum
|
570066622 |
— | ||
| replacement | |||||
|
28
|
28
503190797 Roue 135 *wheel-135 |
503190797 |
US $41.02 |
||
|
29
|
29
405404500
Roulement bille*ball bearing
|
405404500 |
— | ||
| replacement | |||||
|
29
|
29
293350055
Ball bearing
|
293350055 |
— | ||
|
30
|
30
371901700 Circlip int. *circlip-int. |
371901700 |
US $58.30 |
||
|
31
|
31
414888400
Coussinet *cushion
|
414888400 |
— | ||
| replacement | |||||
|
31
|
31
503189534 Coussinet *cushion |
503189534 |
US $44 |
||
|
32
|
32
503174600
Support usine *support-mach.
|
503174600 |
— | ||
| replacement | |||||
|
32
|
32
503190389 Support moulee *support-cast. |
503190389 |
US $22 |
||
|
33
|
33
222088065
Screw-hex.cap din.931
|
222088065 |
— | ||
| replacement | |||||
|
33
|
33
207088044 Screw-hex.cap din.931 |
207088044 |
US $21.40 |
||
|
34
|
34
222082565
Screw-hex.cap din.933
|
222082565 |
— | ||
| replacement | |||||
|
34
|
34
207182544 Screw-hex.cap din.933 |
207182544 |
US $11.70 |
||
|
35
|
35
503183100 Rondelle *washer |
503183100 |
US $40.80 |
||
|
36
|
36
503151000
Entretoise *spacer
|
503151000 |
— | ||
|
37
|
37
503154000 Rondelle *washer |
503154000 |
US $55.30 |
||
|
38
|
38
503174800
Arbre *shaft
|
503174800 |
— | ||
|
39
|
39
503175400 Rondelle trempe*washer-hard |
503175400 |
US $1.96 |
||
|
40
|
40
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
40
|
40
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
41
|
41
222083065
Screw-hex.cap din.933
|
222083065 |
— | ||
| replacement | |||||
|
41
|
41
207183044 Screw-hex.cap din.933 |
207183044 |
US $19.60 |
||
|
42
|
42
503153600
Axe roue supp. *axle-wheel idler
|
503153600 |
— | ||
|
43
|
43
572043500 Roue support *wheel-idlerIncludes 43 - 44.; |
572043500 |
US $27.49 |
||
|
44
|
44
405404600 Roulement bille*ball bearing |
405404600 |
US $23.41 |
||
|
45
|
45
228551045
Nut-stop elastic din.985
|
228551045 |
— | ||
| replacement | |||||
|
45
|
45
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
46
|
46
224001211
Washer-flat din.125a
|
224001211 |
— | ||
| replacement | |||||
|
46
|
46
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
47
|
47
732601002
Screw-hexagonal
|
732601002 |
— | ||
| replacement | |||||
|
47
|
47
250000019 Screw-hex.cap with nylon patch |
250000019 |
US $21.90 |
||
|
48
|
48
570066632
Roue de support 135 (jaune)
|
570066632 |
— | ||
|
49
|
49
413706100
Graisse lith. *grease lith.
|
413706100 |
— | ||
|
50
|
50
413707400
Loctite 271 *loctite-271
|
413707400 |
— | ||
| replacement | |||||
|
50
|
50
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
51
|
51
572084800 Renfort butee *reinf.-stopper |
572084800 |
US $8.55 |
||
|
52
|
52
222054065
Screw-hex.cap din.931
|
222054065 |
— | ||
| replacement | |||||
|
52
|
52
207054044 Screw-hex.cap din.931 |
207054044 |
US $9.80 |
||
|
53
|
53
391301700
Rondelle *washer
|
391301700 |
— | ||
|
54
|
54
224081171
Washer-flat din.125a
|
224081171 |
— | ||
| replacement | |||||
|
54
|
54
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
55
|
55
222023565
Screw-hex.cap iso.4017
|
222023565 |
— | ||
| replacement | |||||
|
55
|
55
207123544 Screw-hex.cap iso.4017 |
207123544 |
US $19.60 |
||
