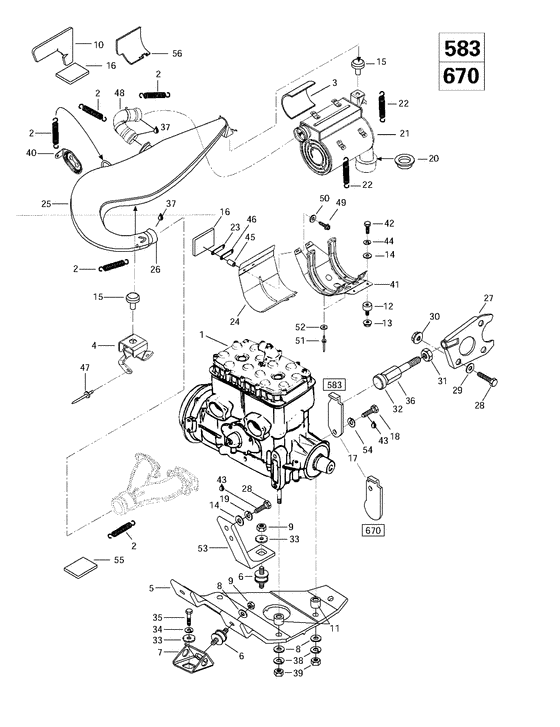

01- engine support and muffler (583, 670) Diagram Bombardier MX Z
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
514045300
Tuyau de sortie
MX Z 670.; |
514045300 |
— | ||
|
|
400602800
New Genuine Part
MX Z 670.; |
400602800 |
— | ||
|
|
570045400
Butee *stopper
MX Z 670.; |
570045400 |
— | ||
| replacements | |||||
|
|
512059057 Rondelle *washerMX Z 670.; |
512059057 |
US $19.60 |
||
|
|
512059056 Butee *stopperMX Z 670.; |
512059056 |
US $22.39 |
||
|
|
512054300
Socle *support-engine
MX Z 670.; |
512054300 |
— | ||
| replacement | |||||
|
|
512058400
Socle *support-engine
MX Z 670.; |
512058400 |
— | ||
|
|
224761110
Washer-lock thin black din.127a
MX Z 670.; |
224761110 |
— | ||
| replacement | |||||
|
|
234161471 Washer-lock black din.127bMX Z 670.; |
234161471 |
US $6.80 |
||
|
|
512052900
Plaque butee *plate stopper
MX Z 670.; |
512052900 |
— | ||
|
|
222061665
Screw-hex.cap din.933
MX Z 670.; |
222061665 |
— | ||
| replacement | |||||
|
|
207161644 Screw-hex.cap din.933MX Z 670.; |
207161644 |
US $9.50 |
||
|
1
|
1
400508000
New Genuine Part
MX Z 583.; |
400508000 |
— | ||
|
2
|
2
414893700
Ressort *spring
MX Z 583. MX Z 670.; |
414893700 |
— | ||
| replacement | |||||
|
2
|
2
415107100 Ressort *springMX Z 583. MX Z 670.; |
415107100 |
US $82.10 |
||
|
3
|
3
414746400
Feuille reflect*sheet-reflect.
MX Z 583. MX Z 670.; |
414746400 |
— | ||
|
4
|
4
514044500
Support tuy.sou*support-pipe weld
MX Z 583. MX Z 670.; |
514044500 |
— | ||
|
5
|
5
512054200
Support moteur *support-engine
MX Z 583. MX Z 670.; |
512054200 |
— | ||
|
6
|
6
570127700
Tampon ancrage *mount-rubber
MX Z 583. MX Z 670.; |
570127700 |
— | ||
| replacement | |||||
|
6
|
6
570128700 Tampon ancrage *mount-rubberMX Z 583. MX Z 670.; |
570128700 |
US $52.14 |
||
|
7
|
7
512050900 Supp.moteur sou*supp-engine weldMX Z 583. MX Z 670.; |
512050900 |
US $15.54 |
||
|
8
|
8
224001211
Washer-flat din.125a
MX Z 583. MX Z 670.; |
224001211 |
— | ||
| replacement | |||||
|
8
|
8
234001410 Washer-flat din.125aMX Z 583. MX Z 670.; |
234001410 |
US $16 |
||
|
9
|
9
228501045
Nut-locking elastic din.982
MX Z 583. MX Z 670.; |
228501045 |
— | ||
| replacement | |||||
|
9
|
9
233601416 Nut-locking elastic din.982MX Z 583. MX Z 670.; |
233601416 |
US $21.90 |
||
|
10
|
10
415014900
Feuille reflect*sheet-reflect
MX Z 583. MX Z 670.; |
415014900 |
— | ||
|
11
|
11
512055100
Entretoise *spacer
MX Z 583.; |
512055100 |
— | ||
|
12
|
12
570016100
Tampon ancrage *mount-rubber
MX Z 583. MX Z 670.; |
570016100 |
— | ||
| replacement | |||||
|
12
|
12
514052743 Tampon ancrage *mount-rubberMX Z 583. MX Z 670.; |
514052743 |
US $48.93 |
||
|
13
|
13
228781045
Nut-flange elastic din.6926
MX Z 583. MX Z 670.; |
228781045 |
— | ||
| replacement | |||||
|
13
|
13
233281414 Nut-flange elastic din.6926MX Z 583. MX Z 670.; |
233281414 |
US $18.50 |
||
|
14
|
14
224081171
Washer-flat din.125a
MX Z 583. MX Z 670.; |
224081171 |
— | ||
| replacement | |||||
|
14
|
14
234081410 Washer-flat din.125aMX Z 583. MX Z 670.; |
234081410 |
US $10.70 |
||
|
15
|
15
570048700
Butoir caout. *bumper-rubber
MX Z 583. MX Z 670.; |
570048700 |
— | ||
| replacement | |||||
|
15
|
15
514053654 Butoir caout. *bumper rubberMX Z 583. MX Z 670.; |
514053654 |
US $111.12 |
||
|
16
|
16
414706200
Plaque-reflexio*plate-reflexio
MX Z 583. MX Z 670.; |
414706200 |
— | ||
|
17
|
17
512049100
Plaque butee *plate stopper
MX Z 583.; |
512049100 |
— | ||
|
18
|
18
222081665
Screw-hex.cap din.933
MX Z 583.; |
222081665 |
— | ||
| replacement | |||||
|
18
|
18
207181644 Screw-hex.cap din.933MX Z 583.; |
207181644 |
US $14.50 |
||
|
19
|
19
224781140
Washer-lock din.127a
MX Z 583. MX Z 670.; |
224781140 |
— | ||
| replacement | |||||
|
19
|
19
234181401 Washer-lock din*.127bMX Z 583. MX Z 670.; |
234181401 |
US $59.50 |
||
|
20
|
20
570027300
Rondelle echapp*grommet-exhaus
MX Z 583. MX Z 670.; |
570027300 |
— | ||
|
21
|
21
514044400
Silenc.echap.so*muffler-weld
MX Z 583. MX Z 670.; |
514044400 |
— | ||
|
22
|
22
414851600
Ressort *spring
MX Z 583. MX Z 670.; |
414851600 |
— | ||
|
23
|
23
517267100
Attache lateral*bracket-side
MX Z 583. MX Z 670.; |
517267100 |
— | ||
|
24
|
24
514044300
Deflec.chaleur *deflector-heat
MX Z 583. MX Z 670.; |
514044300 |
— | ||
|
25
|
25
514046600
Tuyau echapp.as*pipe-tuned assy
Includes 25 - 26. MX Z 583. MX Z 670.; |
514046600 |
— | ||
|
26
|
26
420879991 Rotule femelle *joint-femaleMX Z 583. MX Z 670.; |
420879991 |
US $16.29 |
||
|
27
|
27
512055500
Plaque app.soud*plate-weld
MX Z 583. MX Z 670.; |
512055500 |
— | ||
|
28
|
28
222082565
Screw-hex.cap din.933
MX Z 583. MX Z 670.; |
222082565 |
— | ||
| replacement | |||||
|
28
|
28
207182544 Screw-hex.cap din.933MX Z 583. MX Z 670.; |
207182544 |
US $11.70 |
||
|
29
|
29
224081171
Washer-flat din.125a
MX Z 583. MX Z 670.; |
224081171 |
— | ||
| replacement | |||||
|
29
|
29
234081410 Washer-flat din.125aMX Z 583. MX Z 670.; |
234081410 |
US $10.70 |
||
|
30
|
30
228581045
Nut-stop elastic din.985
MX Z 583. MX Z 670.; |
228581045 |
— | ||
| replacement | |||||
|
30
|
30
232581414 Nut-stop elastic din.985MX Z 583. MX Z 670.; |
232581414 |
US $7.30 |
||
|
31
|
31
732610019 Nut-jam hexagonal rh.MX Z 583. MX Z 670.; |
732610019 |
US $9.80 |
||
|
32
|
32
570025100
Tige retenue *rod-retainer
MX Z 583.; |
570025100 |
— | ||
|
33
|
33
512056700 Rondelle-frein *washer-lockMX Z 583. MX Z 670.; |
512056700 |
US $20.50 |
||
|
34
|
34
224701188
Washer-lock spring din.128a-a2
MX Z 583. MX Z 670.; |
224701188 |
— | ||
| replacement | |||||
|
34
|
34
234100602 Washer-lock spring din.128a-a2MX Z 583. MX Z 670.; |
234100602 |
US $19.60 |
||
|
35
|
35
222002565
Screw-hex.cap iso.4017
MX Z 583. MX Z 670.; |
222002565 |
— | ||
| replacement | |||||
|
35
|
35
207102544 Screw-hex.cap iso.4017MX Z 583. MX Z 670.; |
207102544 |
US $17.50 |
||
|
36
|
36
512052400
Vis de butee *screw-stopper
MX Z 583. MX Z 670.; |
512052400 |
— | ||
|
37
|
37
413710300
Enduit etanche *sealant
MX Z 583. MX Z 670.; |
413710300 |
— | ||
| replacement | |||||
|
37
|
37
293800090 Enduit etanche *sealantMX Z 583. MX Z 670.; |
293800090 |
US $31.18 |
||
|
38
|
38
224701188
Washer-lock spring din.128a-a2
MX Z 583. MX Z 670.; |
224701188 |
— | ||
| replacement | |||||
|
38
|
38
234100602 Washer-lock spring din.128a-a2MX Z 583. MX Z 670.; |
234100602 |
US $19.60 |
||
|
39
|
39
228001045
Nut-hexagonal din.934
MX Z 583. MX Z 670.; |
228001045 |
— | ||
| replacement | |||||
|
39
|
39
232006414 Nut-hexagonal din.934MX Z 583. MX Z 670.; |
232006414 |
US $17.50 |
||
|
40
|
40
514045100
Attache tuyau *bracket-pipe
MX Z 583. MX Z 670.; |
514045100 |
— | ||
|
41
|
41
514044200
Support soude *support-weld.
MX Z 583. MX Z 670.; |
514044200 |
— | ||
|
42
|
42
222081265
Vis hexagonale m8 x 12
MX Z 583. MX Z 670.; |
222081265 |
— | ||
|
43
|
43
413707400
Loctite 271 *loctite-271
MX Z 583. MX Z 670.; |
413707400 |
— | ||
| replacement | |||||
|
43
|
43
293800005 Loctite 271 *loctite-271MX Z 583. MX Z 670.; |
293800005 |
US $31.18 |
||
|
44
|
44
224781140
Washer-lock din.127a
MX Z 583. MX Z 670.; |
224781140 |
— | ||
| replacement | |||||
|
44
|
44
234181401 Washer-lock din*.127bMX Z 583. MX Z 670.; |
234181401 |
US $59.50 |
||
|
45
|
45
570049300
Entretoise caou*spacer-rubber
MX Z 583. MX Z 670.; |
570049300 |
— | ||
|
46
|
46
514045200
Renfort *reinf.
MX Z 583. MX Z 670.; |
514045200 |
— | ||
|
47
|
47
390909400
Rivet-pop 3/16 *rivet-pop 3/16
MX Z 583. MX Z 670.; |
390909400 |
— | ||
| replacement | |||||
|
47
|
47
390906800 Rivet-pop 3/16 *rivet-pop 3/16MX Z 583. MX Z 670.; |
390906800 |
US $62 |
||
|
48
|
48
514047800
Tuyau de sortie
MX Z 583.; |
514047800 |
— | ||
|
49
|
49
732600004
Screw-forming hex.hd.fl.gm6174m
MX Z 583. MX Z 670.; |
732600004 |
— | ||
| replacement | |||||
|
49
|
49
210263080 Screw-forming hex.hd.fl.gm6174mMX Z 583. MX Z 670.; |
210263080 |
US $19.60 |
||
|
50
|
50
224061151
Washer-flat din.125a
MX Z 583. MX Z 670.; |
224061151 |
— | ||
| replacement | |||||
|
50
|
50
234061410 Washer-flat m6 din.125aMX Z 583. MX Z 670.; |
234061410 |
US $17.20 |
||
|
51
|
51
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 583. MX Z 670.; |
390402200 |
US $22 |
||
|
52
|
52
517124300 Rondelle *washerMX Z 583. MX Z 670.; |
517124300 |
US $2.70 |
||
|
53
|
53
512054900
Socle *support-engine
MX Z 583.; |
512054900 |
— | ||
|
54
|
54
224781140
Washer-lock din.127a
MX Z 583.; |
224781140 |
— | ||
| replacement | |||||
|
54
|
54
234181401 Washer-lock din*.127bMX Z 583.; |
234181401 |
US $59.50 |
||
|
55
|
55
415025400
Feuille reflect*sheet-reflect
MX Z 583. MX Z 670.; |
415025400 |
— | ||
|
56
|
56
415049500
Feuille reflect*sheet-reflect.
MX Z 583. MX Z 670.; |
415049500 |
— | ||
|
57
|
57
514052808
Enveloppe sup. *shell-upper
Not Shown; |
514052808 |
— | ||
|
58
|
58
514052809
Enveloppe inf. *shell-lower
Not Shown; |
514052809 |
— | ||
