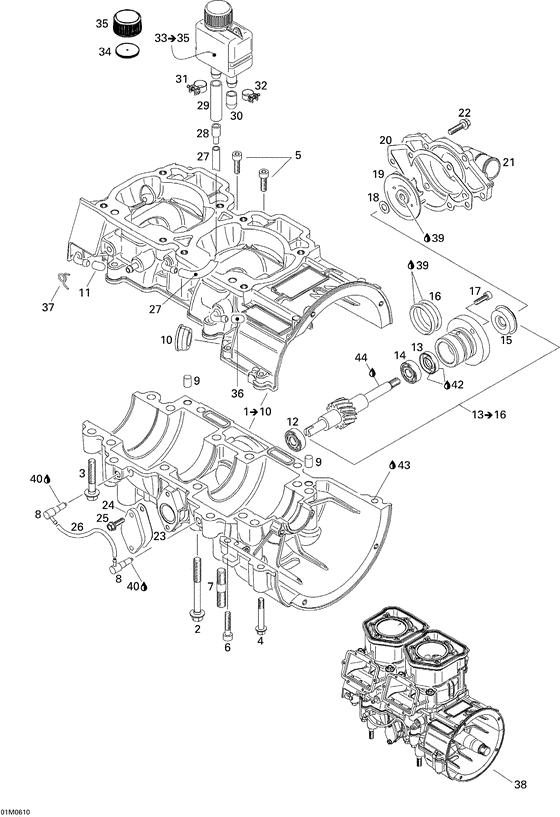

01- crankcase Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420888768 Carter moteur *crankcase-assyIncludes 1 to 10; |
420888768 |
US $1,664.64 |
||
|
2
|
2
420640836 Screw-hex collar m8x75 sw 11 |
420640836 |
US $11.17 |
||
|
3
|
3
420640431
Screw-hex collar m8x45 sw 11
|
420640431 |
— | ||
|
4
|
4
420640311 Screw-hex collar m6x45 |
420640311 |
US $20.25 |
||
|
5
|
5
205062044 Screw-socket hd.din.912 |
205062044 |
US $16.50 |
||
|
6
|
6
205063044 Screw-socket hd.din.912 |
205063044 |
US $21.90 |
||
|
7
|
7
420641834 Stud-m10 x 29/17 |
420641834 |
US $9.13 |
||
|
8
|
8
420956510 Soupape retenue*valve-check |
420956510 |
from US $32.61 |
||
|
9
|
9
420632010 Goupille *pin-center |
420632010 |
US $5.17 |
||
|
10
|
10
420860965 Passe-cable *grommet-cable |
420860965 |
US $13.21 |
||
|
11
|
11
420960770 Bouchon *cap |
420960770 |
US $5.32 |
||
|
12
|
12
420232100 Roulement bille*ball bearing |
420232100 |
US $21.42 |
||
|
13
|
13
420837421 Pompe eau/huile*waterpump/oilpumpIncludes 13 to 16; |
420837421 |
US $314.13 |
||
|
13
|
13
420230196
Anneau etanche *seal-oil
|
420230196 |
— | ||
|
14
|
14
420232100 Roulement bille*ball bearing |
420232100 |
US $21.42 |
||
|
15
|
15
420650370 Joint tournant *rotary seal |
420650370 |
US $46.37 |
||
| replacement | |||||
|
15
|
15
420650371 ROTARY SEAL |
420650371 |
US $52.63 |
||
|
16
|
16
420950890 Joint torique *o ring |
420950890 |
US $5.71 |
||
|
17
|
17
420840511 Screw-allen m5 x 16 |
420840511 |
US $1.79 |
||
|
18
|
18
420227945 Rondelle *washer |
420227945 |
US $5.17 |
||
|
19
|
19
420222505 Turbine a eau *impeller-water |
420222505 |
US $20.45 |
||
|
20
|
20
420931810 Joint *gasket |
420931810 |
US $13.21 |
||
|
21
|
21
420922630 Log.pompe eau *hous-waterpump |
420922630 |
US $57.63 |
||
|
22
|
22
420240031 Screw-hex.m6 x 25 |
420240031 |
US $1.79 |
||
|
23
|
23
420931565
Joint *gasket
|
420931565 |
— | ||
|
24
|
24
420810825
Couvercle *cover plate
|
420810825 |
— | ||
|
25
|
25
420941925 Screw-tapping m5 x 16 |
420941925 |
US $19.60 |
||
|
26
|
26
414413800 Boyau d huile *hose-oil |
414413800 |
US $15.05 |
||
|
27
|
27
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
28
|
28
420874370 Raccord *fitting |
420874370 |
US $14.25 |
||
|
29
|
29
420956239 Conduit *tube oil |
420956239 |
US $16.29 |
||
|
30
|
30
420960279 Couvercle *cap closure |
420960279 |
US $4.05 |
||
|
31
|
31
420951260 Bride *clamp |
420951260 |
US $8.13 |
||
|
32
|
32
420951240
Bride 12 *clamp 12
|
420951240 |
— | ||
|
33
|
33
420956240 Reservoir huile*tank-oilIncludes 33 to 35; |
420956240 |
US $63.21 |
||
|
34
|
34
420850350 Joint ca. *gasket-rubber |
420850350 |
US $5.07 |
||
|
35
|
35
420956250 Bouchon res.hui*cap-oil tank |
420956250 |
US $13.21 |
||
|
36
|
36
420960777 Bouchon *cap |
420960777 |
US $2.01 |
||
|
37
|
37
420938190 Bride *clamp |
420938190 |
US $9.13 |
||
|
38
|
38
420045304
Ens.carter-cyl.*short block 453
|
420045304 |
— | ||
|
39
|
39
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
40
|
40
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
41
|
41
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
42
|
42
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
|
43
|
43
293800081 Loctite 5910 *loctite-5910 |
293800081 |
US $90.68 |
||
|
44
|
44
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| replacement | |||||
|
44
|
44
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
US $15.64 |
||
