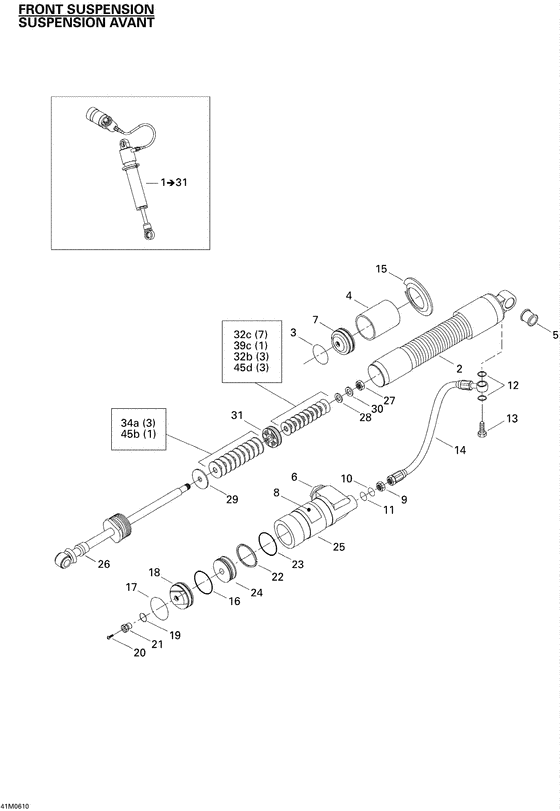

07- take apart shock, front Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
505070952
Amortisseur av.*shock-front rh
INCLUDES 1 TO 31; |
505070952 |
— | ||
|
1
|
1
505070953 Amortisseur av.*shock-front lh |
505070953 |
US $1,077.10 |
||
|
12
|
12
415038700 Joint torique *packing |
415038700 |
US $36.69 |
||
|
13
|
13
415093810 Boulon *bolt |
415093810 |
US $14.67 |
||
|
14
|
14
415128591 Boyau assemble *hose ass y |
415128591 |
US $186.61 |
||
|
15
|
15
415128598 Collet ressort*collar-spring |
415128598 |
US $48.93 |
||
|
16
|
16
415093804 Joint torique *o-ring |
415093804 |
US $4.17 |
||
|
19
|
19
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
20
|
20
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
21
|
21
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
22
|
22
415093806 Bague *ring-stop |
415093806 |
US $14.67 |
||
|
23
|
23
415093807 Joint torique *o-ring |
415093807 |
US $30.57 |
||
|
25
|
25
415128592
Reservoir *reservoir
|
415128592 |
— | ||
|
31
|
31
415128848
Piston (2 x 0.3-1) (c36)
|
415128848 |
— | ||
|
32c
|
32c
414888319
Lame soupape *leaf-valve
|
414888319 |
— | ||
|
32a
|
32a
415039100
Lame soupape *leaf-valve
|
415039100 |
— | ||
|
32b
|
32b
414888318
Lame soupape *leaf-valve
|
414888318 |
— | ||
|
33b
|
33b
414888320
New Genuine Part
|
414888320 |
— | ||
|
33c
|
33c
414888321 New Genuine Part |
414888321 |
US $1.96 |
||
|
34a
|
34a
415039000
Lame soupape *leaf-valve
|
415039000 |
— | ||
|
34b
|
34b
414888322
New Genuine Part
|
414888322 |
— | ||
|
34c
|
34c
414888323
Lame soupape *leaf-valve
|
414888323 |
— | ||
|
36b
|
36b
414888324 Lame soupape *leaf-valve |
414888324 |
US $1.96 |
||
|
36c
|
36c
414888325
New Genuine Part
|
414888325 |
— | ||
|
37d
|
37d
414888340
New Genuine Part
|
414888340 |
— | ||
|
38b
|
38b
414888326
Lame soupape *leaf-valve
|
414888326 |
— | ||
|
38c
|
38c
414888327
Lame soupape *leaf-valve
|
414888327 |
— | ||
|
38d
|
38d
414888328
New Genuine Part
|
414888328 |
— | ||
|
40b
|
40b
414888329 Lame soupape *leaf-valve |
414888329 |
US $5.83 |
||
|
40c
|
40c
414888330
Lame soupape *leaf-valve
|
414888330 |
— | ||
|
42d
|
42d
415038900
Lame soupape *leaf-valve
|
415038900 |
— | ||
|
42a
|
42a
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
42b
|
42b
414888332
New Genuine Part
|
414888332 |
— | ||
|
42c
|
42c
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
43a
|
43a
414888334
New Genuine Part
|
414888334 |
— | ||
|
43b
|
43b
414888335
Lame soupape *leaf-valve
|
414888335 |
— | ||
|
43c
|
43c
414888336
New Genuine Part
|
414888336 |
— | ||
|
43d
|
43d
414888337
Lame soupape *leaf-valve
|
414888337 |
— | ||
|
46a
|
46a
503189538
Lame soupape *leaf-valve 12xt0.254
|
503189538 |
— | ||
|
46b
|
46b
414888338
Lame soupape *leaf-valve
|
414888338 |
— | ||
|
46c
|
46c
414888339
New Genuine Part
|
414888339 |
— | ||
|
46d
|
46d
415038800
Lame soupape *leaf-valve
|
415038800 |
— |
