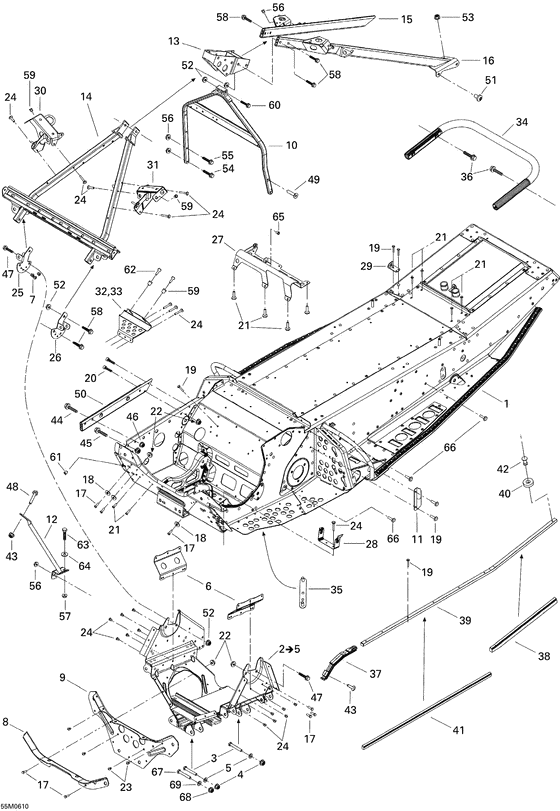

09- frame and components Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415129150
Chassis *frame service
|
415129150 |
— | ||
|
2
|
2
518325025
Traverse avant *cross member
Includes 2 to 5; |
518325025 |
— | ||
| replacement | |||||
|
2
|
2
518325438 Traverse avant *cross memberIncludes 2 to 5; |
518325438 |
US $472.23 |
||
|
3
|
3
207085544 Screw-hex.cap din.931 |
207085544 |
US $21.60 |
||
|
4
|
4
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
5
|
5
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
6
|
6
518324181 Renfort coin *corner |
518324181 |
US $18.85 |
||
|
7
|
7
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
8
|
8
518324107
Renf. plaque *plate stif.
|
518324107 |
— | ||
|
9
|
9
518324726
Plaque avant *plate-front
|
518324726 |
— | ||
| replacement | |||||
|
9
|
9
518325422 Plaque avant *plate-front |
518325422 |
US $29.53 |
||
|
10
|
10
518324505 Supp.guidon sou*handle support weld. |
518324505 |
US $193.77 |
||
|
11
|
11
518317504 Protect.cable *protect.-cable |
518317504 |
US $6.26 |
||
|
12
|
12
518323472 Croisillon soud*brace-weld |
518323472 |
US $24.45 |
||
|
13
|
13
518323854 Bloc attache *block-bracket |
518323854 |
US $73.41 |
||
|
14
|
14
518324574 Traverse sup.so*cross memb.upp.weld |
518324574 |
US $283.53 |
||
|
15
|
15
518324182 Membrure dr.sou*member-rh weld. |
518324182 |
US $102.99 |
||
|
16
|
16
518324183 Membrure ga.sou*member-lh weld. |
518324183 |
US $102.99 |
||
|
17
|
17
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
18
|
18
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
19
|
19
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
20
|
20
205051644 Screw-socket hd.din.912 |
205051644 |
US $14.35 |
||
|
21
|
21
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
22
|
22
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
23
|
23
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
24
|
24
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
25
|
25
518325014 Attache amorti.*bracket-shock rh |
518325014 |
US $17.29 |
||
|
26
|
26
518325015 Attache amorti.*bracket-shock lh |
518325015 |
US $17.29 |
||
|
27
|
27
518323532 Supp.silenc.adm*sup-intake air |
518323532 |
US $57.09 |
||
|
28
|
28
518322726 Attache gard.co*brkt-guard belt |
518322726 |
US $15.73 |
||
|
29
|
29
518323274
Attache coffre *bracket trunk
|
518323274 |
— | ||
|
30
|
30
518323535
Supp.console d*support-console rh
|
518323535 |
— | ||
|
31
|
31
518323536
Supp.console g *support-console lh
|
518323536 |
— | ||
|
32
|
32
518324391 Accroche pied d*toe hold rh |
518324391 |
US $16.29 |
||
|
33
|
33
518324392 Accroche-pied g*toe-hold lh |
518324392 |
US $17.82 |
||
|
34
|
34
518324465 Pare-chocs arr.*bumper-rear |
518324465 |
US $85.65 |
||
|
35
|
35
518323896 Attache coffre *bracket trunk |
518323896 |
US $11.49 |
||
|
36
|
36
236282084 Screw-pan hd.torx black gm6174m |
236282084 |
US $19.60 |
||
|
37
|
37
518324071
Protecteur av. *front protect.
|
518324071 |
— | ||
|
38
|
38
518325020
Protecteur *protector
|
518325020 |
— | ||
|
39
|
39
518325016 Prot. tunnel so*frame protect. weld |
518325016 |
US $43.81 |
||
|
40
|
40
510004418 Rondelle *washer |
510004418 |
US $73.30 |
||
|
41
|
41
518325017
Protecteur *protector
|
518325017 |
— | ||
|
42
|
42
390407200 Rivet-pop 3/16 *rivet-pop 3/16 |
390407200 |
US $47 |
||
|
43
|
43
390410100 Rivet-pop 3/16 *rivet-pop 3/16 |
390410100 |
US $14.50 |
||
|
44
|
44
207063044 Screw-hex.cap din.931 |
207063044 |
US $16 |
||
|
45
|
45
207161844 Screw-hex.cap din.933 |
207161844 |
US $7.70 |
||
|
46
|
46
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
47
|
47
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
48
|
48
207682544 Screw-hex.flange din.6921 |
207682544 |
US $16.30 |
||
|
49
|
49
205862044 Screw-socket ctsk.din.7991 s.grip |
205862044 |
US $21.28 |
||
|
50
|
50
518324096 Raidisseur *stiffener |
518324096 |
US $51.97 |
||
|
51
|
51
250000154 Screw-pan hd.torx m8 x 13 |
250000154 |
US $19.60 |
||
|
52
|
52
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
53
|
53
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
54
|
54
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
55
|
55
207663544 Screw-hex.flange din.6921 |
207663544 |
US $29.25 |
||
|
56
|
56
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
57
|
57
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
58
|
58
207683544 Screw-hex.flange din.6921 |
207683544 |
US $21.80 |
||
|
59
|
59
415107300
Ajout *insert
|
415107300 |
— | ||
|
60
|
60
207687044 Screw-hex.flange din.6921 |
207687044 |
US $9.45 |
||
|
61
|
61
293450166 Ajout *insert |
293450166 |
US $5.71 |
||
|
62
|
62
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
63
|
63
207161444 Screw-hex.cap din.933 |
207161444 |
US $7.50 |
||
|
64
|
64
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
65
|
65
293450232 Ajout *insert |
293450232 |
US $4.05 |
||
|
66
|
66
518321954 Attache panneau*panel-fastener |
518321954 |
US $48.05 |
||
|
67
|
67
207085544 Screw-hex.cap din.931 |
207085544 |
US $21.60 |
||
|
68
|
68
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
69
|
69
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
