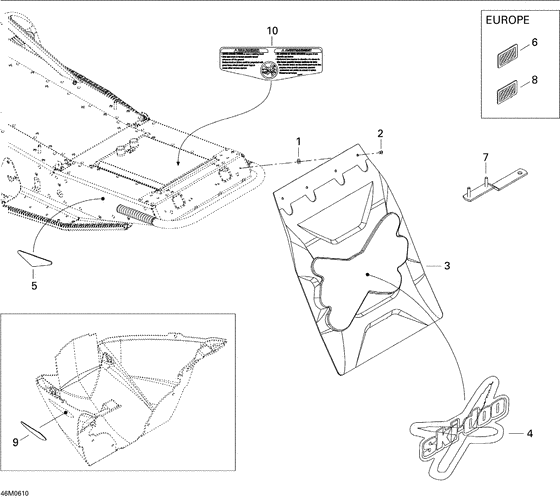

09- utilities Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
2
|
2
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
3
|
3
520000424 Garde-neige *snow guard |
520000424 |
US $102.99 |
||
|
4
|
4
516002380
Decalque *sticker
|
516002380 |
— | ||
|
5
|
5
520000237 Reflect. arr. *reflector-rear |
520000237 |
US $16.76 |
||
|
5
|
5
520000311 Reflect. arr. *rear reflectorEurope; |
520000311 |
US $16.76 |
||
|
6
|
6
520000271 Reflecteur amb.*reflector-amberEurope; |
520000271 |
US $16.76 |
||
|
7
|
7
520000126 Cle de regl.sou*wrench-adjust.weld. |
520000126 |
US $11.17 |
||
|
8
|
8
415037900 Reflecteur *reflectorEurope; |
415037900 |
US $18.85 |
||
|
9
|
9
516001336 Reflecteur av.flector-front |
516001336 |
US $19.33 |
||
|
10
|
10
516003034 Security label |
516003034 |
US $0.02 |
