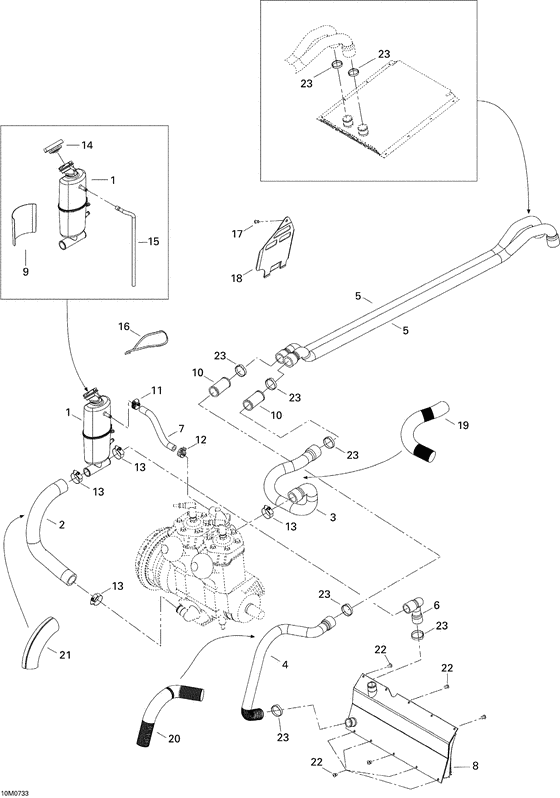

01- cooling system Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000410 Res.antigel *tank-coolant |
509000410 |
US $84.61 |
||
|
2
|
2
509000135 Boyau entre mot*hose-inlet eng |
509000135 |
US $41.77 |
||
|
3
|
3
509000220 Boyau sort.mot.*engine hose out. |
509000220 |
US $41.77 |
||
|
4
|
4
509000222 Boyau entre rad*rad.hose-inlet |
509000222 |
US $47.91 |
||
|
5
|
5
509000223 Boyau entre rad*rad.hose-inlet |
509000223 |
US $92.77 |
||
|
6
|
6
509000266 Boyau sort.rad.*hose-out.rad. |
509000266 |
US $28.51 |
||
|
7
|
7
509000093
Boyau 8mm *hose-8mm
|
509000093 |
— | ||
|
8
|
8
509000391
Radiateur av.s.*front rad.-weld.
|
509000391 |
— | ||
|
9
|
9
509000190 Feuille reflect*reflectrice sheet |
509000190 |
US $9.13 |
||
|
10
|
10
509000224 Raccord *fitting |
509000224 |
US $16.42 |
||
|
11
|
11
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
12
|
12
414655700 Bride a ressort*clamp-spring |
414655700 |
US $9.50 |
||
|
13
|
13
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
14
|
14
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
||
|
15
|
15
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
16
|
16
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
17
|
17
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
18
|
18
509000257 Deflecteur *deflector |
509000257 |
US $11.49 |
||
|
19
|
19
409902200 Gaine 25mm *tubing-25mm |
409902200 |
US $15.73 |
||
|
20
|
20
409902200 Gaine 25mm *tubing-25mm |
409902200 |
US $15.73 |
||
|
21
|
21
515176260 Gaine 35mm *tubing-35mm |
515176260 |
US $10.47 |
||
|
22
|
22
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
23
|
23
509000045 Bride serrage *clamp-gear |
509000045 |
US $104.70 |
