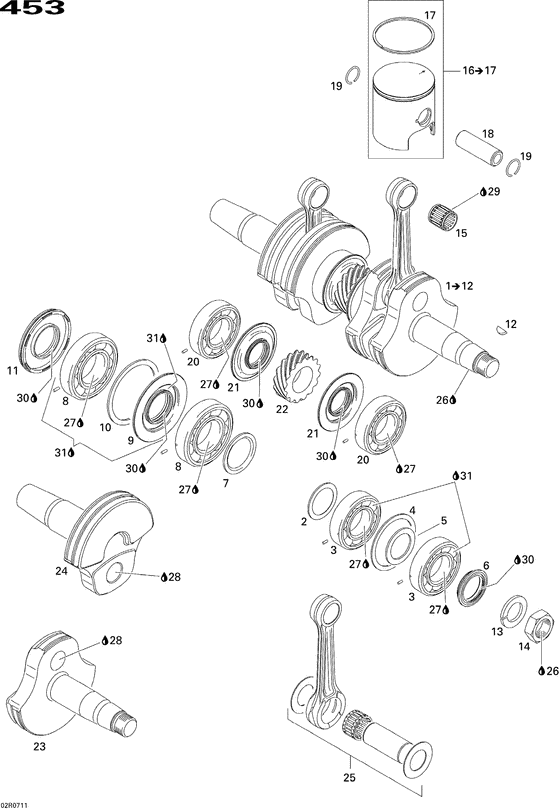

01- crankshaft and pistons Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420888257 Vilebrequin *crankshaftIncludes 1 to 12; |
420888257 |
US $1,748.26 |
||
|
2
|
2
420827445 Bague ecart. *ring-distance |
420827445 |
US $8.13 |
||
|
3
|
3
420832590 Roulement bille*ball bearing |
420832590 |
US $53.72 |
||
|
4
|
4
420827050 Disque retenue *disk-retaining |
420827050 |
US $7 |
||
|
5
|
5
420427684 Rondelle ajus *washer-adj. |
420427684 |
US $8.13 |
||
|
6
|
6
420931790
Anneau etanche *seal-oil
|
420931790 |
— | ||
|
7
|
7
420827760 Bague ecart. *ring-distance |
420827760 |
US $7 |
||
|
8
|
8
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
9
|
9
420931455 Anneau etanche *seal-oil |
420931455 |
US $39.07 |
||
|
10
|
10
420927710 Disque retenue *disk-retaining |
420927710 |
US $9.45 |
||
|
11
|
11
420831952 Anneau etanche *seal-oil |
420831952 |
US $19.43 |
||
|
12
|
12
420246015 Clavette *key-woodruff |
420246015 |
US $3.60 |
||
|
13
|
13
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
US $24.50 |
||
|
14
|
14
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
15
|
15
420832439
Roul.aiguille *needle bearing
|
420832439 |
— | ||
|
16
|
16
420888333 Piston 64,88 *piston-assy 64,88Includes 16 to 17; |
420888333 |
US $183.57 |
||
|
17
|
17
420815145 Segment semi-tr*ring-semi trap |
420815145 |
US $71.35 |
||
|
18
|
18
420916136 Axe de piston *pin-piston |
420916136 |
US $21.39 |
||
|
19
|
19
420945735 Circlip piston *circlip-piston |
420945735 |
from US $3.20 |
||
|
20
|
20
420832590 Roulement bille*ball bearing |
420832590 |
US $53.72 |
||
|
21
|
21
420931940 Anneau etanche *seal-oil |
420931940 |
US $34.10 |
||
|
22
|
22
420834350 Engrenage cent.*gear-central |
420834350 |
US $92.77 |
||
|
23
|
23
420818694 Vilebrequin mag*crankshaft-mag |
420818694 |
US $244.77 |
||
|
24
|
24
420818664
Vilebrequin pto*crankshaft-pto
|
420818664 |
— | ||
|
25
|
25
420888258 Ens.tige rep. *kit-rod repair |
420888258 |
US $428.37 |
||
|
25
|
25
420888259 Ens.tige rep. *kit-rod repair |
420888259 |
US $479.37 |
||
|
26
|
26
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
27
|
27
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
28
|
28
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
29
|
29
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| replacement | |||||
|
29
|
29
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
US $15.64 |
||
|
30
|
30
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
|
31
|
31
293550021 Graisse isoflex*grease-isoflex |
293550021 |
US $70.19 |
||
