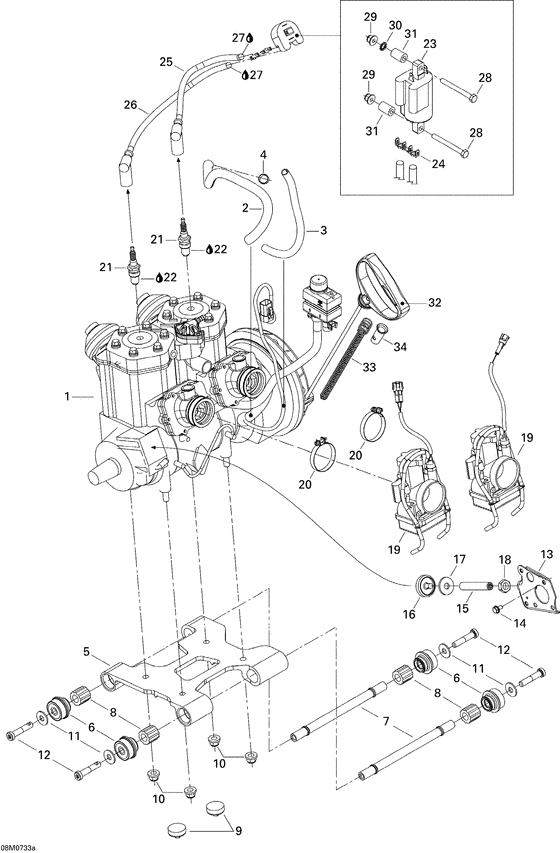

01- engine 1 Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400409438
Moteur 453 *engine-453
|
400409438 |
— | ||
|
1
|
1
400409439
Moteur 453 *engine-453
Europe; |
400409439 |
— | ||
|
2
|
2
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
3
|
3
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
4
|
4
293740005
Ruban de vinyl 3/4
|
293740005 |
— | ||
|
5
|
5
512060051 Socle *engine support |
512060051 |
US $178.47 |
||
|
6
|
6
512059777 Tampon ancrage *rubber mount |
512059777 |
US $51.97 |
||
|
7
|
7
512059776 Tige filete *rod threaded |
512059776 |
US $35.65 |
||
|
8
|
8
512059781
Amort.caoutc. *damper
|
512059781 |
— | ||
|
9
|
9
512059738 Butee *stopper |
512059738 |
US $21.39 |
||
|
10
|
10
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
11
|
11
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
12
|
12
250000252 Screw-torx tin *ead m10 x 50 |
250000252 |
US $3.01 |
||
|
13
|
13
512059840 Plaque app.pein*plate-paint |
512059840 |
US $39.73 |
||
|
14
|
14
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
15
|
15
250500007 Vis d arret *screw-stopper |
250500007 |
US $27.49 |
||
|
16
|
16
512059741
Butee *stopper
|
512059741 |
— | ||
|
17
|
17
512059775
Rondelle *washer
|
512059775 |
— | ||
|
18
|
18
232170411 Nut-jam hexagonal din.439b |
232170411 |
US $9.60 |
||
|
19
|
19
403138795 Carb.tmx-34 pto*carb-tmx-34 pto |
403138795 |
US $643.59 |
||
|
19
|
19
403138799
Carburateur *carburator
Europe; |
403138799 |
— | ||
|
20
|
20
512059834 Bride *clamp |
512059834 |
US $11.90 |
||
|
21
|
21
512059552 Bougie br9ecs-5*plug-spark br9ecs-5 |
512059552 |
US $116.80 |
||
|
22
|
22
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
23
|
23
512059968 Bobine allumage*coil-ignition |
512059968 |
US $61.15 |
||
|
24
|
24
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
25
|
25
512059695 Cable ass.300mm*cable-assy 300mm |
512059695 |
US $53.01 |
||
|
26
|
26
512059696 Cable ass.375mm*cable-assy 375mm |
512059696 |
US $80.55 |
||
|
27
|
27
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
28
|
28
207066044 Screw-hex.cap din.931 |
207066044 |
US $21.75 |
||
|
29
|
29
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
30
|
30
394001900 Washer-lock ext.tooth |
394001900 |
US $10 |
||
|
31
|
31
517203200 Entretoise *spacer |
517203200 |
US $181.20 |
||
|
32
|
32
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
33
|
33
512059535 Guide corde *guide-rope |
512059535 |
US $13.45 |
||
|
34
|
34
512059536 Tube *tube |
512059536 |
US $11.17 |
