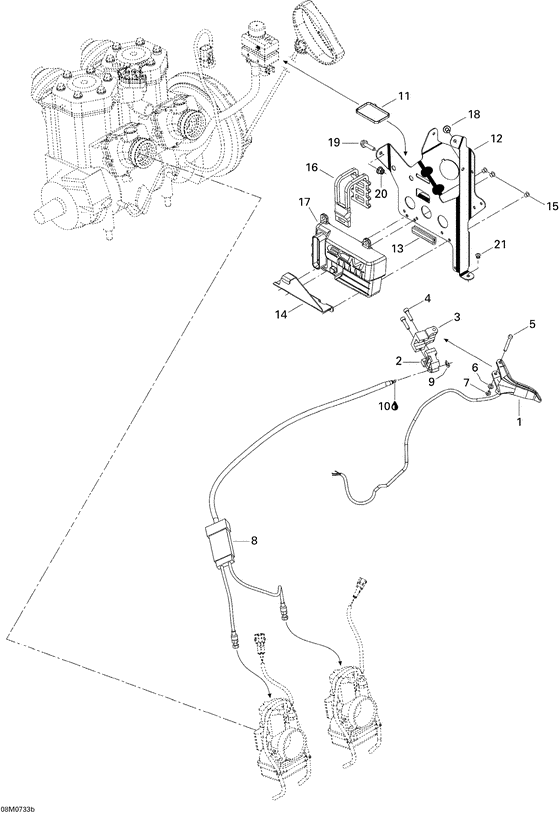

01- engine 2 Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
512060214 Manette ass. *handle-assy |
512060214 |
US $55.03 |
||
|
2
|
2
512059537 Logement inf. *hous.-lower |
512059537 |
US $69.33 |
||
|
3
|
3
512059538 Logement supe. *housing-upper |
512059538 |
US $69.33 |
||
|
4
|
4
205052544 Screw-socket hd.din.912 |
205052544 |
US $21.40 |
||
|
5
|
5
414438700 Goupille levier*pin-lever |
414438700 |
US $53.65 |
||
|
6
|
6
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
7
|
7
293370050 Anneau retenue *circlip |
293370050 |
US $3 |
||
|
8
|
8
512059742
Cable accelerat*throttle cable
|
512059742 |
— | ||
|
9
|
9
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
10
|
10
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
11
|
11
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
12
|
12
512060141 Support ecm . *supp-ecm |
512060141 |
US $74.41 |
||
|
13
|
13
271000110 Moul.protect. *trim-protect. |
271000110 |
US $22.93 |
||
|
14
|
14
518324951
Plaque attache *plate
|
518324951 |
— | ||
|
15
|
15
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
16
|
16
570069700
Loquet *latch
|
570069700 |
— | ||
|
17
|
17
512060235
Module calibre *calib. module
|
512060235 |
— | ||
|
18
|
18
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
19
|
19
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
20
|
20
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
21
|
21
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
