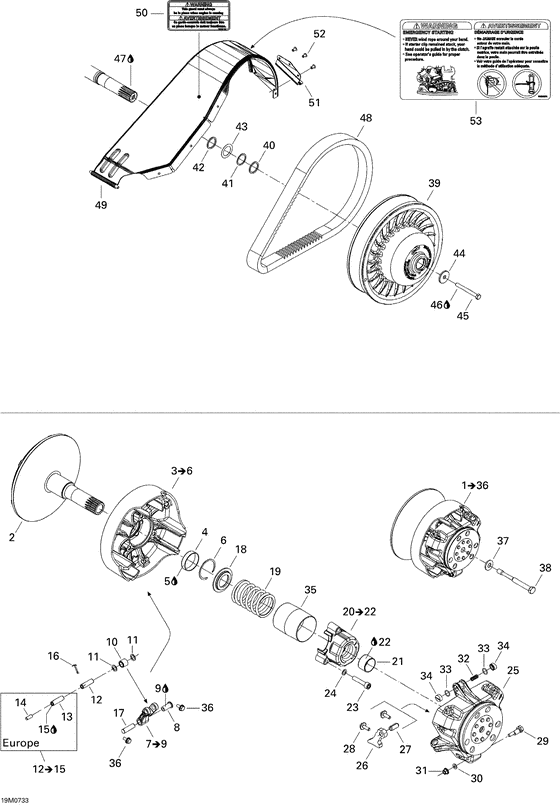

05- pulley system Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
417222742 Flasque fixe as*fix flange ass |
417222742 |
US $426.33 |
||
|
3
|
3
417222620 Flasque coul.as*flange-slid.assyIncludes 3 to 6; |
417222620 |
US $350.85 |
||
|
4
|
4
417222758 Douille *bushing |
417222758 |
US $24.82 |
||
|
5
|
5
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
6
|
6
293370037 Anneau retenue *circlip |
293370037 |
US $3.64 |
||
|
7
|
7
417222671 Levier ass. *lever-assyIncludes 7 to 9; |
417222671 |
US $54.71 |
||
|
8
|
8
417222633
Douille
|
417222633 |
— | ||
|
9
|
9
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
10
|
10
417222762
Rouleau ass. *roller-ass.
|
417222762 |
— | ||
| replacement | |||||
|
10
|
10
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
11
|
11
417004302 Rondelle butee *washer-stopper |
417004302 |
US $18.72 |
||
|
12
|
12
417222707
Goupille
North America; |
417222707 |
— | ||
|
13
|
13
417222595 Goupille *pinEurope; |
417222595 |
US $67.17 |
||
|
14
|
14
206260699 Screw-set socket din.913Europe; |
206260699 |
US $14.37 |
||
|
15
|
15
293800060 Loctite 243 *loctite-243Europe; |
293800060 |
US $31.18 |
||
|
16
|
16
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
17
|
17
417009202 Axe de levier *axle-lever |
417009202 |
US $4.79 |
||
| replacement | |||||
|
17
|
17
417223164 LEVER AXLE |
417223164 |
US $4.81 |
||
|
18
|
18
417222312 Siege ressort *seat-spring |
417222312 |
US $9.50 |
||
|
19
|
19
417222164 Ressort bl /ar *spring-wh/arEurope; |
417222164 |
US $35.65 |
||
|
19
|
19
417222958 Ressort gr/gr *spring-gre/greNorth America; |
417222958 |
US $38.71 |
||
|
20
|
20
417007500 Couv.ressort as*cover-spring assy.Includes 20 to 22; |
417007500 |
US $44.83 |
||
|
21
|
21
417009204 Douille *bushing |
417009204 |
US $19.52 |
||
|
22
|
22
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
23
|
23
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
24
|
24
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
25
|
25
417222622
Cuvette regul.a*govern.cup as
|
417222622 |
— | ||
|
26
|
26
417222676 Rampe 427 *ramp 427 |
417222676 |
US $100.83 |
||
|
27
|
27
250400009
Goupille ress. *pin-rolled
|
250400009 |
— | ||
| replacement | |||||
|
27
|
27
250400050 SPRING PIN M10 |
250400050 |
US $11.88 |
||
|
28
|
28
250000059 Screw-hex.flange m6 x 18 |
250000059 |
US $3.89 |
||
|
29
|
29
417222955 Vis calibration*screw-calib. |
417222955 |
US $35.07 |
||
|
30
|
30
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
31
|
31
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
32
|
32
417005700 Ressort *spring |
417005700 |
US $5.25 |
||
|
33
|
33
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
|
34
|
34
417222362
Glissiere *shoe-slider
|
417222362 |
— | ||
| replacement | |||||
|
34
|
34
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
35
|
35
417009205 Protecteur *guard |
417009205 |
US $19.31 |
||
|
36
|
36
210361296
Screw-forming hex.hd.black oxide
|
210361296 |
— | ||
| replacement | |||||
|
36
|
36
250000412 SERRATED HEX. FLANGE BOLT S.GR |
250000412 |
US $32.76 |
||
|
37
|
37
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
38
|
38
417120000 Boulon *bolt-pulley drive |
417120000 |
US $72.30 |
||
|
39
|
39
417127064 Poulie menee as*pulley-driven |
417127064 |
US $756.81 |
||
|
40
|
40
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
41
|
41
417300265 Entretoise *spacer |
417300265 |
US $14.20 |
||
|
42
|
42
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
43
|
43
504112000 Cale epaisseur *shim |
504112000 |
US $30.35 |
||
|
44
|
44
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
45
|
45
207089044 Screw-hex.cap din.931 |
207089044 |
US $22.35 |
||
|
46
|
46
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
47
|
47
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
48
|
48
417300288 Courroie *drive belt |
417300288 |
US $220.29 |
||
|
49
|
49
417300332 Garde courroie *belt guard |
417300332 |
US $84.61 |
||
|
50
|
50
516002670 Etiquette secur*security-label |
516002670 |
US $0.02 |
||
|
51
|
51
417300216 Attache gard.co*belt guard brkt |
417300216 |
US $8.13 |
||
|
52
|
52
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
53
|
53
516002674 Etiquette secur*security-label |
516002674 |
US $0.02 |
||
