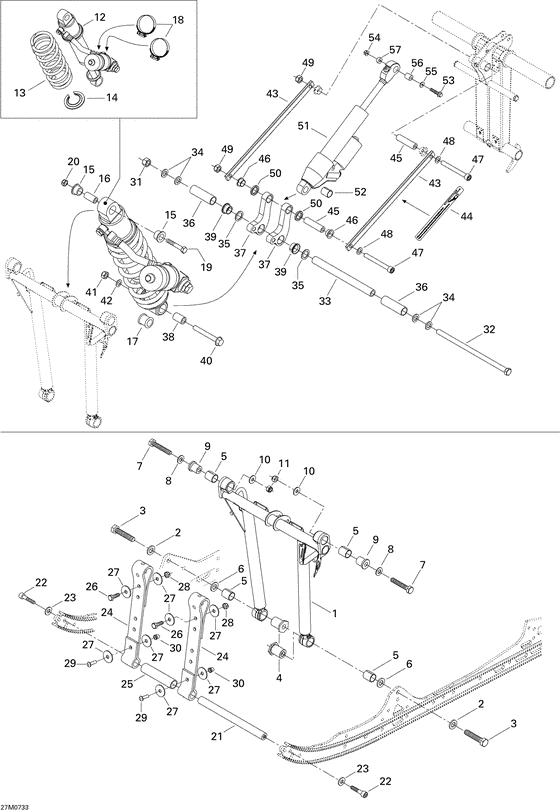

08- front arm Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503191536 Bras avant p. *front arm p. |
503191536 |
US $397.77 |
||
|
2
|
2
503189148 Rondelle *washer |
503189148 |
US $18.30 |
||
|
3
|
3
250000225
Screw-hex.cap s.grip m12 x 35
|
250000225 |
— | ||
|
4
|
4
503190727
Axe *axle
|
503190727 |
— | ||
|
5
|
5
503190974 Coussinet *bushing |
503190974 |
US $9.78 |
||
|
6
|
6
503190656 Rondelle *washer |
503190656 |
US $19.15 |
||
|
7
|
7
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
8
|
8
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
9
|
9
503190698 Axe *axle |
503190698 |
US $20.45 |
||
|
10
|
10
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
11
|
11
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
12
|
12
503190582
Amort. cent *shock-cent
|
503190582 |
— | ||
|
13
|
13
503191019 Ressort peint *spring-paint |
503191019 |
US $58.09 |
||
|
14
|
14
503190271 Butee ressort *stopper-spring |
503190271 |
US $12.19 |
||
|
15
|
15
503189117 Coussinet ureth*cushion-ureth. |
503189117 |
US $9.69 |
||
|
16
|
16
503189282 Douille *bushing |
503189282 |
US $5.61 |
||
|
17
|
17
503189271 Coussinet ureth*cushion-ureth. |
503189271 |
US $13.24 |
||
|
18
|
18
293650035 Bride serrage *clamp-tridon |
293650035 |
US $47.75 |
||
|
19
|
19
207005044 Screw-hex.cap iso.4014 |
207005044 |
US $38.90 |
||
|
20
|
20
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
21
|
21
503191260 Axe *axle |
503191260 |
US $28.80 |
||
|
22
|
22
205503544 Screw-socket din.912 s.grip |
205503544 |
US $21.80 |
||
|
23
|
23
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
24
|
24
503190782 Courroie arret *stopper strap |
503190782 |
US $19.57 |
||
|
25
|
25
503189265 Entretoise *spacer |
503189265 |
US $4.40 |
||
|
26
|
26
207682544 Screw-hex.flange din.6921 |
207682544 |
US $16.30 |
||
|
27
|
27
224081301 Washer-flat |
224081301 |
US $28.50 |
||
|
28
|
28
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
29
|
29
293150148 Rivet huck |
293150148 |
US $0.94 |
||
|
30
|
30
293150149 Collet huck |
293150149 |
US $0.60 |
||
|
31
|
31
232021416 Nut-hexagonal iso 4032 |
232021416 |
US $30 |
||
|
32
|
32
250000229 Screw-hex.cap m*12 x 252 |
250000229 |
US $16.07 |
||
|
33
|
33
503191047 Axe .cen std *shaft- cen std |
503191047 |
US $82.57 |
||
|
34
|
34
503189148 Rondelle *washer |
503189148 |
US $18.30 |
||
|
35
|
35
503190697 Rondelle *washer |
503190697 |
US $10.90 |
||
|
36
|
36
503190600 Entretoise *spacer |
503190600 |
US $12.19 |
||
|
37
|
37
503190601 Culbuteyr *rocker arm |
503190601 |
US $51.97 |
||
|
38
|
38
503190604 Douille *bushing |
503190604 |
US $11 |
||
|
39
|
39
503190605 Coussinet *cushion |
503190605 |
US $9.78 |
||
|
40
|
40
207608044 Screw-hex.flange din.6921 |
207608044 |
US $3.83 |
||
|
41
|
41
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
42
|
42
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
43
|
43
503190644 Tige accoup. *tie rod |
503190644 |
US $34.65 |
||
|
44
|
44
516001790
Decalque *decal
|
516001790 |
— | ||
|
45
|
45
503191192 Axe barre *axle-bar |
503191192 |
US $36.69 |
||
|
46
|
46
506150200
Coussinet pivot*swivel-bushing
|
506150200 |
— | ||
|
47
|
47
205009044 Screw-socket hd.din.912 |
205009044 |
US $9.45 |
||
|
48
|
48
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
49
|
49
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
50
|
50
503190694 Entretoise *spacer |
503190694 |
US $1.97 |
||
|
51
|
51
503190581 Amort. arr. *shock-rear |
503190581 |
US $1,150.54 |
||
|
52
|
52
503190706 Coussinet *bushing |
503190706 |
US $9.78 |
||
|
53
|
53
207085586 Screw-hex.cap din.931 |
207085586 |
US $9.45 |
||
|
54
|
54
233281416 Nut-flange elastic din.6926 |
233281416 |
US $19.20 |
||
|
55
|
55
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
56
|
56
414936000 Coussinet *cushion |
414936000 |
US $14.25 |
||
|
57
|
57
503190526 Entretoise *spacer |
503190526 |
US $9.84 |
